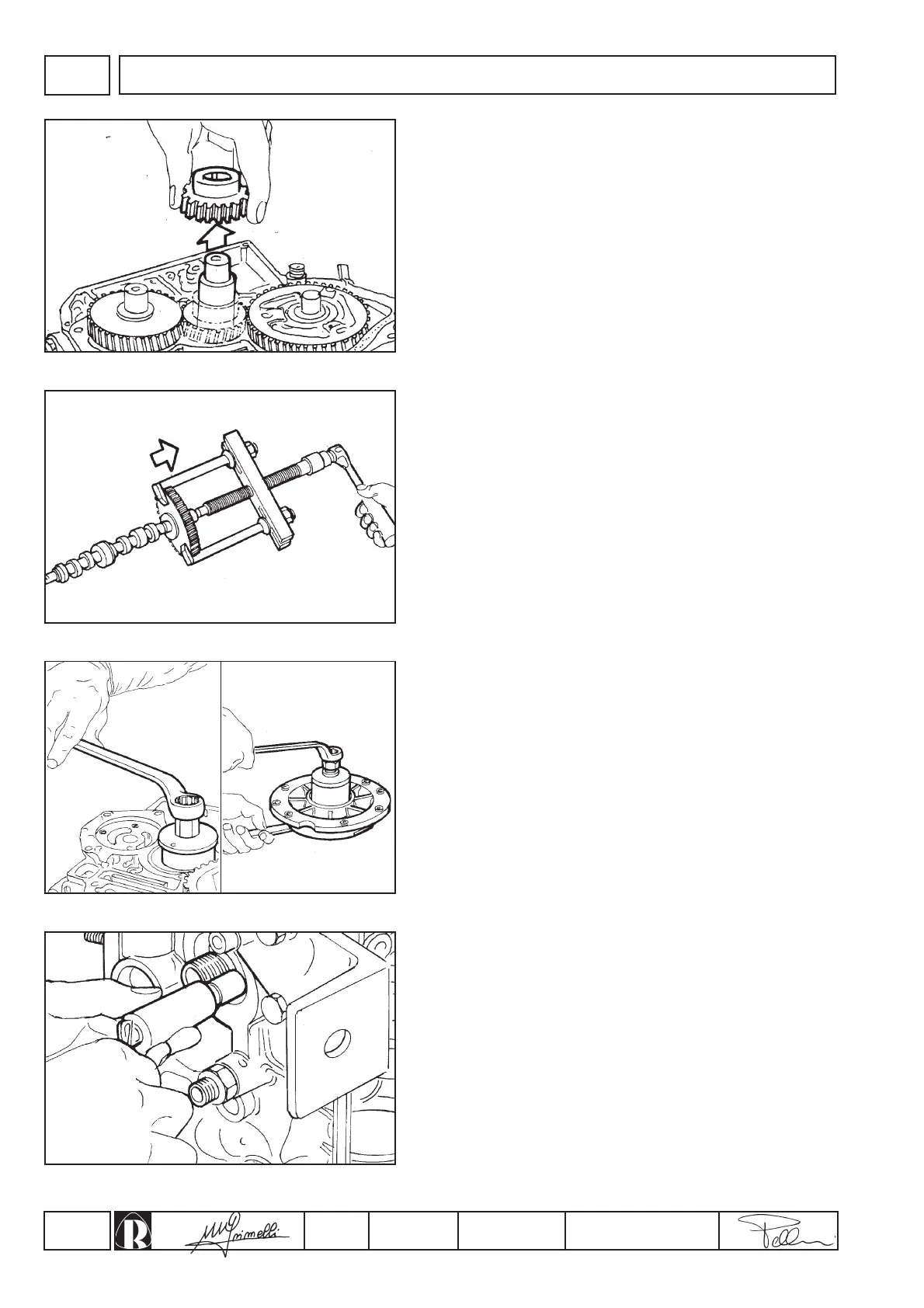

Extraction of crankshaft gear
The gear can be removed manually as shown in figure 5.
Extraction of the camshaft gear
Use the extractor code 00365R0010 (fig.6)
Extracting crankcase bushes
From crankcase (fig. 7)
From main bearing (fig. 8)
Use extractor code 00366R0060
Extracting the oil pressure indicator plug
Remove the oil filter and extract the by-pass valve using the extractor
00365R0880 (fig.9).
DISASSEMBLY OF THE ENGINE
