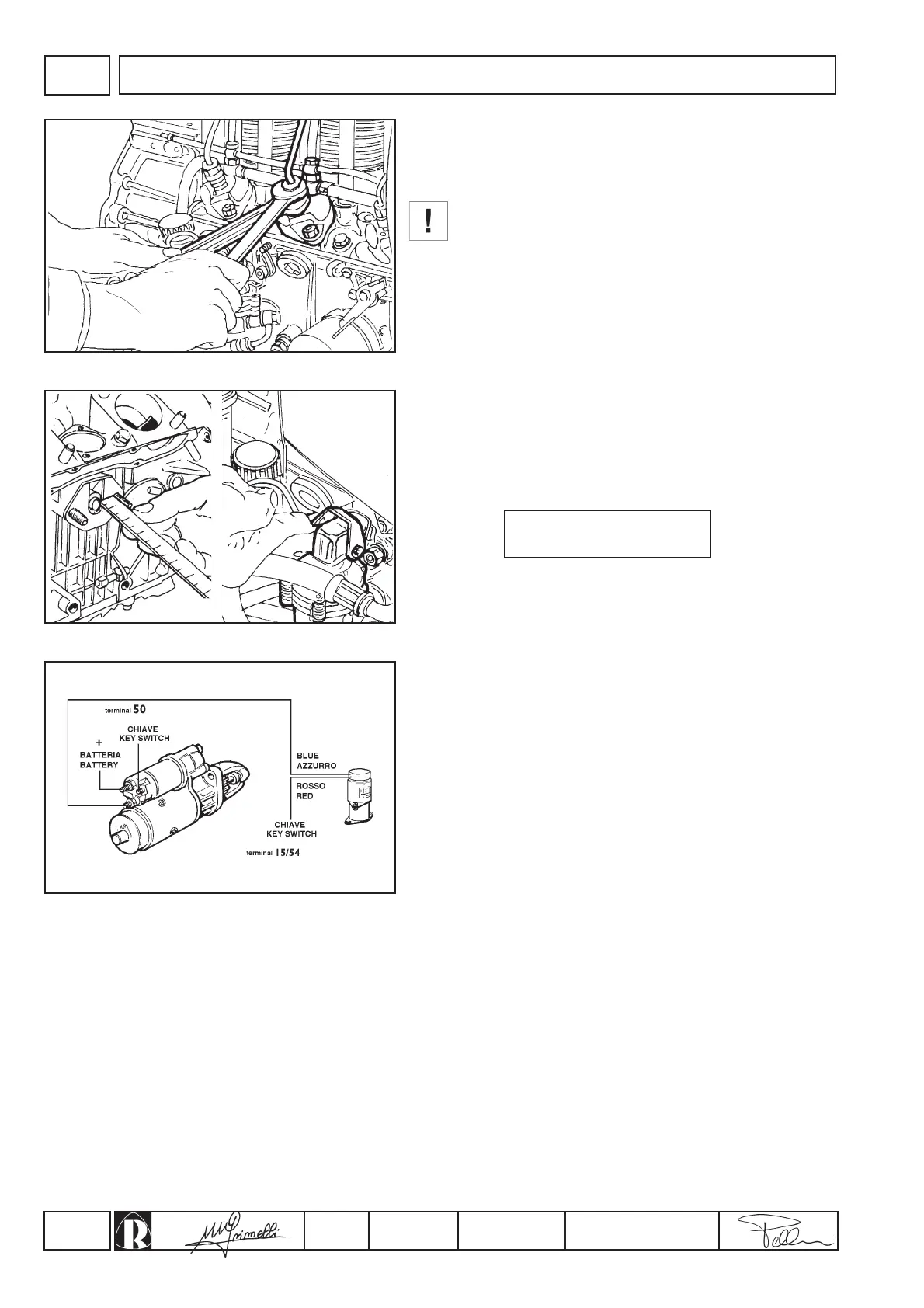

ENGINE ASSEMBLY
Injectors and injector pipes
Mount injectors to heads placing copper gaskets in between (see
pag. 36).
Connect the injectors to the pumps by way of the injection lines.
Important: always use two wrenches to loosen or tighten
the unions on the injector pipes (fig.90) thereby ensuring
that the position of the delivery valve holder on the pumps
is not changed (see pag.27).
4.With the fuel feed pump cam in the rest position mount the
pump and actuate it manually (fig. 92).
Electric shut off
If the engine is equipped with an electric shut off, insert the electro-
magnet into the crankcase taking care to position the engine shut-
off lever in the STOP position; make sure that the injection pump
connection lever moves freely along its entire stroke.
Make the electrical connections as shown in diagram 93.
Feed pump
1.Insert the fuel feed pump tappet into its housing and make sure
that it moves freely.
2.Fit the 0.2 and 1mm adjustment gaskets.
3.With the fuel pump excenter in rest position the tappet should
protrude from the gasket surface (fig. 91) by:
