41
COMPILER TECO/ATI ENDORSEDDATE
14.07.2003
REG. CODE
1-5302-612
MODEL N°
50894
DATE OF ISSUE
07-03
REVISION 00
XV
101
100
102
STORAGE
Storage
Prepare engines as follows for storage over 30 days
Temporary protection (1/6 months)
• Let engine run at idling speed in no-load conditions for 15
minutes.
• Fill crankcase with protection oil MIL-1-644-P9 and let engine
run at 3/4 full speed for 5/10 minutes.

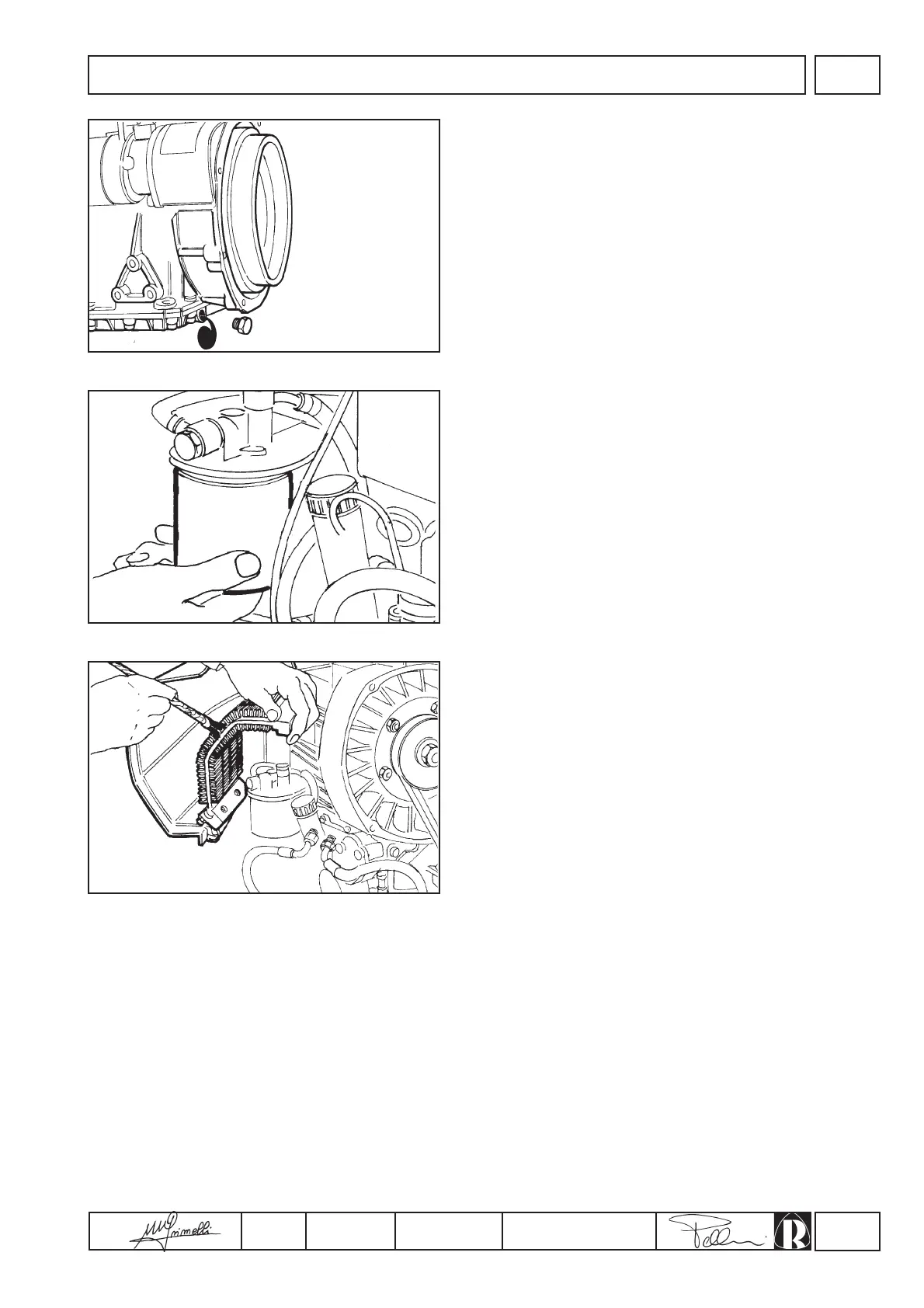

• When engine is warm empty oil pan and fill with standard new
oil (fig. 100)
• Remove fuel tube and empty the tank
• Remove fuel filter, replace cartridge if dirty and refit (fig. 101).
• Carefully clean cylinder fins, heads and fan (fig. 102).
• Seal all openings with tape.
• Remove injectors, pour a spoonful of oil type SAE 30 into the
cylinders and rotate manualy to distribute the oil. Refit injectors.
• Spray oil type SAE 10W into exhaust and intake manifolds,
rocker arms, valves, tappet etc. Grease all unpainted parts.
• Loosen belt
• Wrap the engine in a plastic film.
• Store in a dry place, if possible not directly on the soil and far
from high voltage electric lines.
Permanent protection (over 6 months)
• The following is recommended apart from the above
instructions:
• For the lubrication and injection system as well as for moving
parts use rustproof oil type MIL-L-21260 P10 grade 2, SAE 30
(Ex. ESSO RUST - BAN 623 - AGIP, RUSTIA C. SAE 30) Let the
engine run with rustproof oil and drain any excess.
• Coat external unpainted surfaces with antirust type MIL-C-
16173D - grade 3 /Ex. ESSO RUST BAN 398 - AGIP, RUSTIA
100/F).
How to prepare the engine for operation
• Clean engine outside
• Remove protections and covers
• Remove antirust with an appropriate solvent or degreaser.
• Remove injector, fill with standard oil, turn crankshaft by a few
revolutions, remove oil pan and drain the protective oil.
