7. Insert the coupling side (radial) impeller wear ring over the impeller from the coupling side.

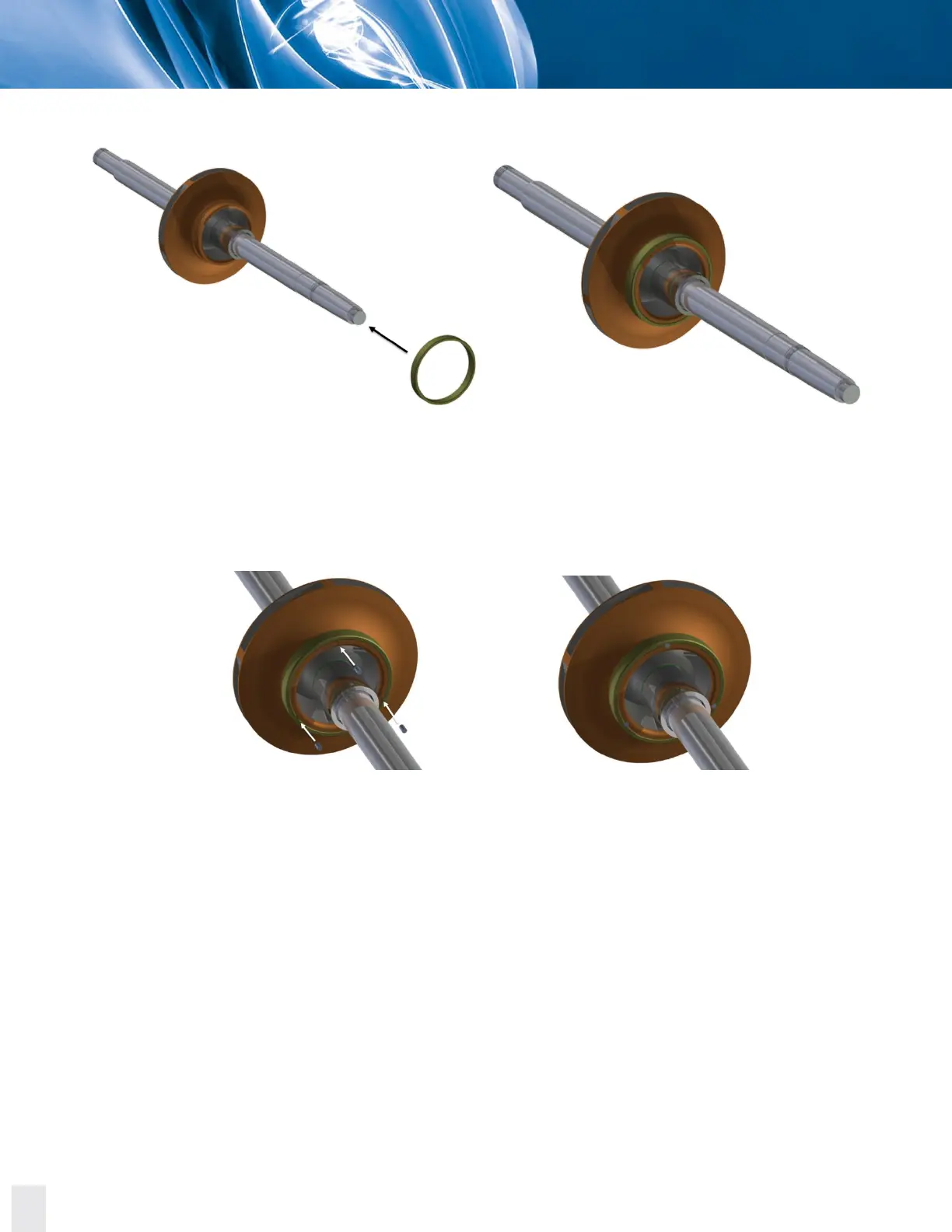

Figure 8.7. Inserting the coupling side (radial) impeller wear ring on the impeller from the coupling side.
8. Fix the coupling side (radial) impeller wear ring to the impeller by matching the set screw
holes of the impeller wear ring with the ones in the impeller and insert the set screws to fix
the impeller wear ring.
Figure 8.8. Securing the coupling side (radial) impeller wear ring to the impeller with the set screws.
