J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
64 V1.032818
9. Insert the non-coupling side (axial) impeller wear ring over the impeller from the non-
coupling side.

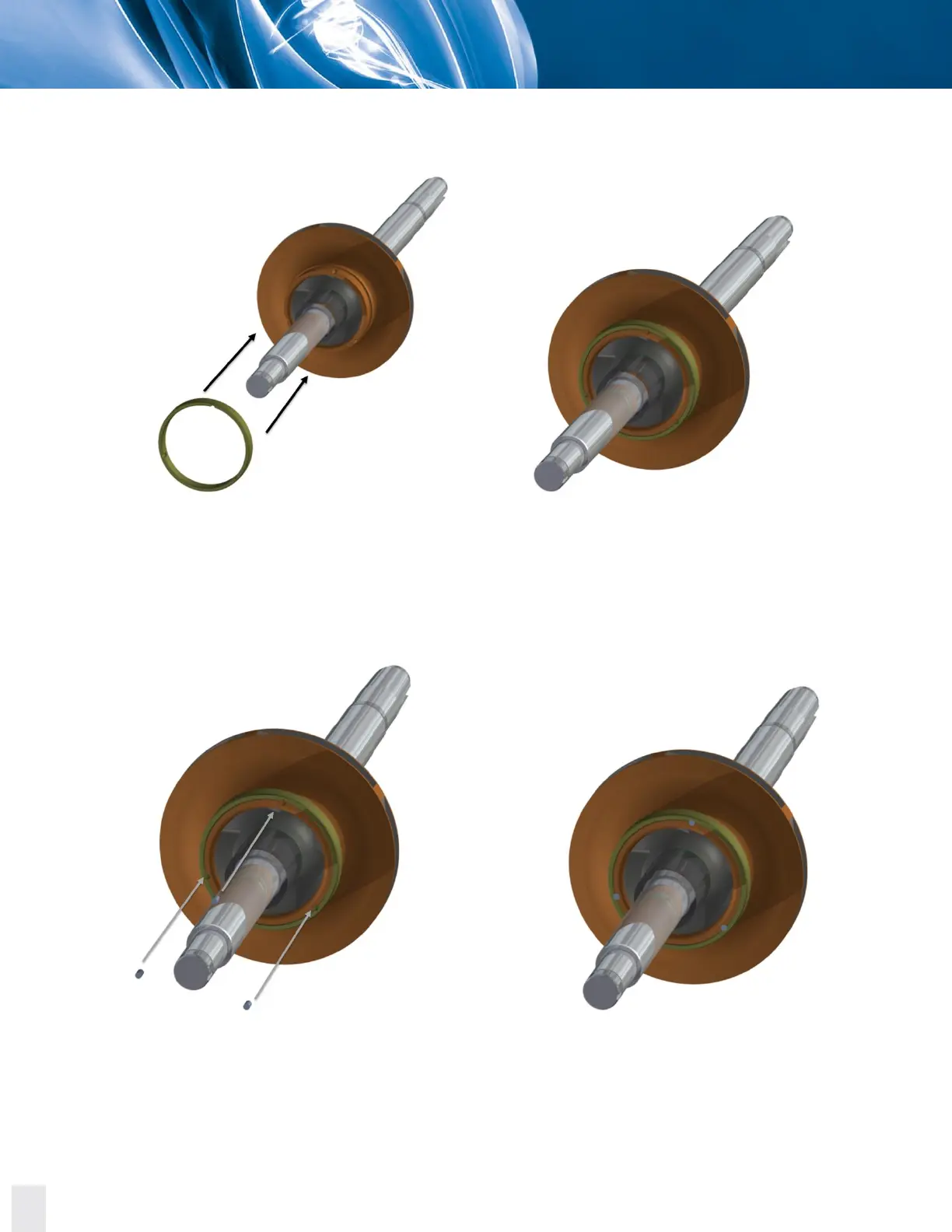

Figure 8.9 Inserting the non-coupling side (axial) impeller wear ring on the impeller from the non-coupling side.
10. Fix the non-coupling side (axial) impeller wear ring to the impeller by matching the set screw
holes of the impeller wear ring with the ones in the impeller and insert the set screws to fix
the impeller wear ring.
Figure 8.10. Securing the non-coupling side (axial) impeller wear ring to the impeller with the set screws.
