13. Insert the rotor assembly into the case from the non-coupling side.

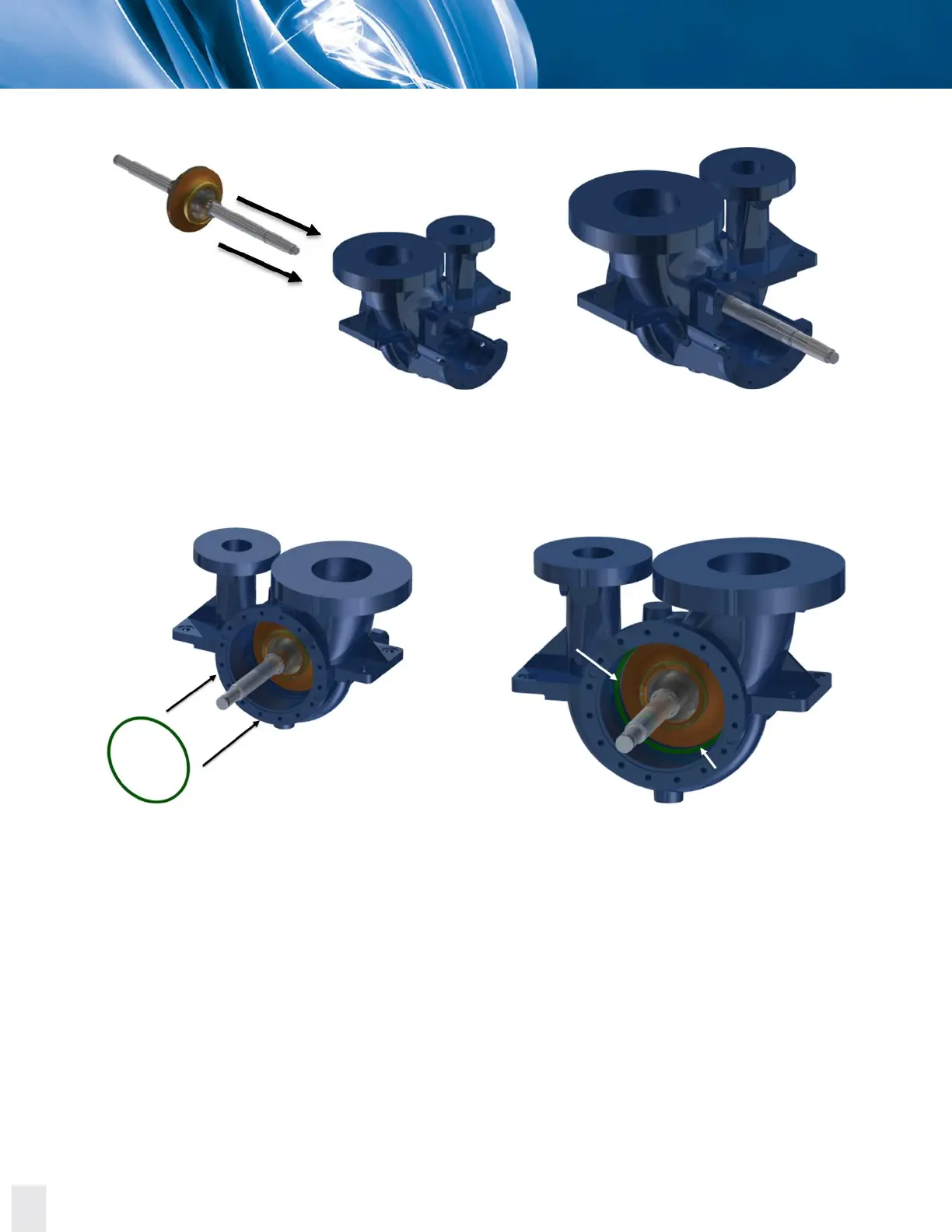

Figure 8.13. Inserting the rotor assembly into the case from the non-coupling side.
14. Insert the case gasket over the shaft from the non-coupling side until it reaches the inner
shoulder of the case.
Figure 8.14. Inserting the case gasket over the shaft from the non-coupling side.
