CASE COVER
15. Place the casing cover gasket on the casing cover.

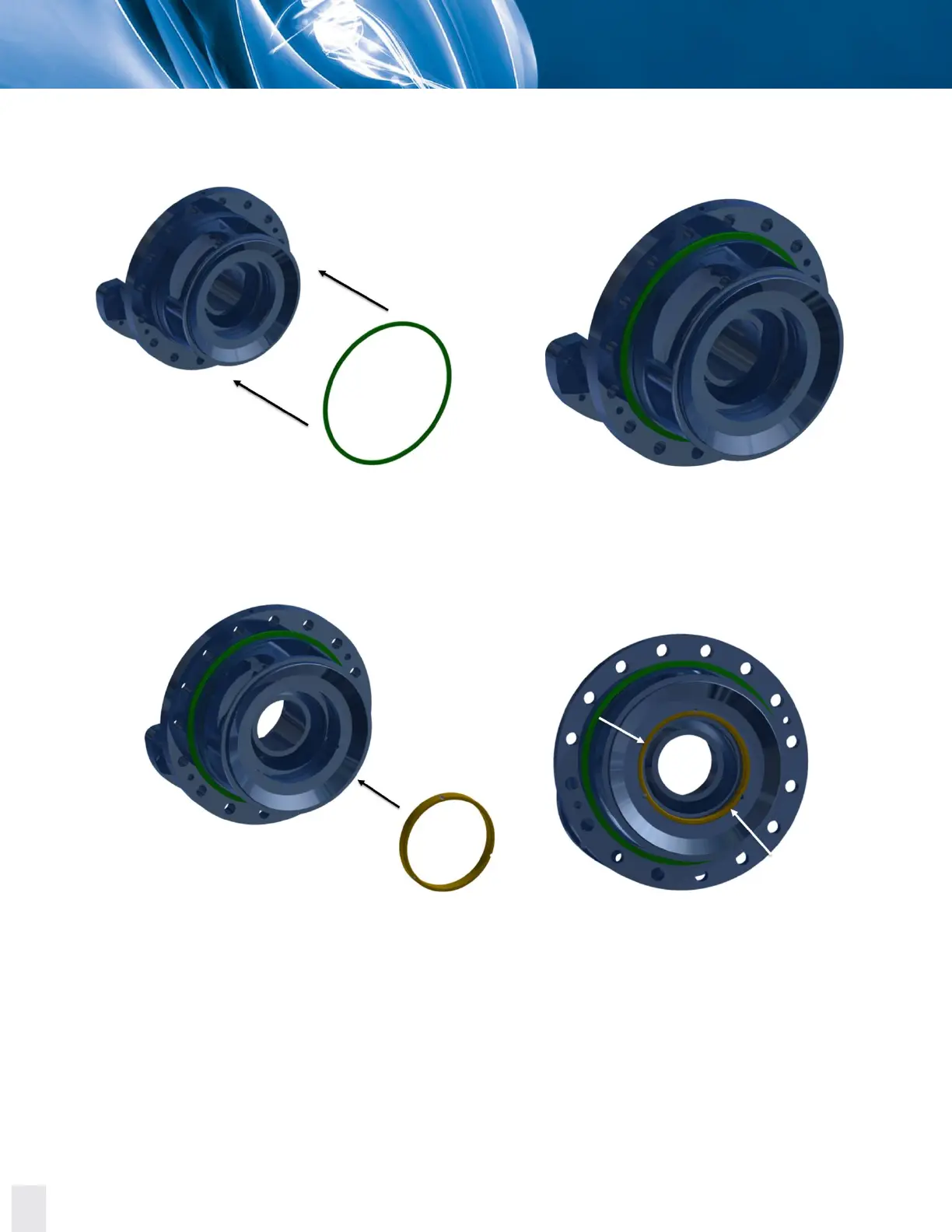

Figure 8.15. Placing the casing cover gasket on the casing cover.
16. Insert the non-coupling side (axial) case wear ring into the casing cover from the coupling
side until it fits in its fitting in the casing cover.
Figure 8.16. Inserting the non-coupling side (axial) case wear ring into the casing cover.
