17. Insert socket set screws to fix the non-coupling side (axial) case wear ring to the casing cover.

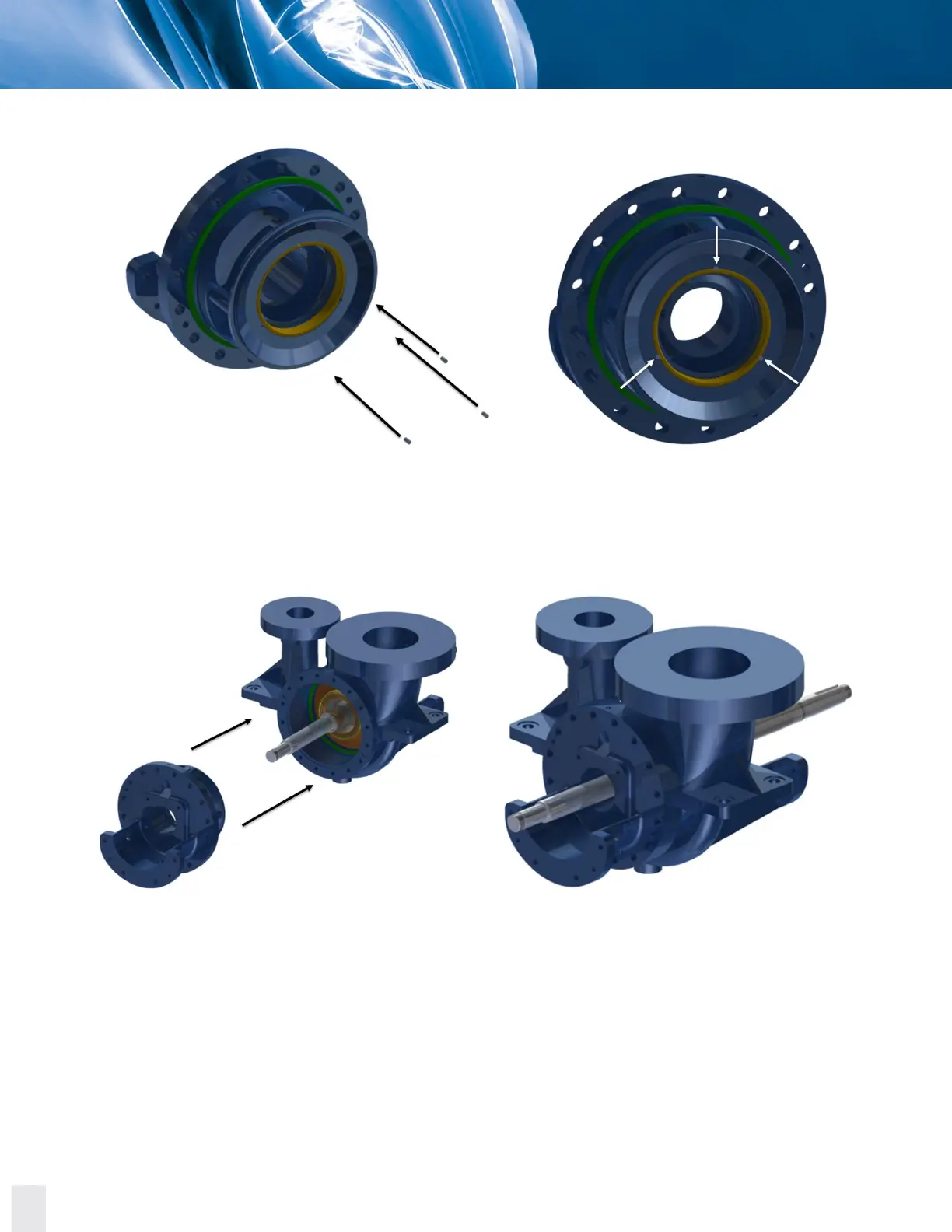

Figure 8.17. Inserting socket set screws to fix the non-coupling side (axial) case wear ring to the casing cover.
18. Insert the casing cover over the shaft from the non-coupling side until it reaches the case
gasket.
Figure 8.18. Inserting the casing cover over the shaft from the non-coupling side.
