J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
70 V1.032818
COUPLING SIDE (RADIAL) MECHANICAL SEAL

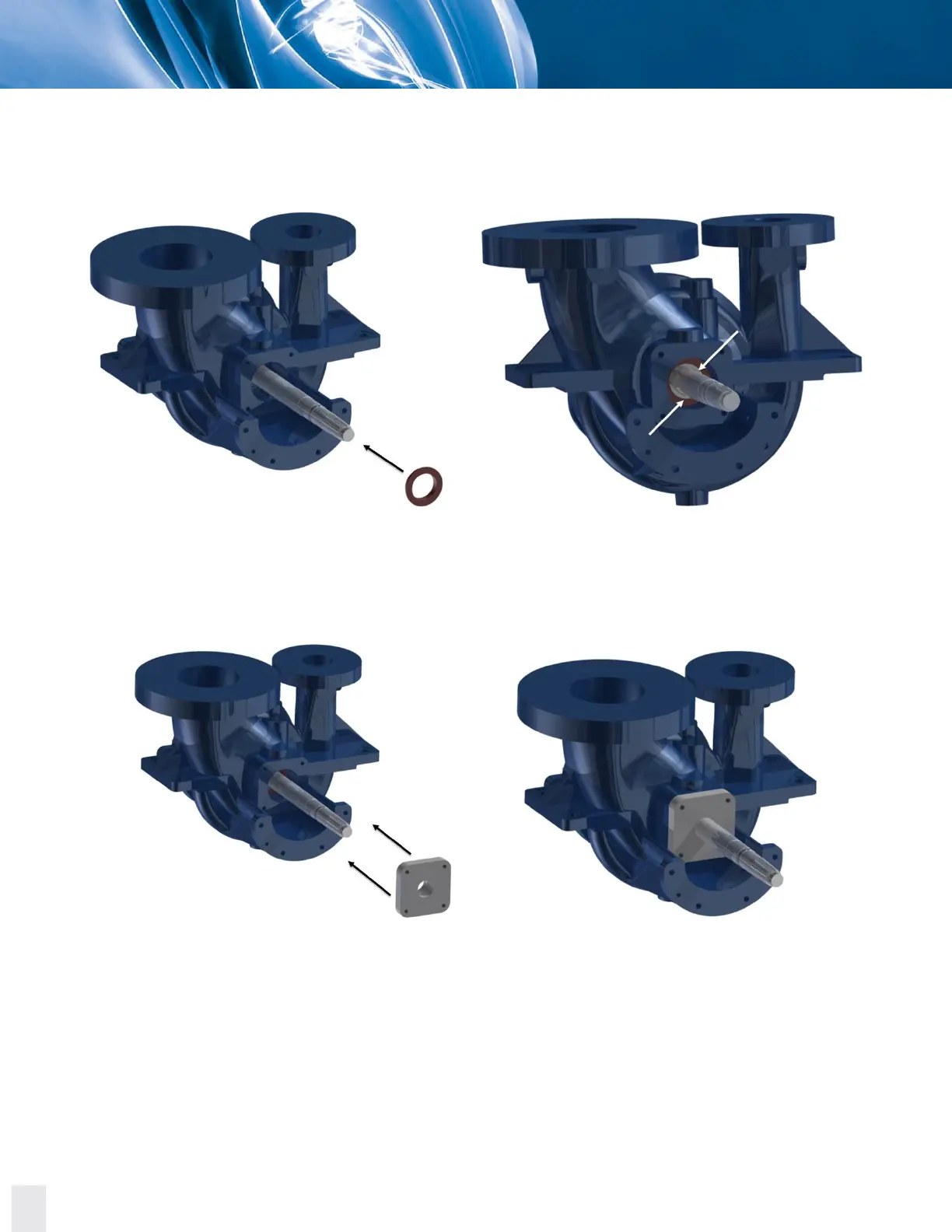

21. Insert the radial throat bushing over the shaft from the coupling side until it reaches the inner
shoulder of the case.
Figure 8.21. Inserting the radial throat bushing over the shaft from the coupling side.
22. Insert the radial mechanical seal over the shaft from the coupling side until it reaches the
case.
Figure 8.22. Inserting the radial mechanical seal over the shaft from the coupling side.
