J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
86 V1.032818

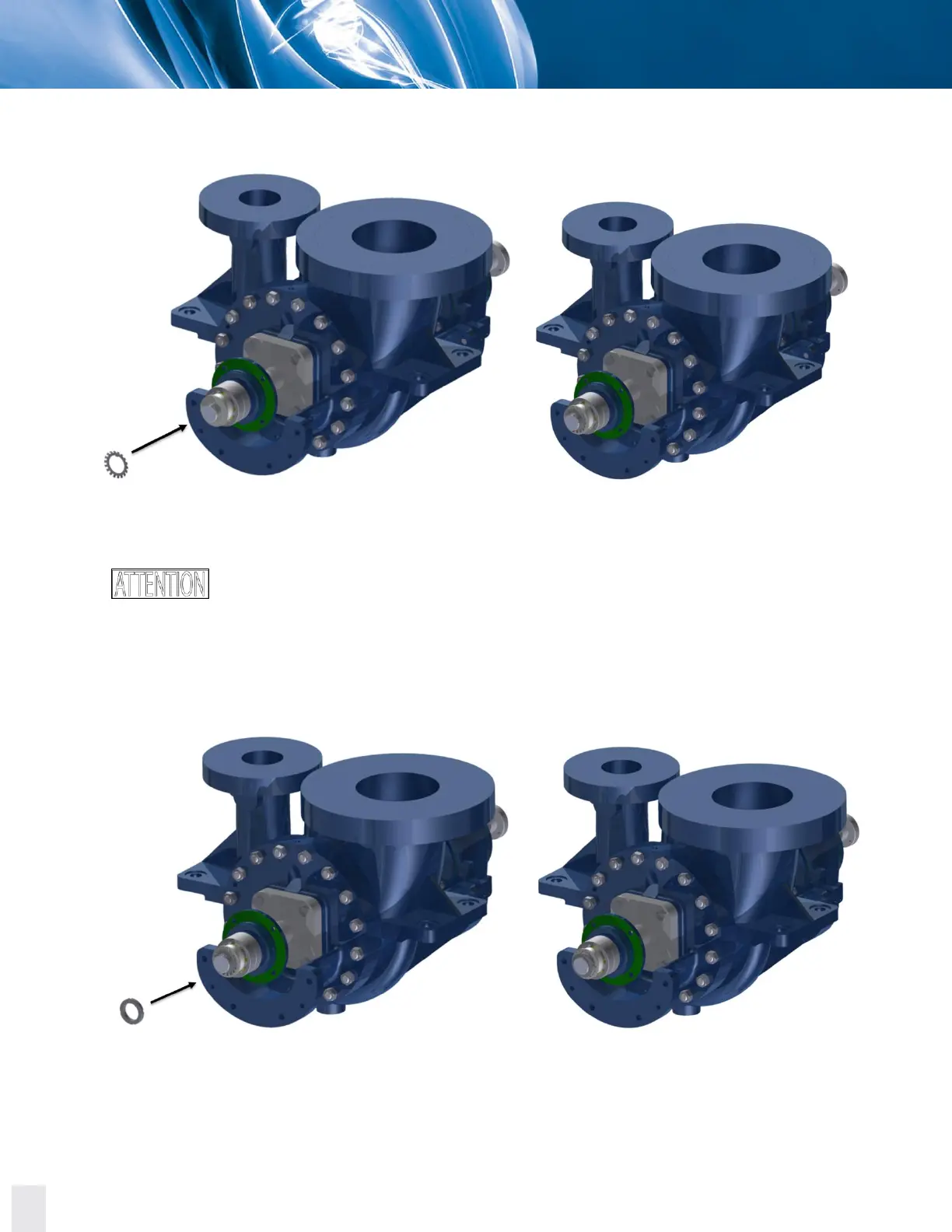

51. Insert the axial bearing lock washer over the shaft from the non-coupling side until it reaches
the axial shaft sleeve.
Figure 8.50. Inserting the axial bearing lock washer over the shaft from the non-coupling side.
 Make sure that the tab located in the inner diameter of the axial bearing lock
washer fits in the shaft groove.
52. Insert the axial lock nut over the shaft from the non-coupling side until it reaches the axial
bearing lock washer and tighten.
Figure 8.51. Inserting the axial bearing lock nut over the shaft from the non-coupling side.
