J Line Pump

Horizontal Double Suction Centrifugal Pump – API 610 Process Pump

97 V1.032818

COUPLING SIDE (RADIAL) CASING COVER

11. Insert the radial casing cover over the shaft from the coupling side until it reaches the case.

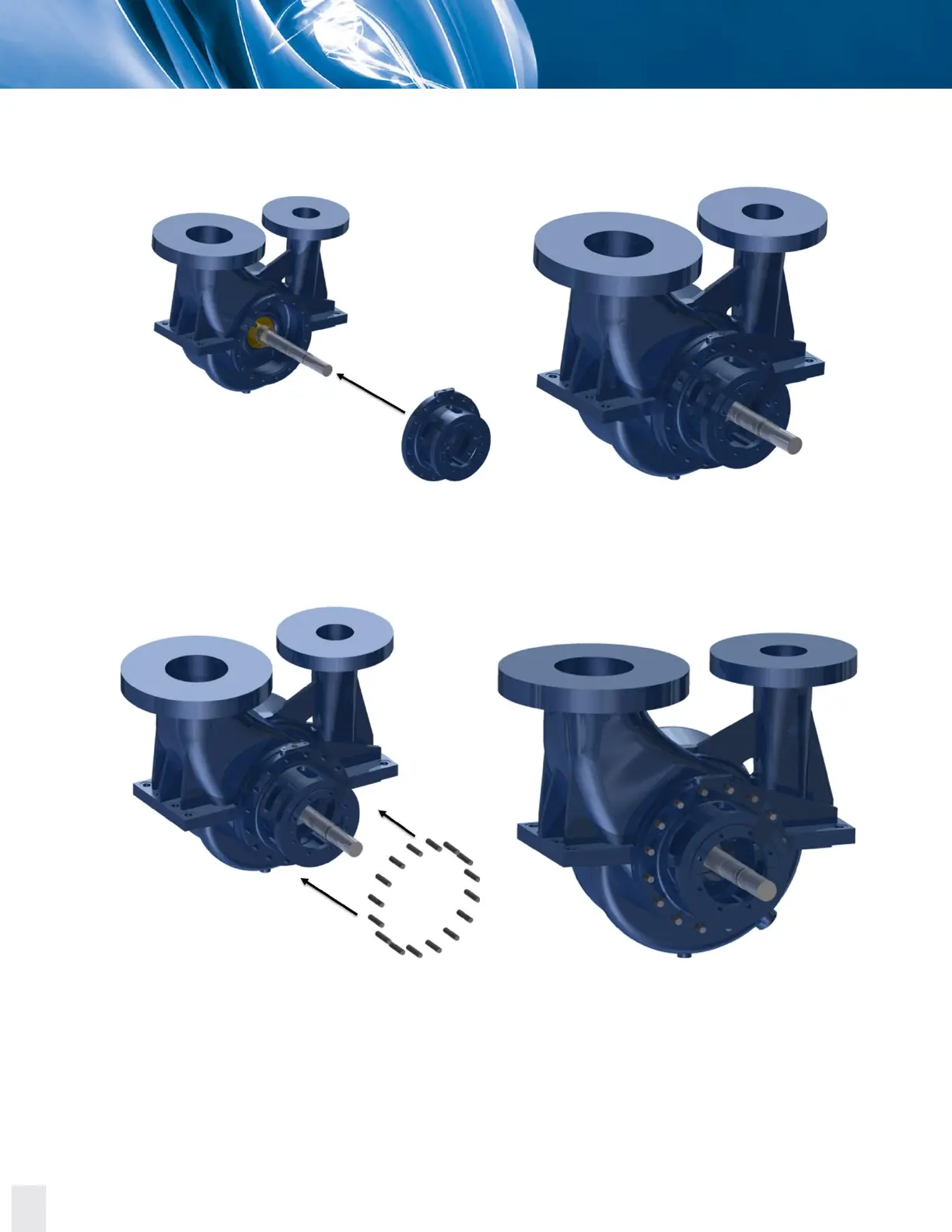

Figure 8.11JD. Inserting the radial casing cover over the shaft from the coupling side.

12. Insert the studs to join the radial casing cover to the case.

Figure 8.12JD. Inserting the studs to join the radial casing cover to the case.
