13. Place and tighten the hex nuts on the studs to secure the radial casing cover to the case.

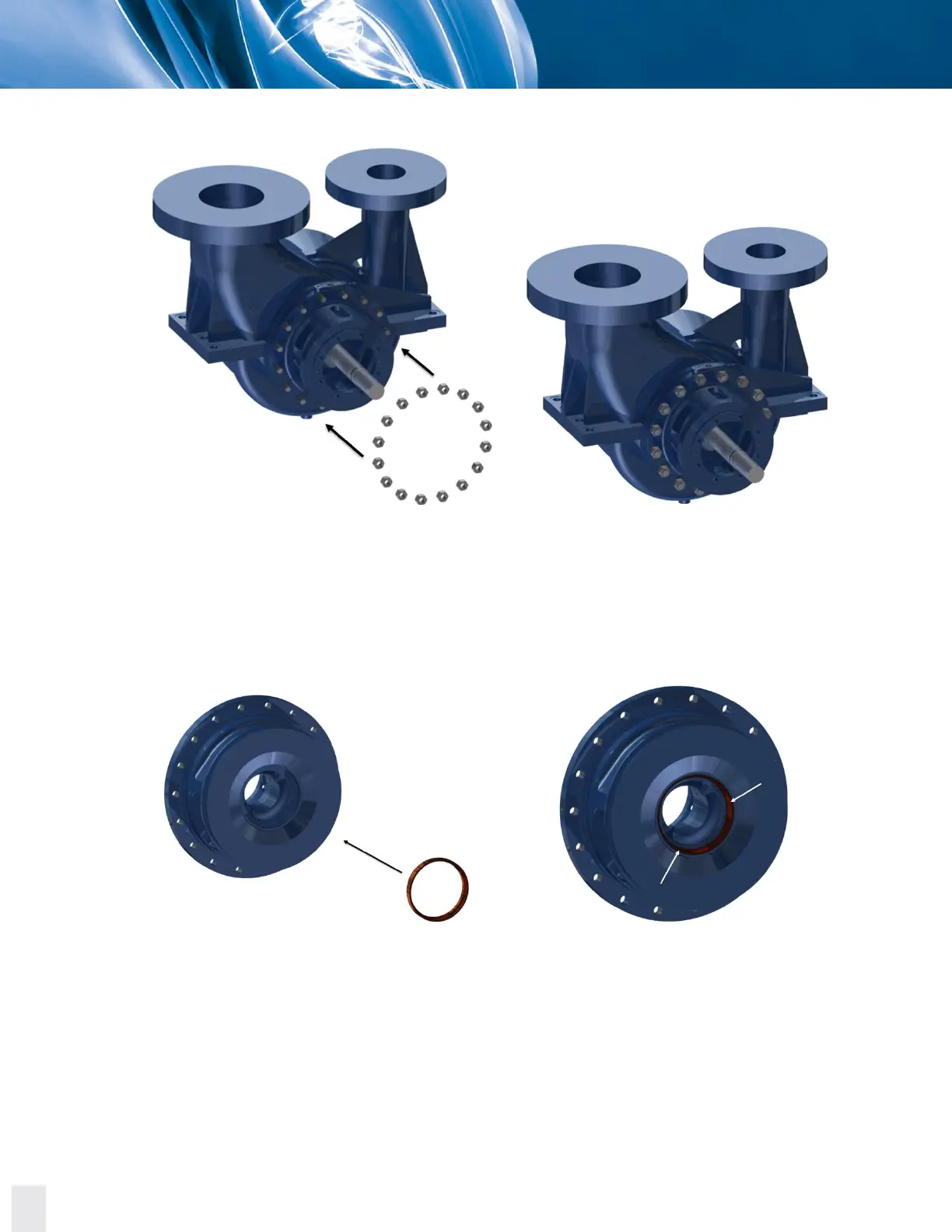

Figure 8.13JD. Placing the tightening the hex nuts to secure the radial casing cover to the case.
NON-COUPLING SIDE (AXIAL) CASING COVER
14. Insert the non-coupling side case wear ring inside the axial casing cover from the coupling
side.
Figure 8.14JD. Inserting the non-coupling side case wear ring inside the axial casing cover from the coupling side.
