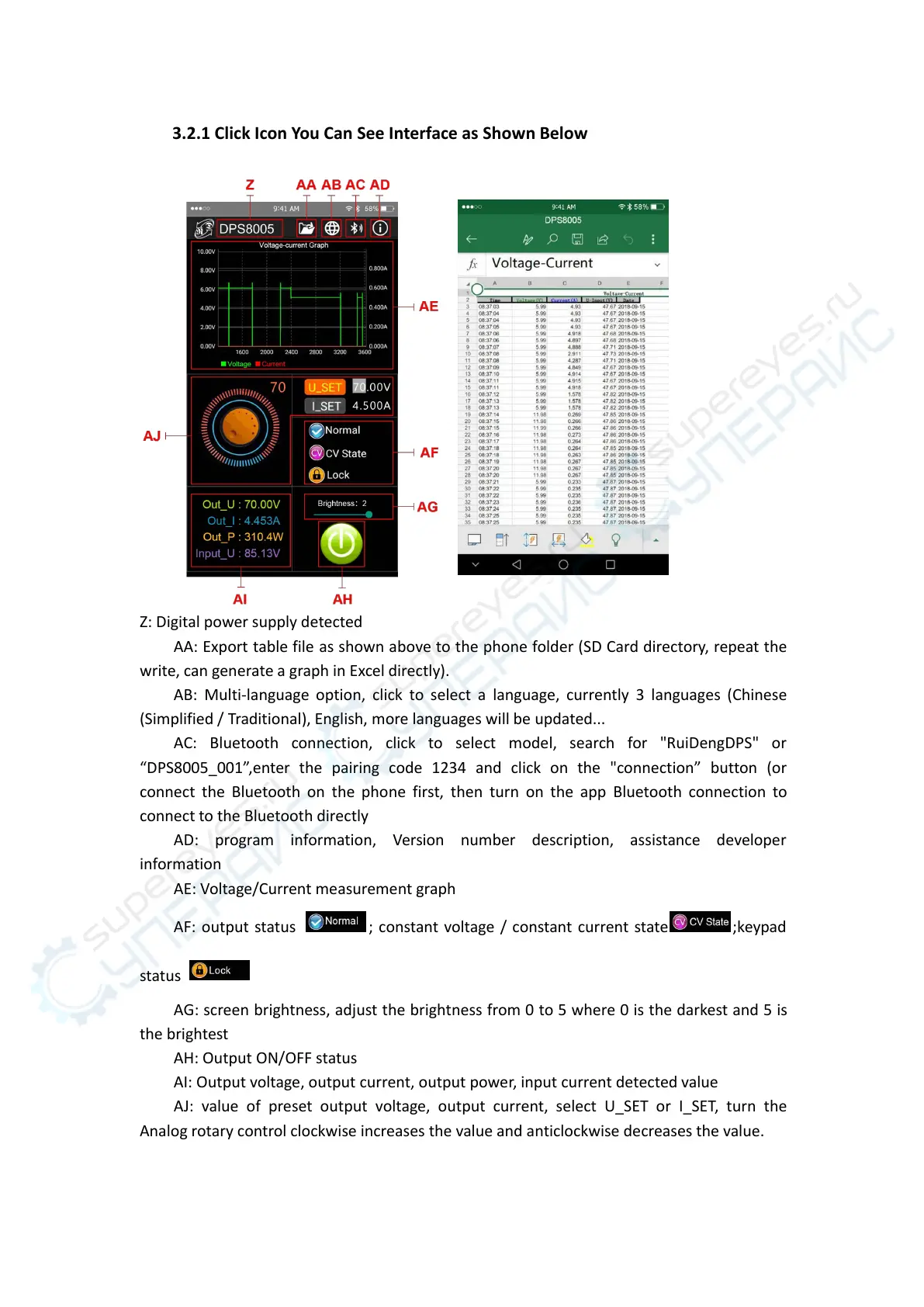

3.2.1 Click Icon You Can See Interface as Shown Below
Z: Digital power supply detected
AA: Export table file as shown above to the phone folder (SD Card directory, repeat the
write, can generate a graph in Excel directly).
AB: Multi-language option, click to select a language, currently 3 languages (Chinese
(Simplified / Traditional), English, more languages will be updated...
AC: Bluetooth connection, click to select model, search for "RuiDengDPS" or
“DPS8005_001”,enter the pairing code 1234 and click on the "connection” button (or
connect the Bluetooth on the phone first, then turn on the app Bluetooth connection to
connect to the Bluetooth directly
AD: program information, Version number description, assistance developer
information
AE: Voltage/Current measurement graph
AF: output status ; constant voltage / constant current state ;keypad
status
AG: screen brightness, adjust the brightness from 0 to 5 where 0 is the darkest and 5 is
the brightest
AH: Output ON/OFF status
AI: Output voltage, output current, output power, input current detected value
AJ: value of preset output voltage, output current, select U_SET or I_SET, turn the
Analog rotary control clockwise increases the value and anticlockwise decreases the value.
