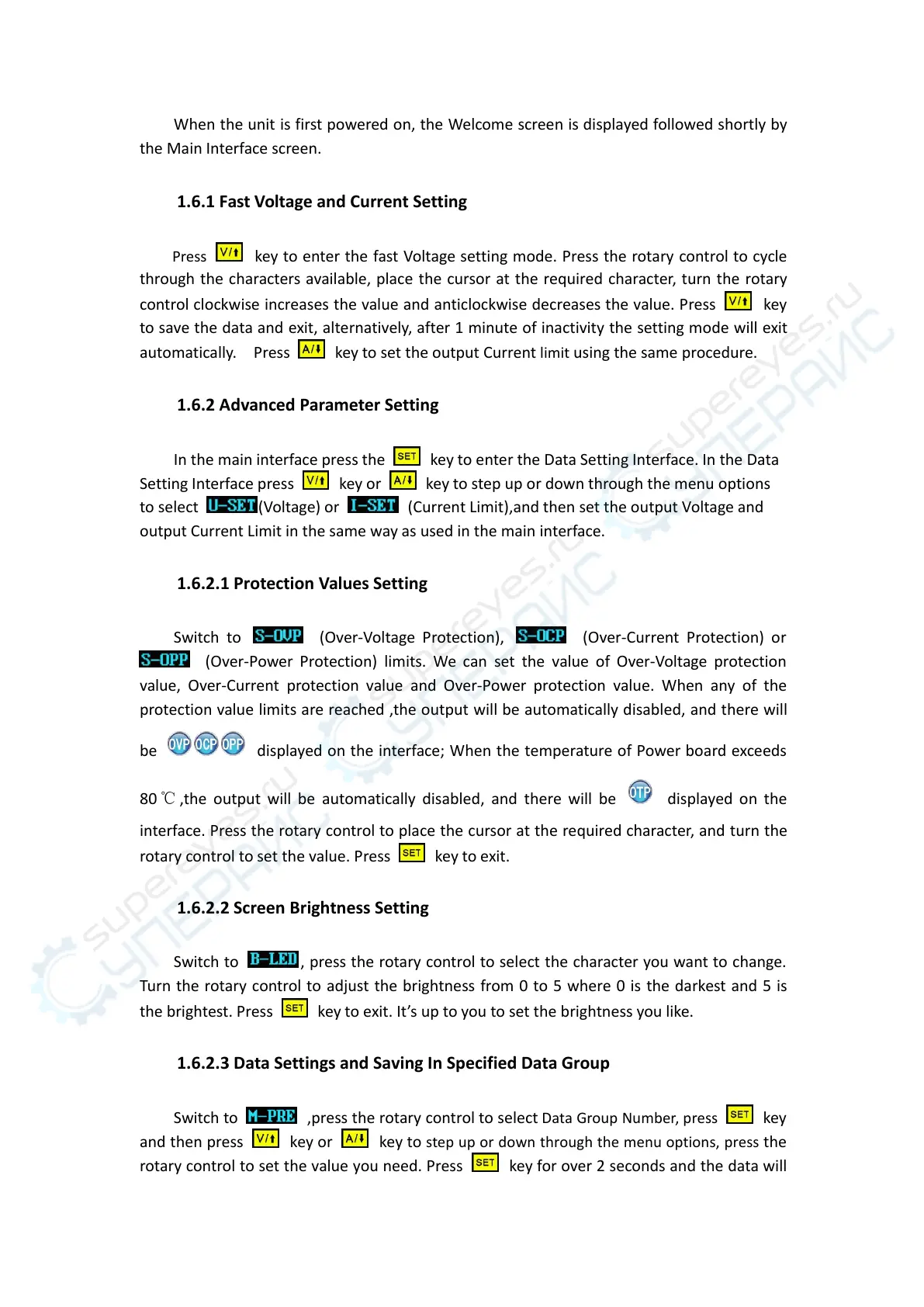

When the unit is first powered on, the Welcome screen is displayed followed shortly by
the Main Interface screen.
1.6.1FastVoltageandCurrentSetting
Press key to enter the fast Voltage setting mode. Press the rotary control to cycle
through the characters available, place the cursor at the required character, turn the rotary
control clockwise increases the value and anticlockwise decreases the value. Press key
to save the data and exit, alternatively, after 1 minute of inactivity the setting mode will exit
automatically. Press key to set the output Current limit using the same procedure.
1.6.2 Advanced Parameter Setting
In the main interface press the key to enter the Data Setting Interface. In the Data
Setting Interface press key or key to step up or down through the menu options
to select (Voltage) or (Current Limit),and then set the output Voltage and
output Current Limit in the same way as used in the main interface.
1.6.2.1 Protection Values Setting
Switch to (Over-Voltage Protection), (Over-Current Protection) or
(Over-Power Protection) limits. We can set the value of Over-Voltage protection
value, Over-Current protection value and Over-Power protection value. When any of the
protection value limits are reached ,the output will be automatically disabled, and there will
be displayed on the interface; When the temperature of Power board exceeds
80 ℃ ,the output will be automatically disabled, and there will be displayed on the
interface. Press the rotary control to place the cursor at the required character, and turn the
rotary control to set the value. Press key to exit.
1.6.2.2 Screen Brightness Setting
Switch to , press the rotary control to select the character you want to change.
Turn the rotary control to adjust the brightness from 0 to 5 where 0 is the darkest and 5 is
the brightest. Press key to exit. It’s up to you to set the brightness you like.
1.6.2.3 Data Settings and Saving In Specified Data Group
Switch to ,press the rotary control to select Data Group Number, press key
and then press key or key to step up or down through the menu options, press the
rotary control to set the value you need. Press key for over 2 seconds and the data will
