Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

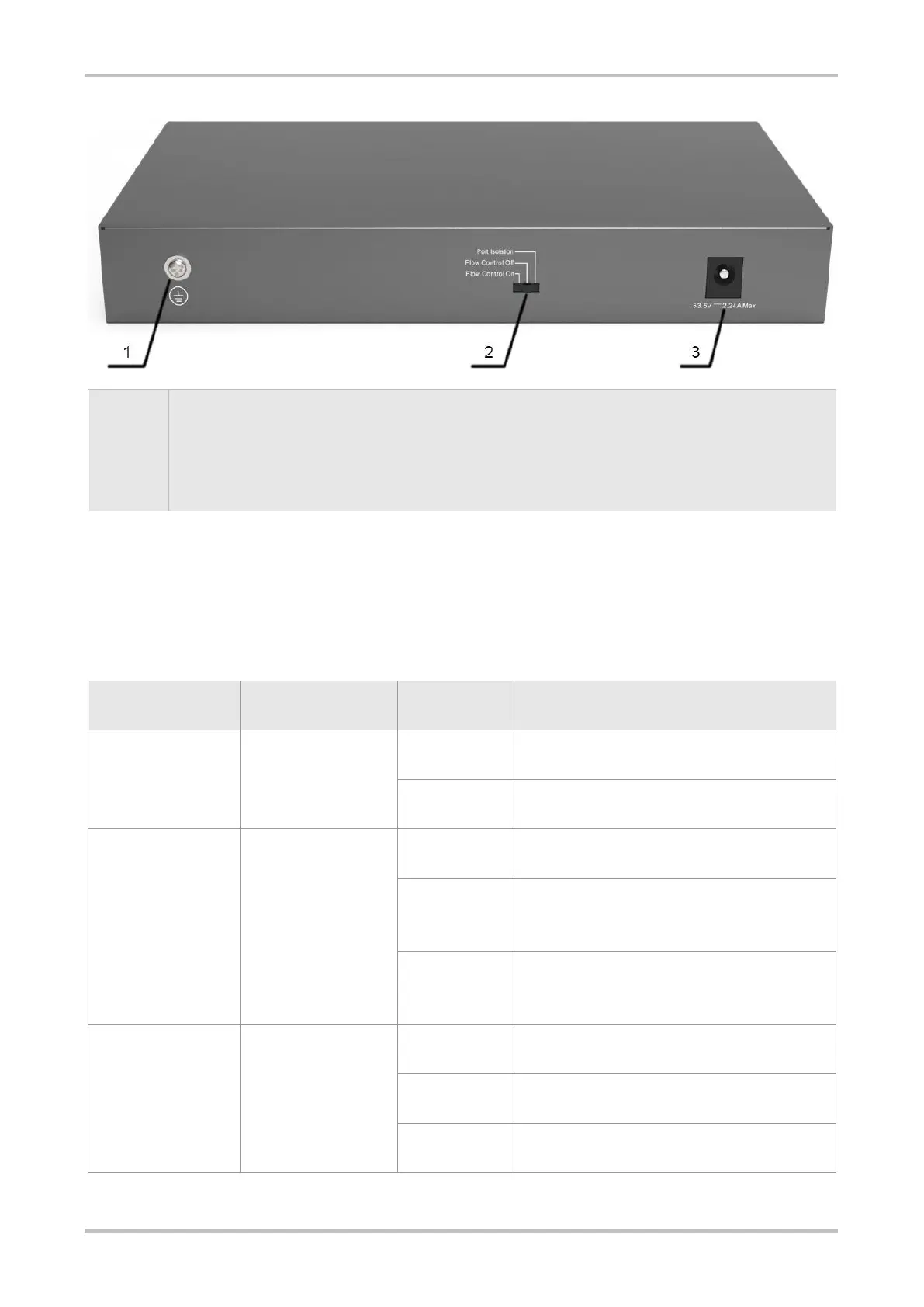

Note:
1. Grounding pole
2. AC power socket
Heat Dissipation
The RG-ES118S-LP adopts fans for heat dissipation, thereby ensuring normal function of the device in the specified
environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air
circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.
LEDs
LED
Panel Identification
State
Meaning
System status LED
PWR
Off
The switch is powered off.
Solid green
The switch is operational.
RJ45 port status LED
Link/ACT (1-16)
Off
The port is not connected.
Solid green
The port is connected at 10/100 Mbps.
Blinking green
The port is receiving or sending traffic at 10/100
Mbps.
Combo port LED
Link/ACT
(17/17F, 18/18F)
Off
The port is not connected.
Solid orange
The port is connected at 100 Mbps.
Blinking orange
The port is receiving or sending traffic at 100
Mbps.
Solid green
The port is connected at 1000 Mbps.
Blinking green
The port is receiving or sending traffic at 1000
Mbps.
RJ45 PoE status LED
PoE (1-16)
Off
PoE does not supply power.
Solid green
PoE is operational.
Blinking green
PoE is overloaded.
