Ruijie Reyee RG-ES100 Series

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide
RG-ES118S-LP provides 16 10/100Base-TX auto-sensing Ethernet ports, 2 1000Base-X SFP combo ports, a port mode
switch-over button and LED indicators on the front panel, and a power socket and a grounding pole on the back panel.

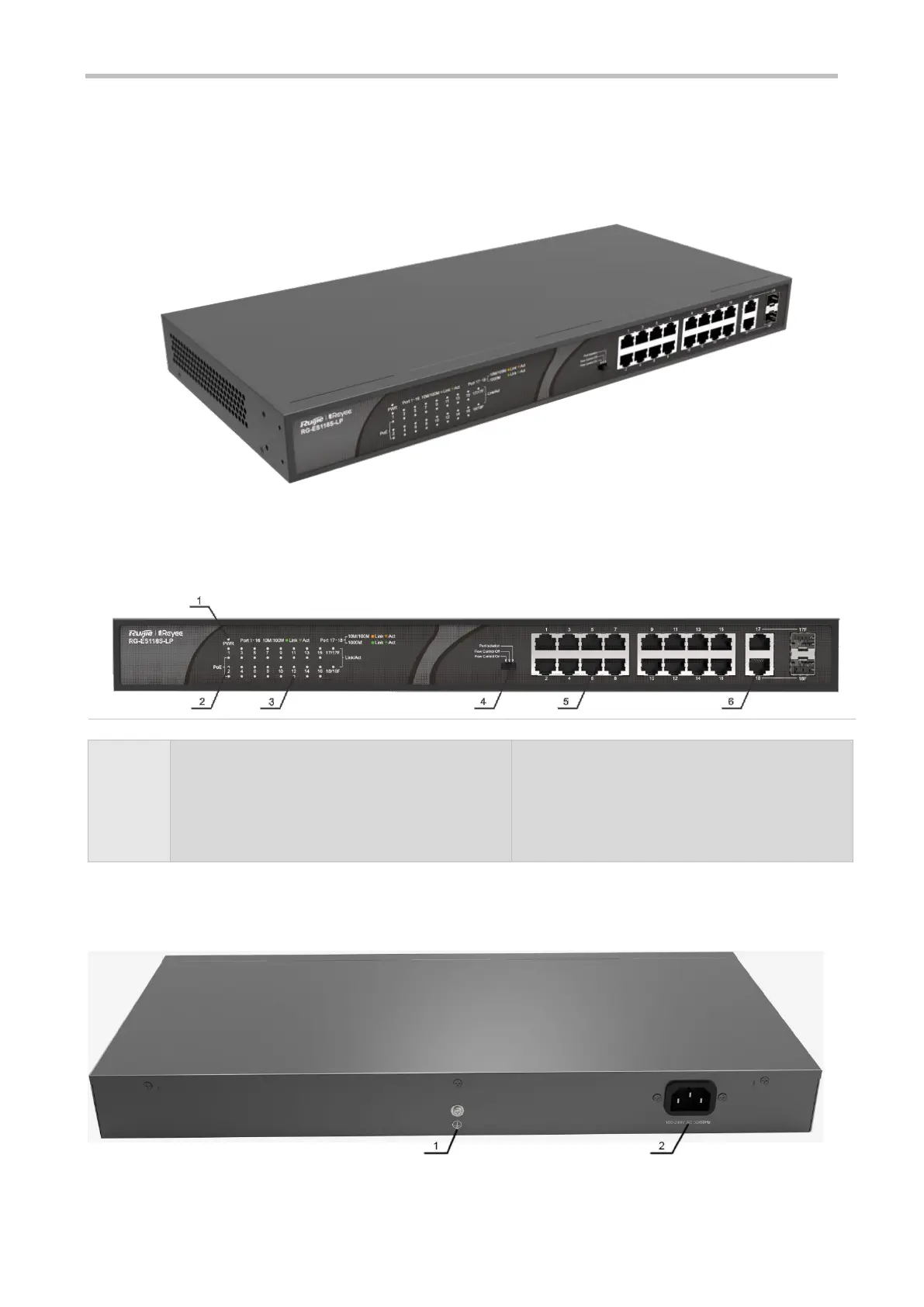

Figure 1-4 Appearance of RG-ES118S-LP
Front Panel
Figure 1-5 Front Panel of RG-ES118S-LP
Note:
1. System status LED
2. Port status LED
3. PoE status LED
4. Port mode switch-over button
5. 10/100Base-TX auto-sensing Ethernet port
6. 10/100/1000Base-T combo port
Back Panel
Figure 1-6 Back Panel of RG-ES118S-LP
