Earth Leakage
Current
≤ 1.5mA
Dimensions
(W x D x H)
280 mm x 126 mm x 44 mm (11.02 in. x 4.96 in. x 1.73 in.)
Weight
(With Package)
1.76 kg (3.88 lbs)
The RG-ES124GD switch is a class A product. In a domestic environment, this product may cause radio interference
in which case the user may be required to take adequate measures.
Product Appearance
RG-ES124GD provides 24 10/100/1000Base-T auto-sensing Ethernet ports, a port mode switch-over button and LED
indicators on the front panel, and a power socket and a grounding pole on the back panel.

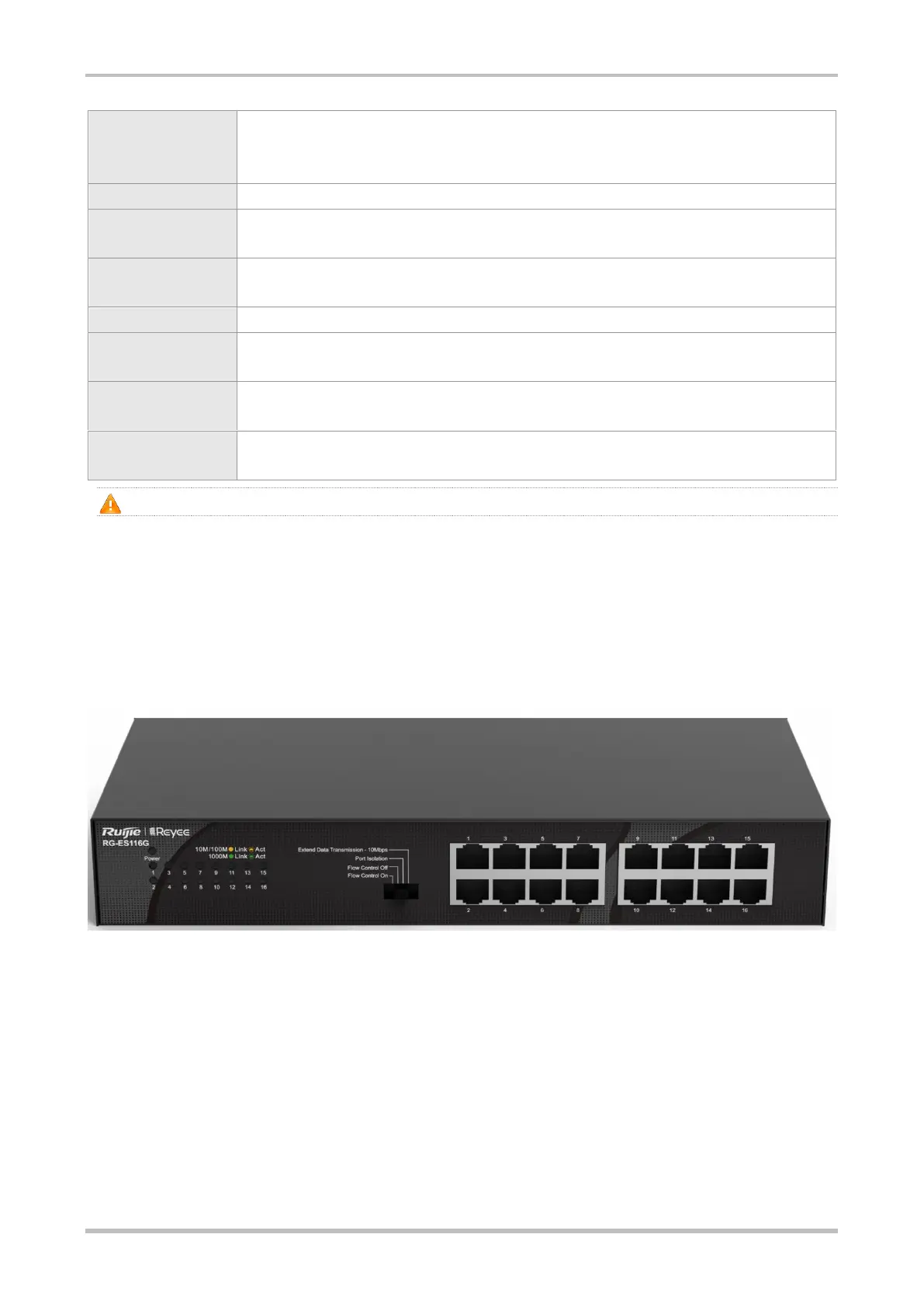

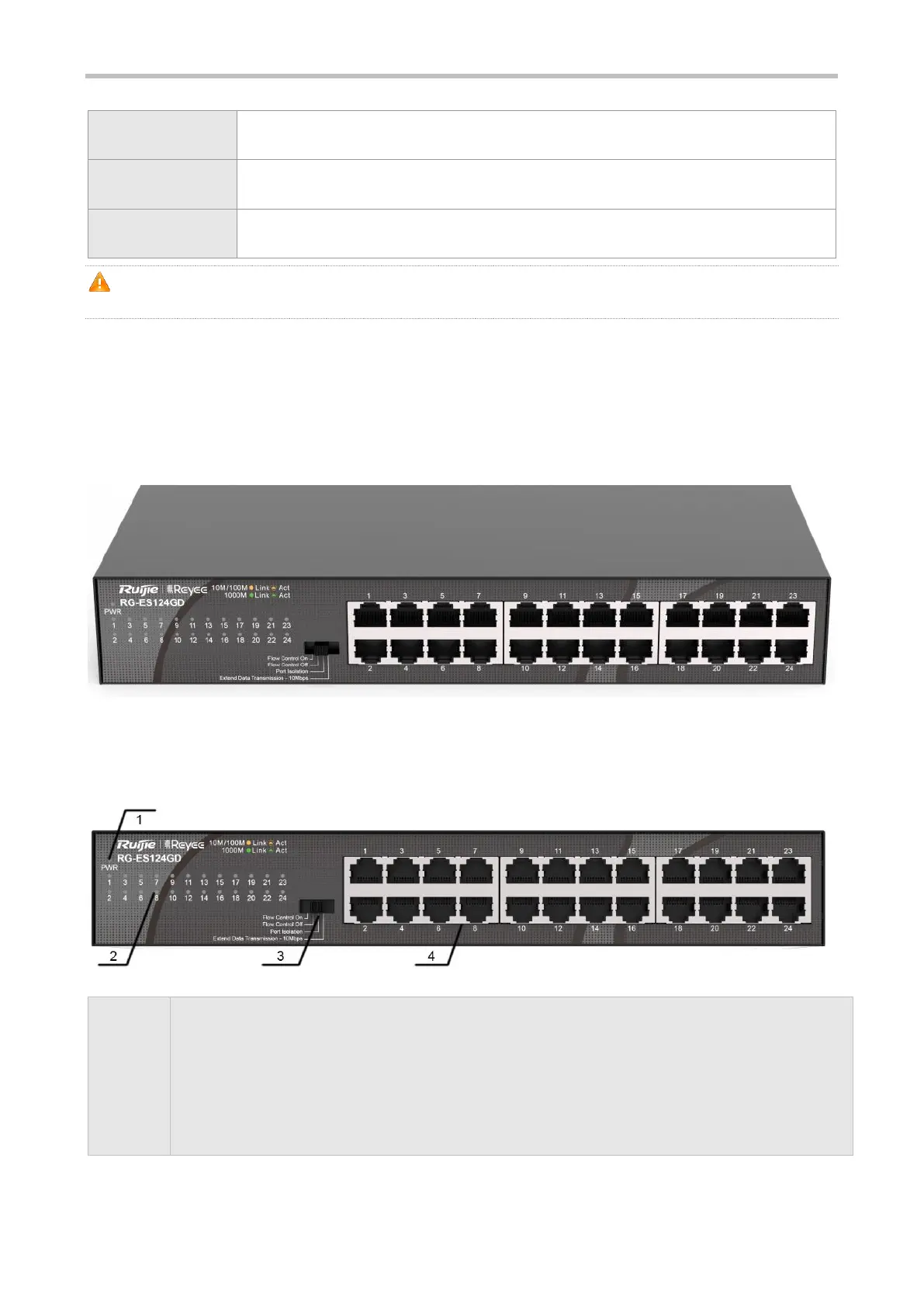

Figure 1-10 Appearance of RG-ES124GD
Front Panel
Figure 1-11 Front Panel of RG-ES124GD
Note:
1. System status LED
2. Port status LED
3. Port mode switch-over button
4. 10/100/1000Base-T auto-sensing Ethernet port
Back Panel
