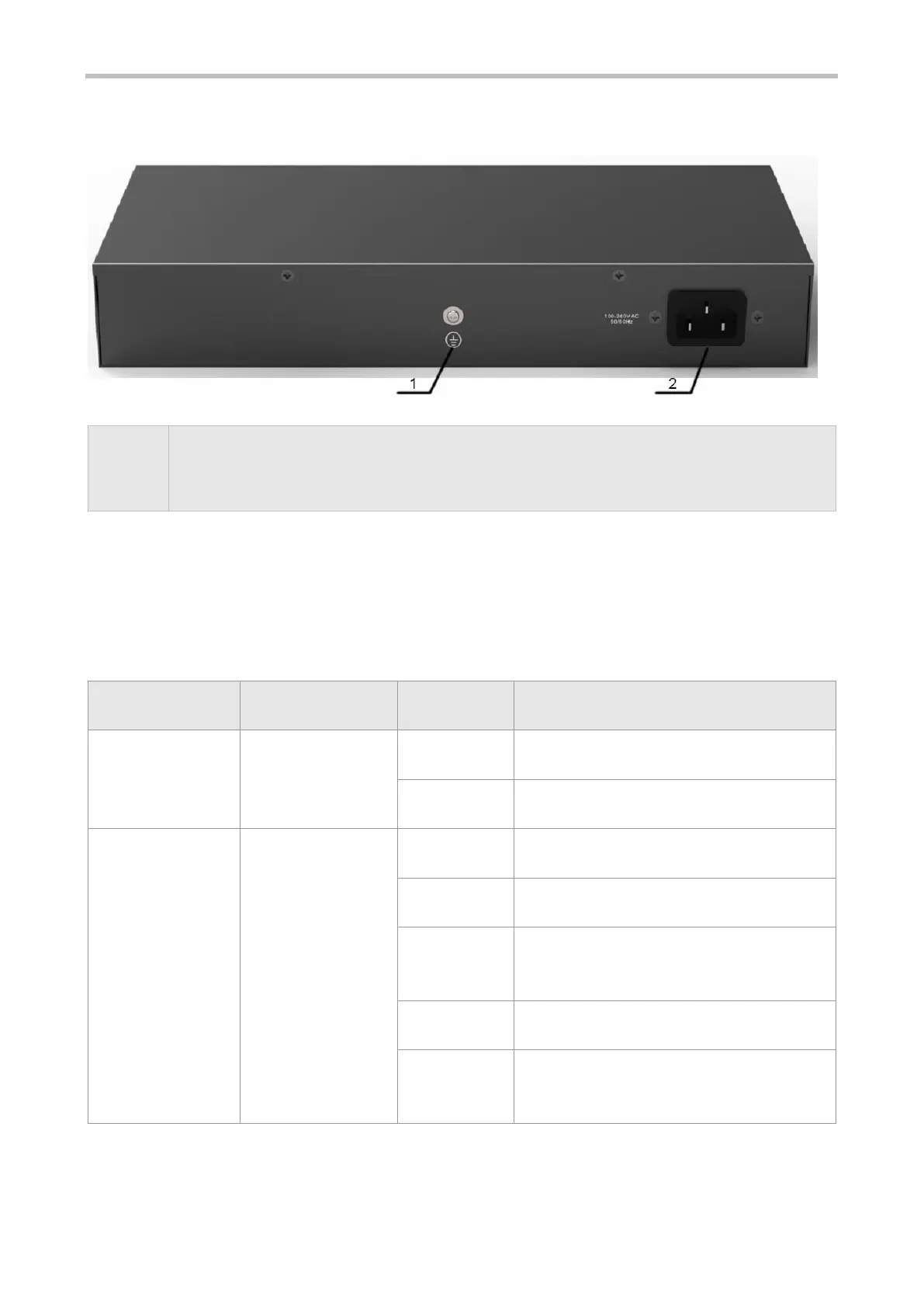

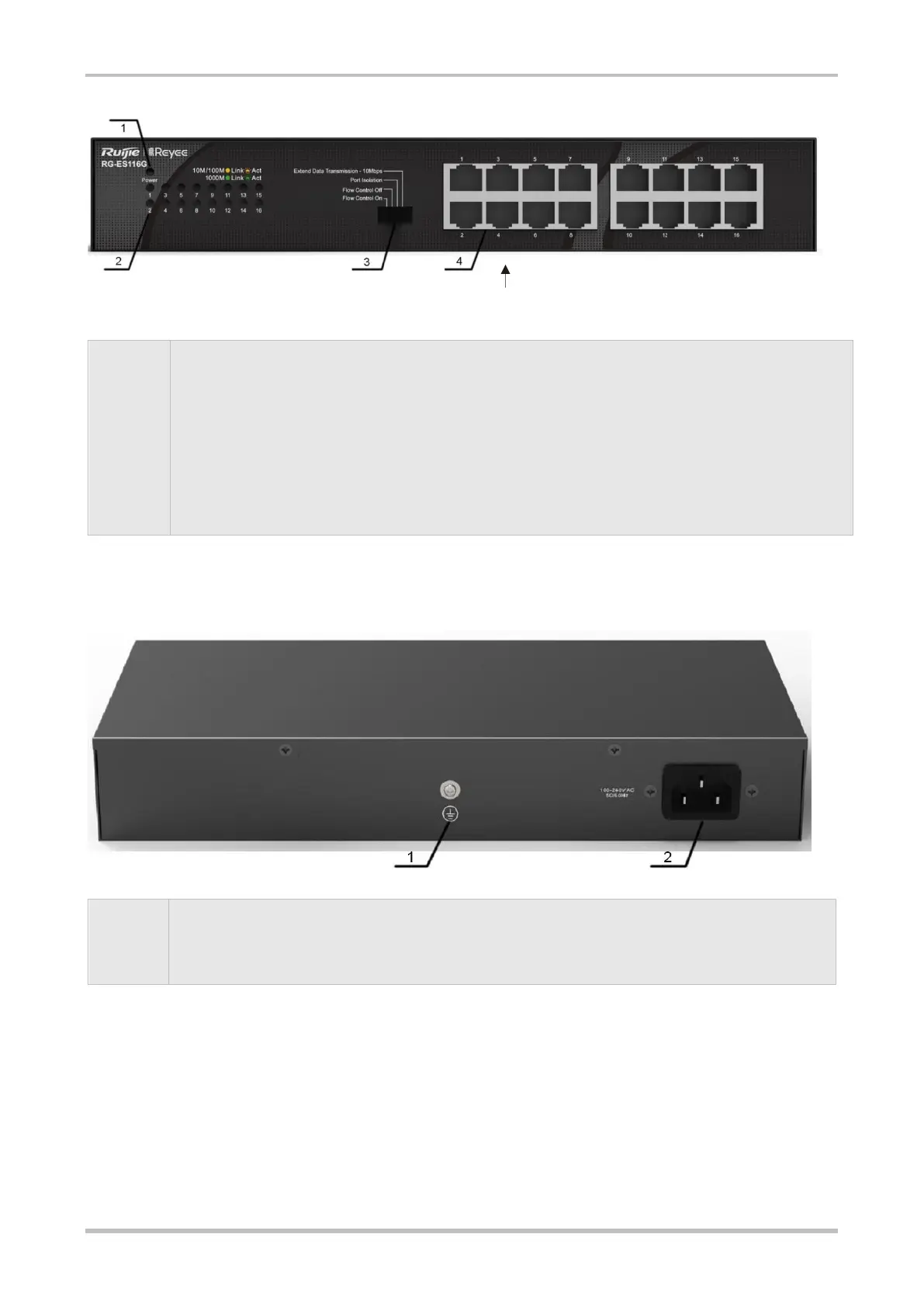

Figure 1-12 Back Panel of RG-ES124GD
Note:
1. Grounding pole
2. AC power socket
Heat Dissipation
The RG-ES124GD adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum
clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once every 3 months to avoid
dust from blocking vents.
LEDs
LED
Panel Identification
State
Meaning
System status LED
Power
Off
The switch is powered off.
Solid green
The switch is operational.
RJ45 port status LED
Link/ACT(1-24)
Off
The port is not connected.
Solid orange
The port is connected at 10/100 Mbps.
Blinking orange
The port is receiving or sending traffic at 10/100
Mbps.
Solid green
The port is connected at 1000 Mbps.
Blinking green
The port is receiving or sending traffic at 1000
Mbps.
