Ruijie Reyee-Hotel Solution Cookbook Basic Configuration
22
 Traffic from different users is transmitted through different egresses: IP traffic from
some intranet users can be transmitted through a fixed extranet line.
 Bandwidth superimposition (load balancing): The gateway automatically distributes
egress traffic to multiple extranet lines to achieve the bandwidth superimposition
effect.
 Policy-based routing (PBR) is a mechanism for routing and forwarding based on
user-specified policies. When a router forwards data packets, it filters the packets
based on configured rules, and then forwards the matched packets according to the
specified forwarding policy. PBR enables the device to define rules according to
specific fields (source or destination IP address and protocol type) in the data
packets and forward the data packets from a specific interface.
3.4.2 Procedure

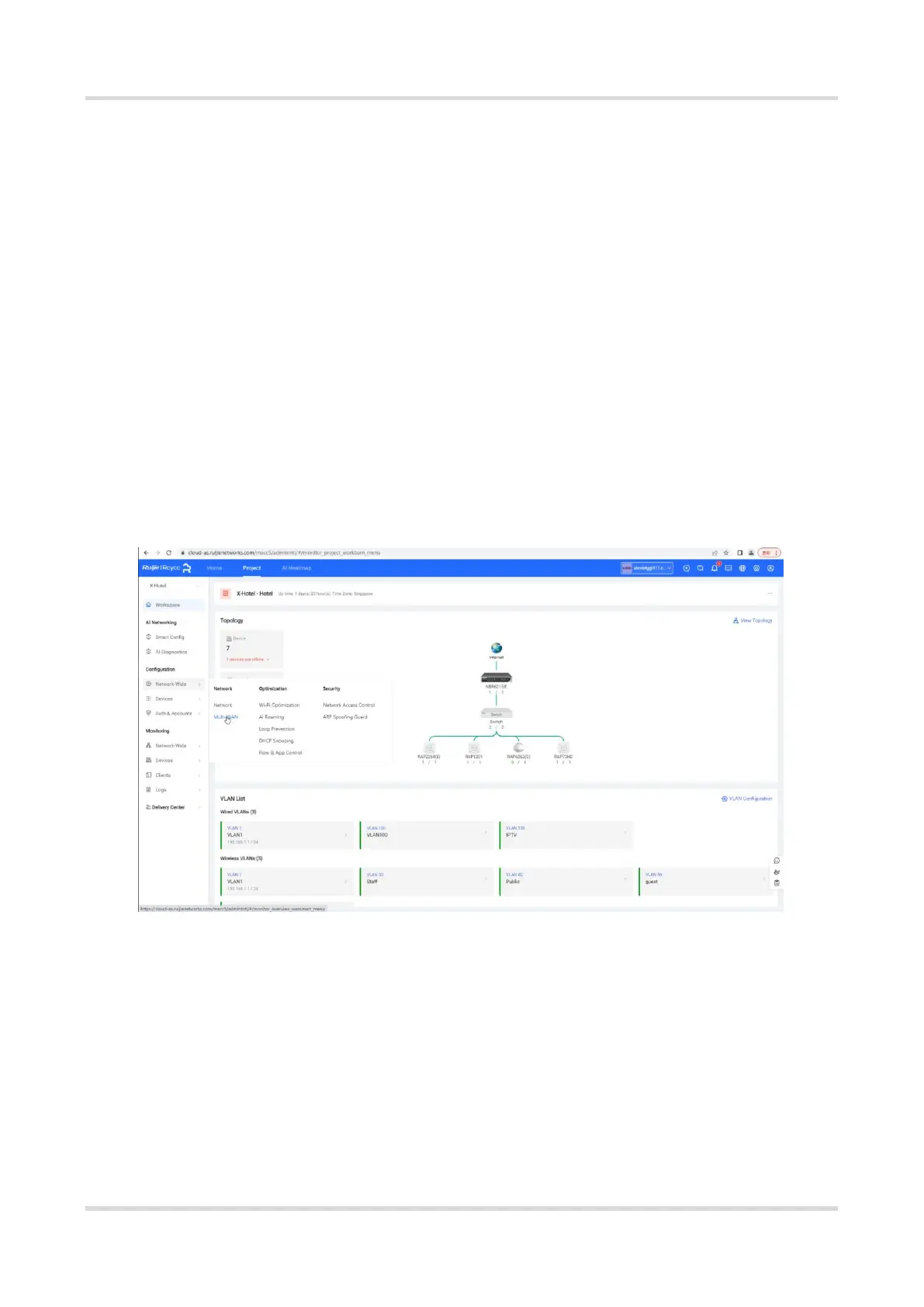

(1) Choose Network-Wide > Multi-WAN to go to the Smart WAN Selection page.
(2) If you need to add a created service network to a fixed line, for example, configure all
users in VLAN 23 to access the Internet through the egress of ISP1, select VLAN 23 and
drag it to the corresponding service network area, such as Fixed Egress: ISP1.
