Step 3：Communication cable connection
If the system is used in parallel, connect the communication cable.
• Take out battery to battery communication cable.
• Confirm the location of Master battery, insert the RJ45 plug into the Link IN port and connect
the other side to next battery Link Out port, daisy chained all batteries.

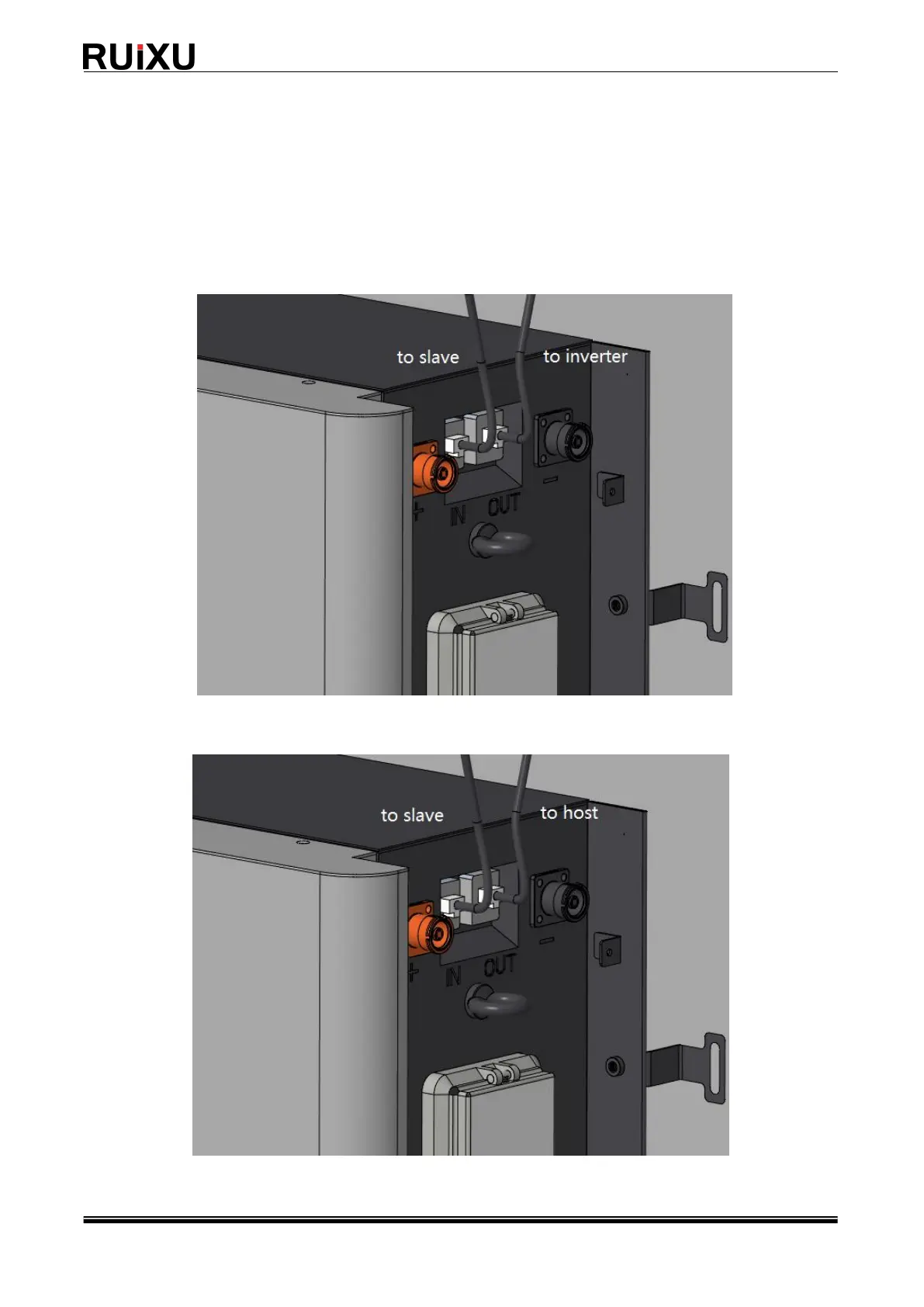

Host connection mode
Slave connection mode
