6. Cable connection and commissioning
• Pay attention to the positive and negative terminals during installation, it is strictly prohibited
to short-circuit the positive and negative terminals, otherwise it will cause a short circuit of the
battery.
• Wear insulated gloves and use insulated tools to avoid electric shock injury or short circuit
failure.
• Do not smoke or use open flame near the battery.
• The colors of the cables involved in all the electrical connection schematics in this section are
for reference only, and the cables should be selected in accordance with local standards.
• if you are making cable yourself, please follow manufacturer's requirements.
6.1 Cable connection
Step 1：Get battery ready
• Ensure battery is in OFF mode, and confirm the installation is tighten and stable.
• Check the number and specification of cable kit accessories are correct according to the Scope
of delivery item.

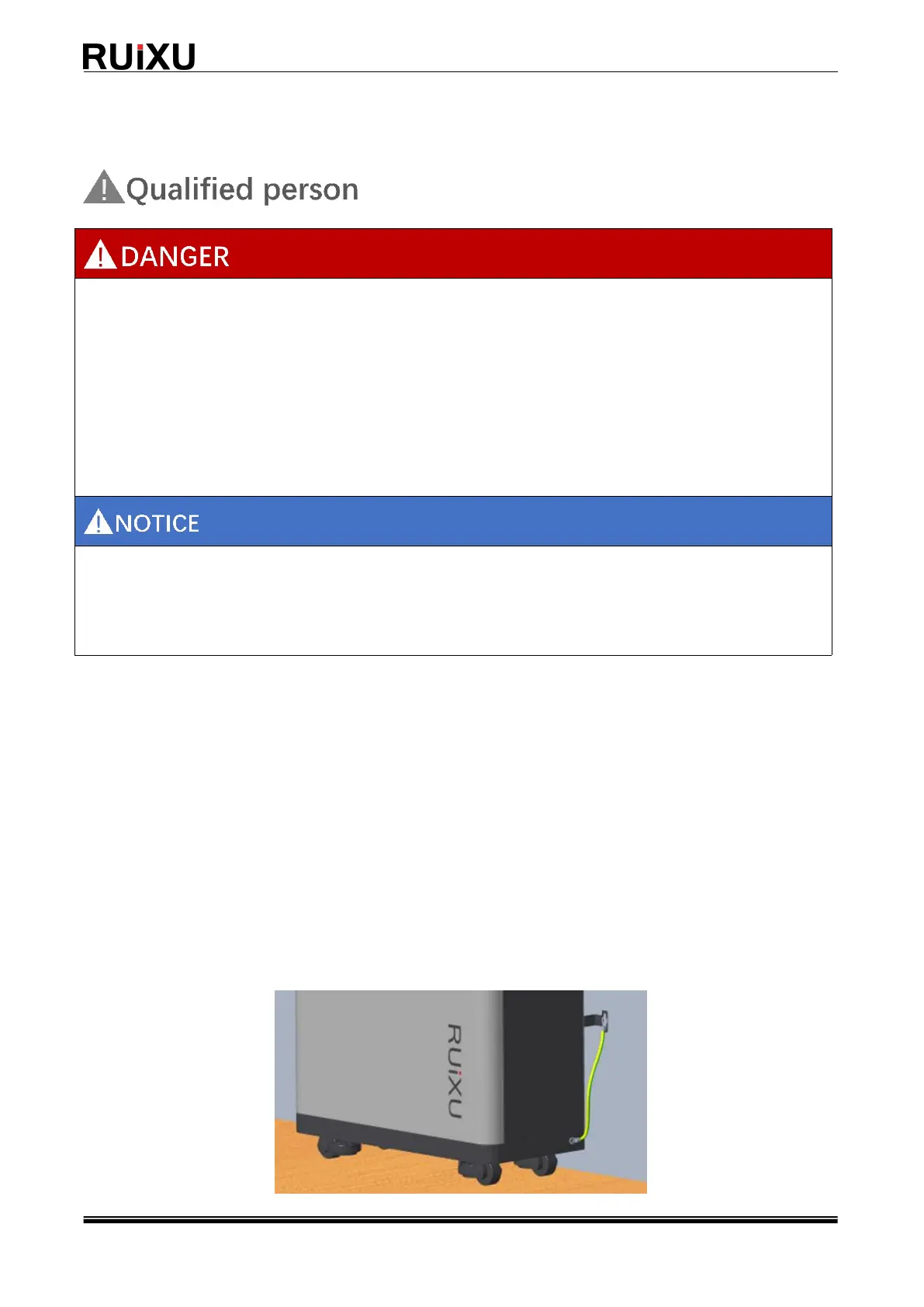

Step 2：Grounding cable connection
• Take the ground cable and corresponding screw out of the fitting.
• Ground the battery cover using a screwdriver and ground cable.
