Step 5：Connecting with inverter
• Confirm inverter AC input and PV input is disconnected before wiring connection, and the
DC/ signal switch of inverter/charger is in off status.
• The maximum permissible current of each power cable and terminal is 240A, The continuous
allowable current is 200A.
• please use corresponding number of power cable pairs according to the field configuration
and local connection requirements, standards, and directives.
• The maximum communication cable length is required to be less than 15m between
inverter/charge and battery.
•
The maximum power cable length is suggested to be less than 10m between inverter/charge
and battery.

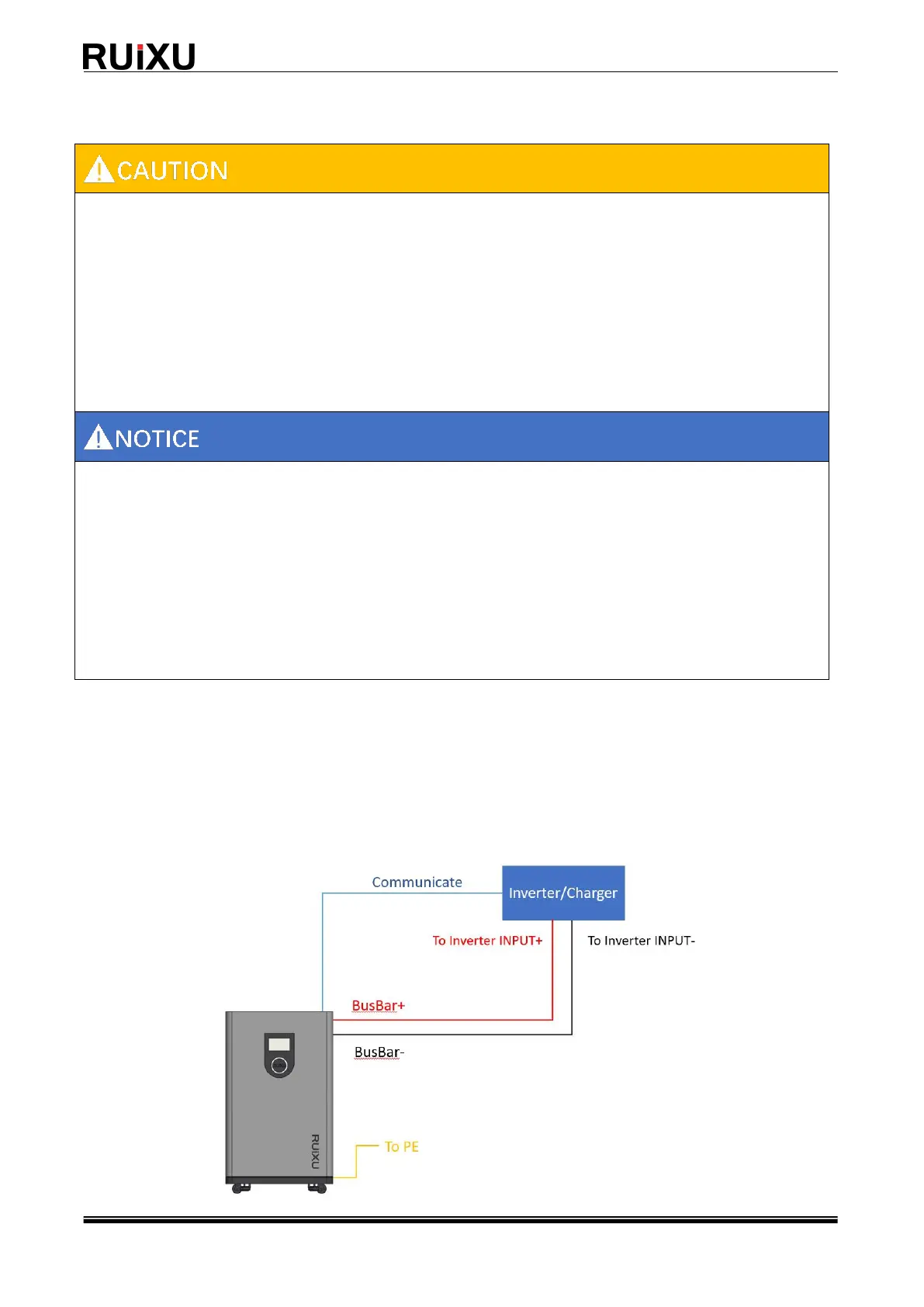

• When the battery is used in parallel, use a bus bar to connect the battery to the inverter.
• Please refer to Appendix I for the communication connection method
• Connecting Master battery Link Out port with inverter CAN or RS485 communication port via
inverter communication cable,.
• Connecting battery OUTPUT (+) with inverter battery INPUT (+), battery OUTPUT (-) with
inverter battery INPUT (-), choose the corresponding power cable pair and wiring them
correctly.
