MODEL 63504-F63C1/63604-F63C3/73504-F68C1/73604-F68C3
25
Pressure
relief
connector
Control the inlet
bypass to
release
pressure
When valve is rotating, pressure relief
connector opened to prevent pressure
increasing rapidly.
To ensure only
one control
valve
regeneration or
washing in
system.
Use in RO Pre-treatment, water supply
together but regeneration in turn.
Second grade ion exchange
equipment, etc.
Remote
handling
connector
Receipt signal
to make the
control rotate to
next circle
It is used for on-line inspection system,
PC connection, and realize
automatically or remote controlling
valve.
A. Signal Output Connector
1） Control Solenoid Valve（Set b-01）

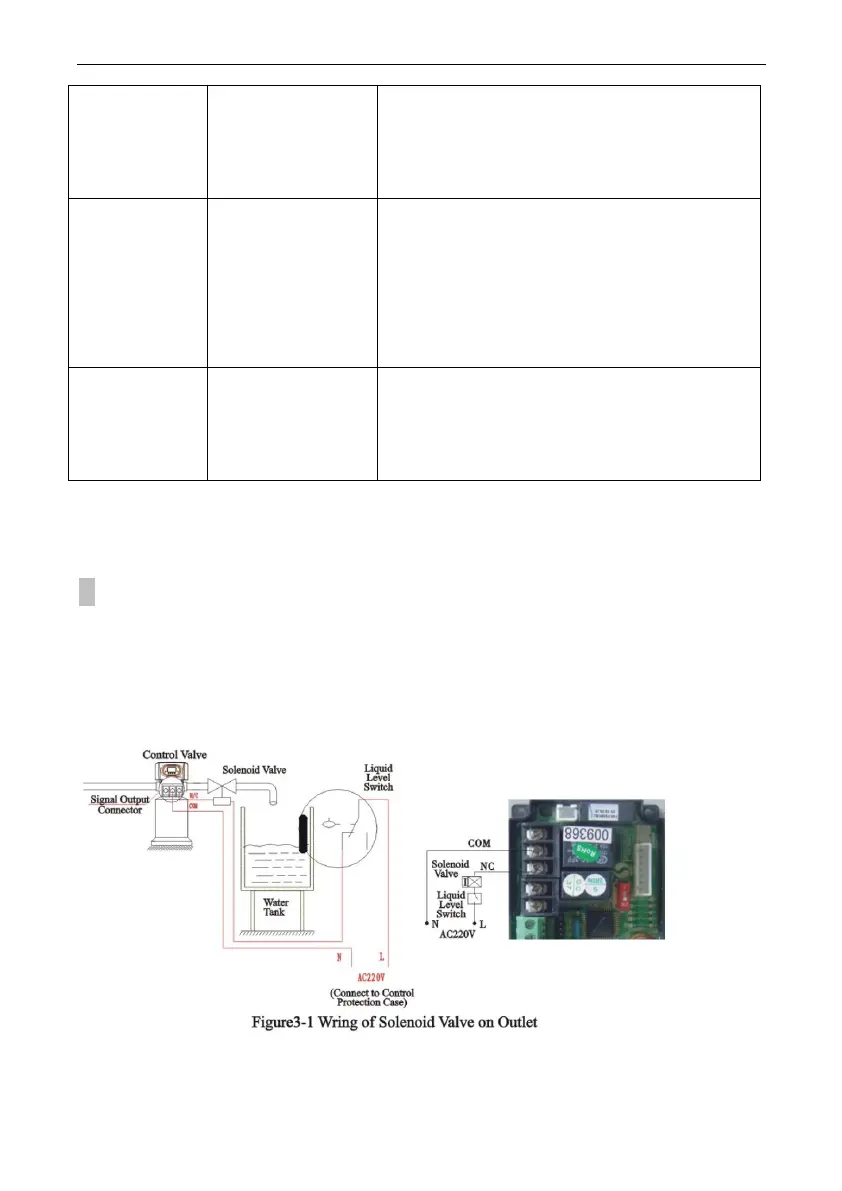

①Solenoid Valve on Outlet Controls Water Level in Brine Tank.
Instruction: If system strictly require no hard water flow from outlet in
regeneration cycle( Mainly for no hard water flow out when valve is
switching or valve in backwash or brine drawing positions), a solenoid
valve could be installed on outlet, the wiring refer to Figure 3-1.
Function:
When valve in service status, if soft water tank is short of water,
