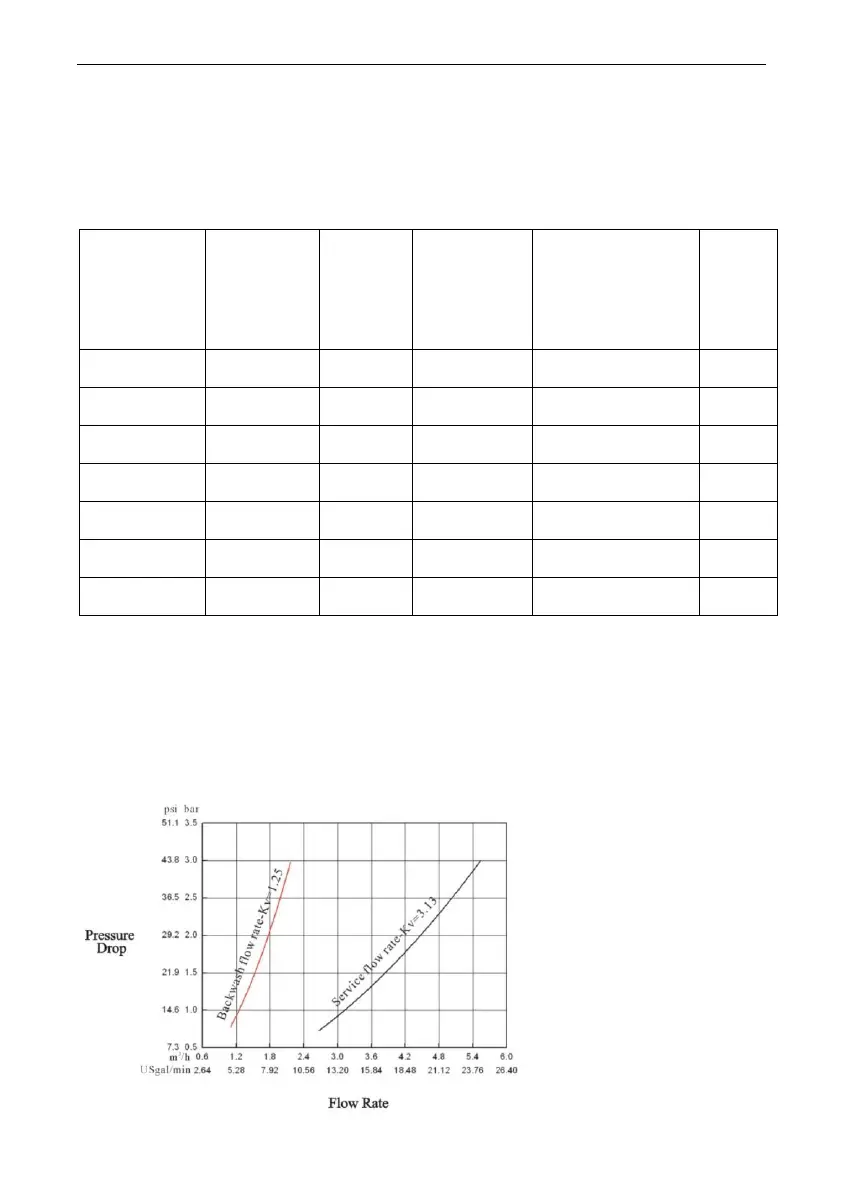

3.3. System Configuration and Flow Rate Curve
A. Product Configuration
Product configuration with tank, resin volume, brine tank and injector
Tank Size
（mm）
Resin
Volume（L）
Flow
Rate
（t/h）
Brine Tank
Size (mm)
Minimum Salt
Consumption for
Regeneration
（Kg）
Injector
Model
φ180×1130
16
0.5
φ250×520
2.4
6302
φ205×1300
25
0.7
φ390×810
4.0
6303
φ255×1390
40
1.2
φ390×810
6.0
6305
φ300×1650
60
1.8
φ450×940
9.0
6306
φ355×1650
100
2.5
φ500×1060
15.0
6308
φ400×1650
120
3.5
φ550×1160
18.0
6309
φ450×1650
150
4.5
φ550×1160
22.5
6310
Attention: The flow rate calculation is based on linear velocity 25m/hr;
the minimum salt consumption for regeneration calculation is based on
salt consumption 150g / L (Resin).
B. Flow Rate characteristic
1) Pressure-flow rate curve
