MODEL
63504-F63
C1
/63604-F63C3/73504-F68
C1
/73604-F68C3
49
3.8.
Assemb
l
y
& Parts

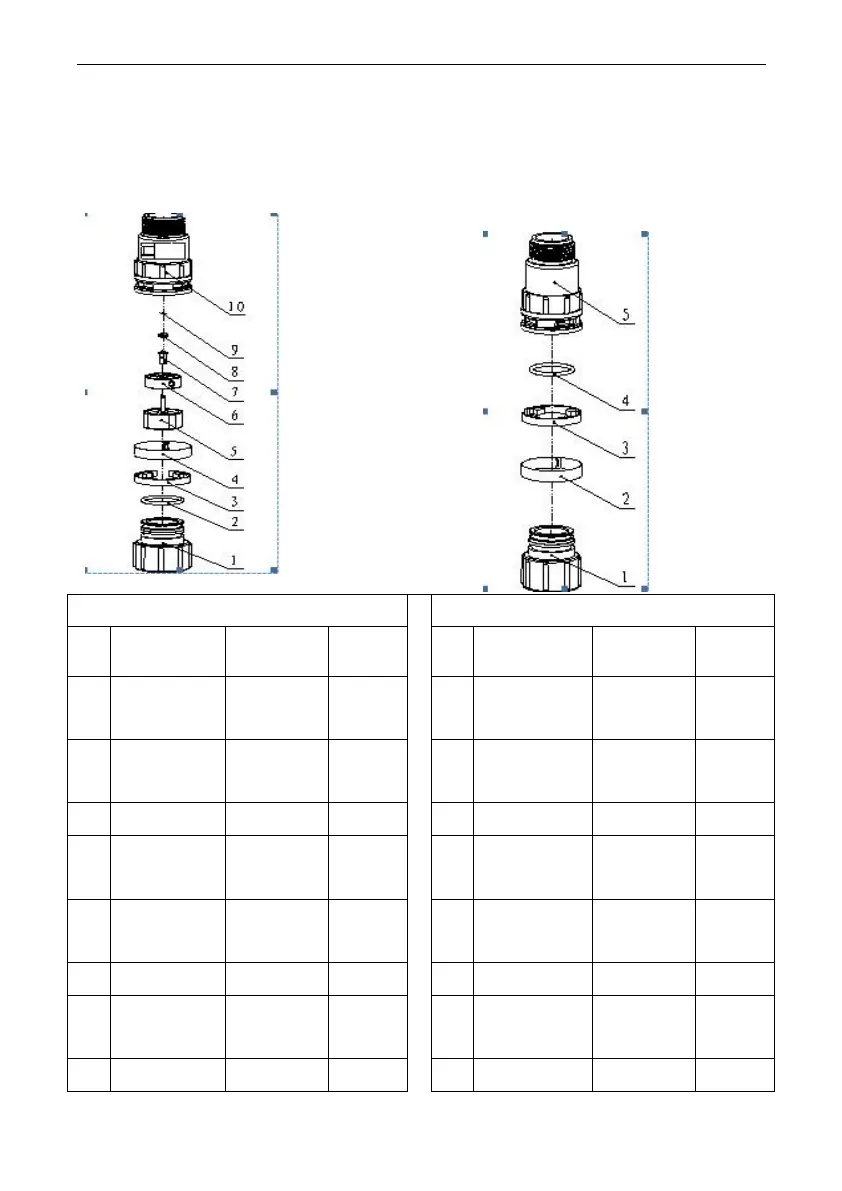

Flow Meter
C
onnector
&
Animated Conn
ector
5447001 Flow
Meter
54
57
00
2
A
n
i
m
at
ed
Connector
5447001 Flow
Meter
5457002
Animated
Connector
Item
No.
Description
Part No.
Quantity
Item
No.
Description
Part No.
Quantity
1
Animated
nut
8945001
1
1
Animated
nut
8945001
1
2
O-ring
28X2.65
8378081
1
2
Ferrule
8270002
1
3
Clip
8270001
1
3
Clip
8270001
1
4
Ferrule
8270002
1
4
O-ring
28X2.65
8378081
1
5
Impeller
supporter
51
15001
1
5
Connector
8458038
1
6
Impeller
5436001
1
7
Rotate
core
821
1001
1
8
Bushing
8210001
1
52
54
Table of Contents
The Program Type Setting (Operation by Professional)
2
Softener System Configuration
2
Parameter Set
2
Catalogue
4
Notice
5
Product Overview
7
Main Application & Applicability
7
Product Characteristics
7
Simple Structure and Reliable Sealing
7
Interval Backwash Times (Suitable for F68)
8
Interlock Function
9
Signal Output
9
Remote Handling Input
10
Pressure Relief Output
10
Maximum Interval Regeneration Days
10
All Parameters Can be Modified
10
Service Condition
11
Product Structure and Technical Parameters
12
Product Dimensions
12
Installation
13
Installation Notice
13
Device Location
13
Pipeline Installation
14
Install Control Valve
15
Install Animated Connector
15
Install Flow Meter
15
Pipeline Connection
15
Install Drain Pipeline
17
Connect Brine Tube
18
Basic Setting & Usage
19
The Function of PC Board
19
Time of Day Indicator
19
Button Lock Indicator
19
Manu/Confirm Button
20
Manual/Return Button
20
Parameter Specifications
21
Process Display
23
Illustration
23
Usage
24
Applications
26
Softener Flow Chart
26
The Function and Connection of PC Board
28
The Main Functions on Main Control Board：
28
Signal Output Connector
29
Control Solenoid Valve
29
Wiring of Solenoid Valve on Outlet
29
Solenoid Valve on Inlet
30
Liquid Level Controller Controls Inlet Pump
31
Liquid Level Switch in Water Tank Controls Inlet Pump
32
Control Inlet Booster Pump
32
Interlock
33
Network System Wiring with Interlock Cable
33
Remote Handling Connector
34
Wiring of Pressure Relief Output
34
Wiring of Remote Input
34
Interlock System
35
Series System
35
System Configuration and Flow Rate Curve
36
Product Configuration
36
B. Flow Rate Characteristic
36
Pressure-Flow Rate Curve
36
Injector Parameter Table
37
Configuration for Standard Injector and Drain Line Flow Control
37
Parameter Settlement
39
Service Timet1
39
Water Treatment Capacity
39
Backwash Time T2
39
Fast Rinse Time T5
40
Exchange Factor
40
Set up Interval Backwash Times
40
Regeneration Time
40
Parameter Enquiry and Setting
41
Trial Running
46
Trouble-Shooting
48
Control Valve Fault
48
Controller Fault
51
Assembly & Parts
53
Flow Meter Connector & Animated Connector
53
5447001 Flow Meter
53
5457002 Animated Connector
53
F63C3/63604 & F68C3/73604 Valve Body Assembly
55
F63G3/63604B and F68G3/73604B Valve Body Assembly
58
