MODEL 63504-F63C1/63604-F63C3/73504-F68C1/73604-F68C3
5
There are two kinds of regeneration modes for time clock type
When the program is set as time clock type by days (such as F63C1,
F68C1, etc.) it can be changed to be by hours by dialing the red switch
on main control board to “1” (Refer to the Figure 13). Pointing to “ON”
means the time clock type service by days.(attention: After dialing the
switch, please restart the power)
Interlock function
It has a function of interlock to realize only one valve in regeneration
but the other valves are in service while several valves parallel in system.
In multi-steps treatment systems such as RO pre-treatment, when
several valves are in series, there is only one valve in regeneration or
washing to ensure pass water all the times while different valves in
regeneration or washing.(Application refer to Figure 3-9)
Signal output
There is a signal output connector on the main control board. It is for
controlling external wiring (Refer to Figure from Figure3-1 to Figure
3-8).

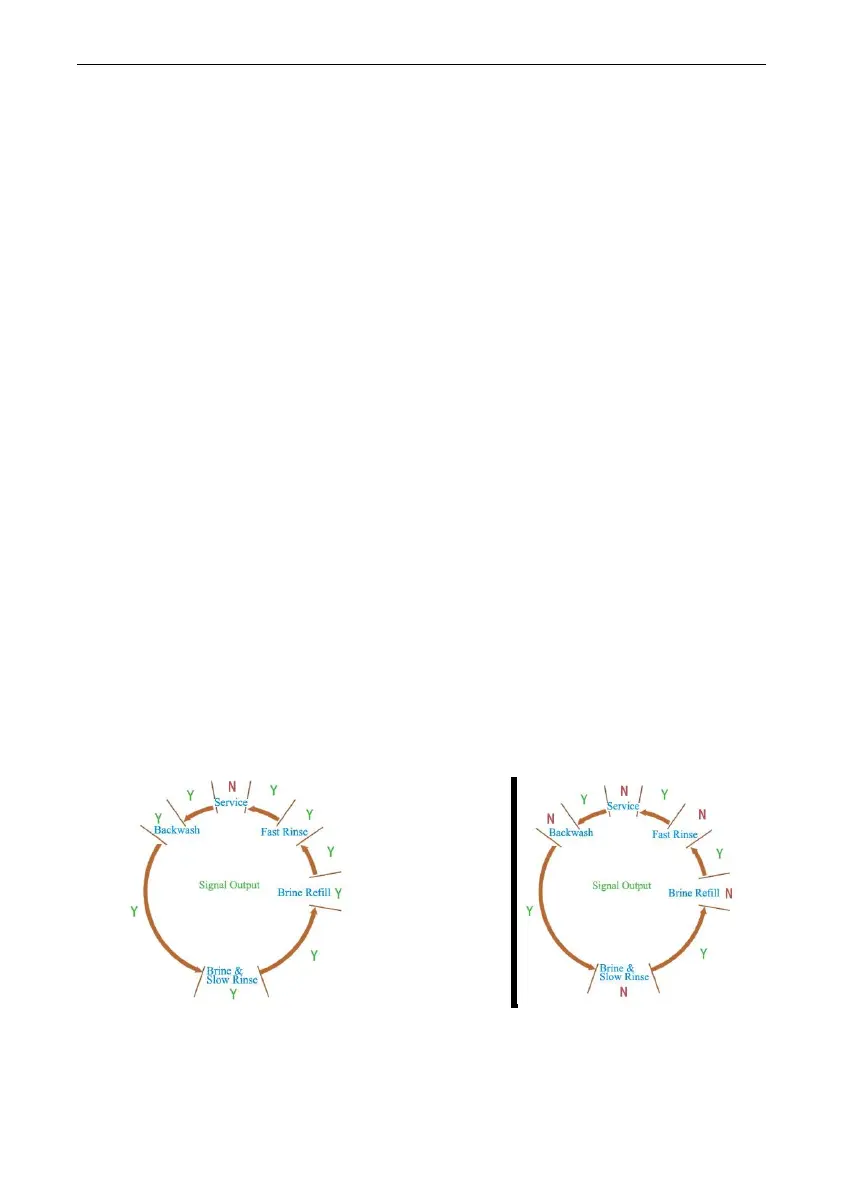

There are two kinds of output modes:
b-01 Mode: Turn on start of regeneration and shut off end of
regeneration; b-02 Mode: Signal available only at intervals of
regeneration cycles and In service.
