MODEL 53515/53615/63515/63615/73515/73615
29

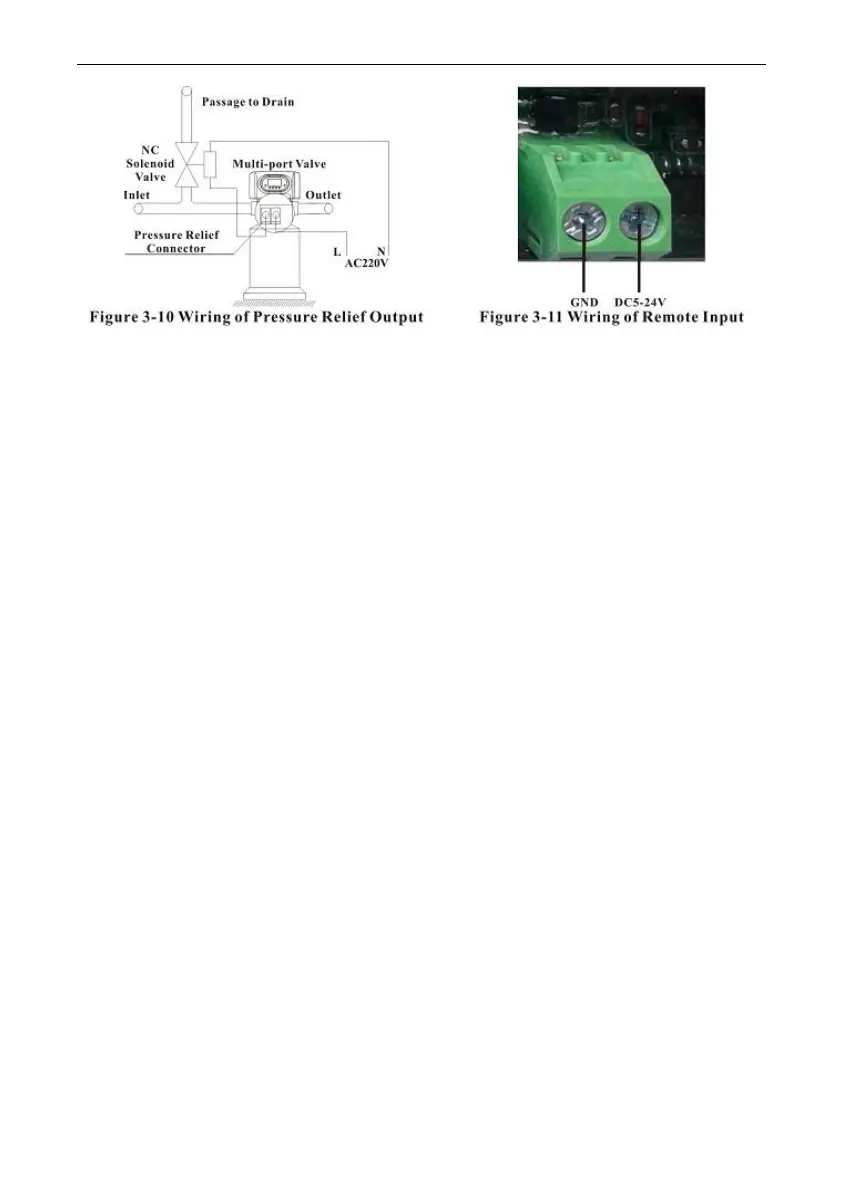

D. Remote Handling Connector
When the valve is used to make pure water or other system that can
be monitored online or connected to a PC, etc., when the conductivity or
other parameters reach the set value or the PC sends a signal and
needs system regeneration, it can be provide a signal to remote handling
connector of main control board by the signal line, which can make the
valve regenerate immediately. The connector receiving the signal is
equivalent to pressing the manual button.
E. Interlock System
2 or more than 2 valves are interlocked connecting in one system
and all valves are in service but regenerate individually. The wiring refers
to Figure 3-12.
