Connecting an Alternate Outdoor Antenna
for AM/FM

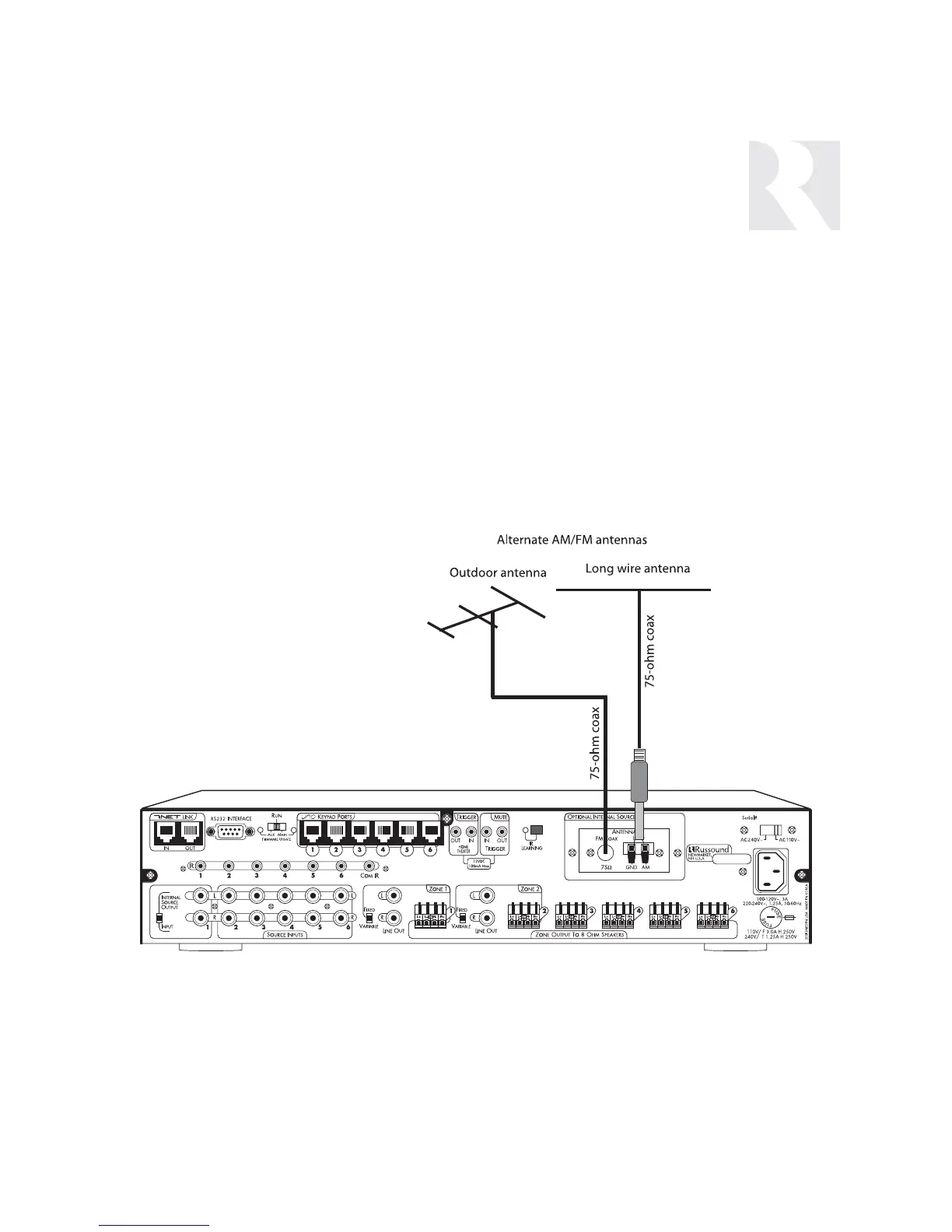

The diagram below depicts a suggested installa-
tion option of an alternate outdoor FM antenna
and AM antenna.
For best performance for AM reception, it is rec-
ommended to use an external outdoor or attic-
mounted long wire antenna for best performance
for AM reception. Use a 75-ohm to 300-ohm
balun at the AM connection on the tuner, and
attach the 75-ohm coax cable to the balun.
For best performance for FM reception, it is rec-
ommended to use an external outdoor or attic-
mounted antenna. Attach the desired length of
75-ohm coax cable directly to the FM connection
on the tuner.
