42
INSTALLER
MAKING CONNECTIONS

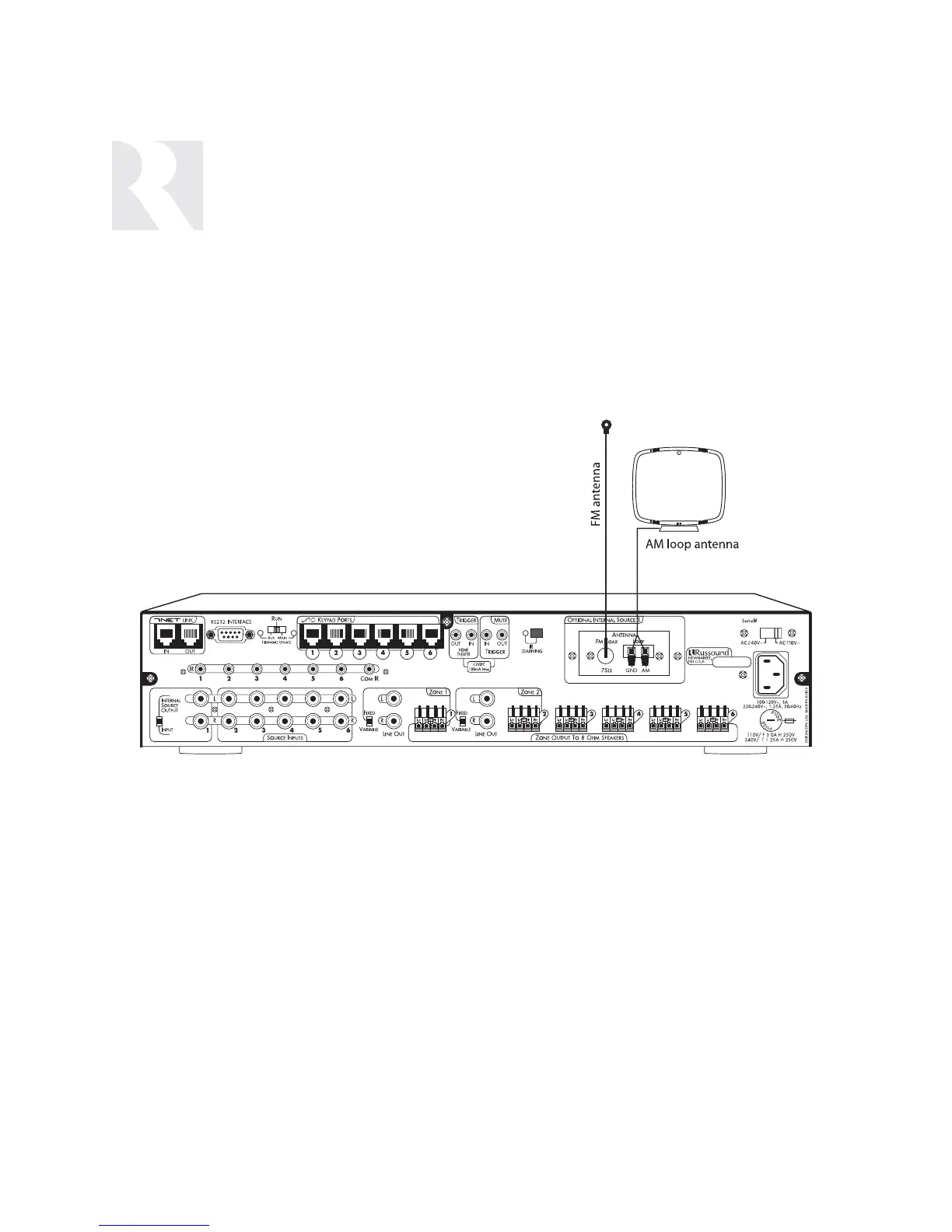

Optional Internal Source - AM/FM Tuner Antennas
AM Antenna
Connect the included loop antenna for AM recep-
tion to the Optional Internal Source panel, attach-
ing the GND (ground) and AM ends to the appro-
priately marked connections.
FM Antenna
Attach the included FM antenna for FM reception
to the Optional Internal Source panel by pushing
the F-type quick-connect termination of the anten-
na onto the FM connection.
