5.3. PI Filter
This section converts the error signal to a control signal with a proportional-integral
(P-I) filter. Front panel controls adjust the overall loop gain, the P-I corner frequency,
and an optional low-frequency gain limit. A toggle switch is used to disable/enable
the output of the P-I filter for acquiring lock. See the next section for more details
about the transfer functions available from this filter. An optional TTL input can be
used to disable the error signal input and hold the P-I filter output at its current value
.

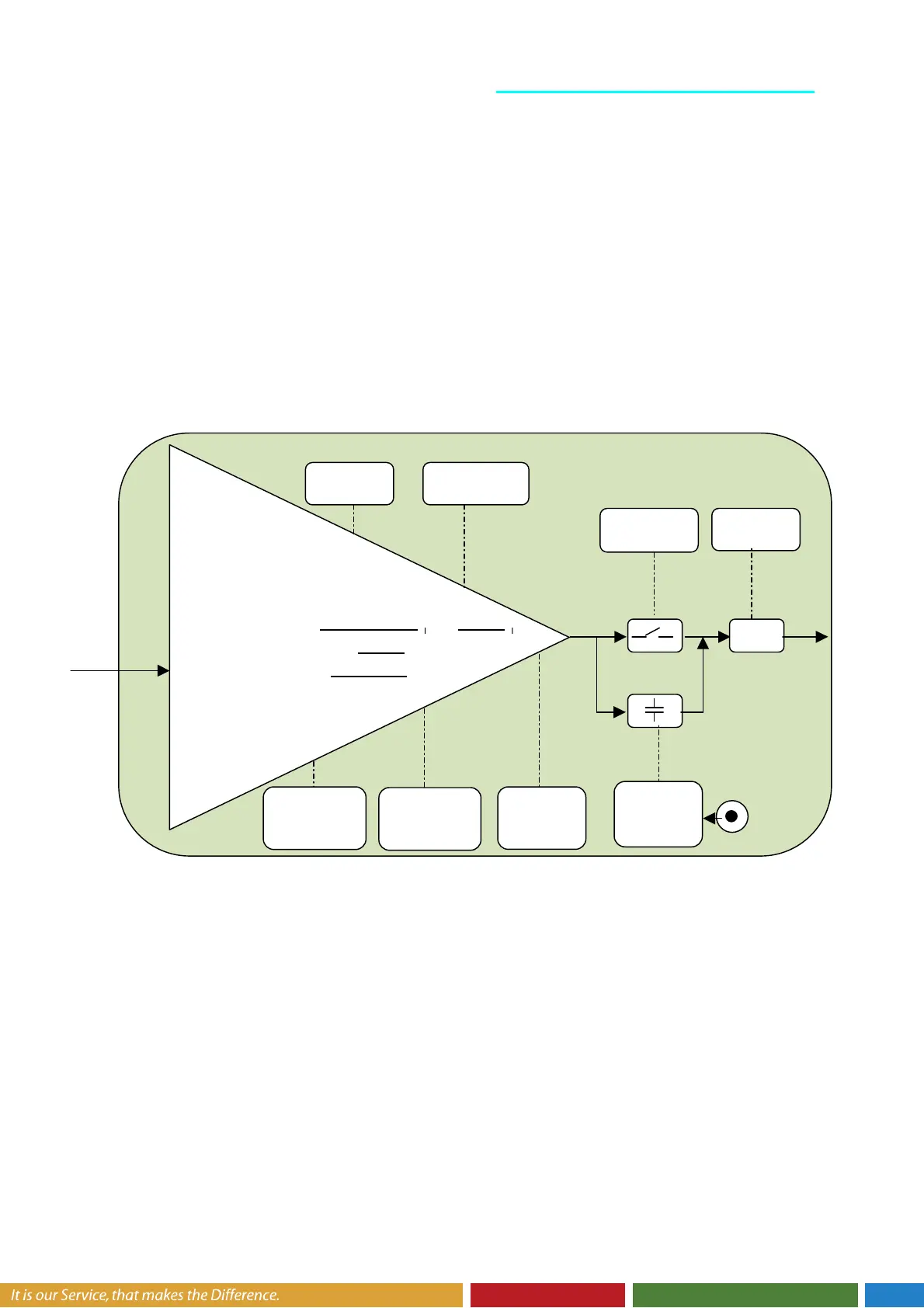

PI Filter
UnLock
Lock PreLock
PI Corner
(fpi)
LF Limit
(g)
Gain
(K)
KLFGLp fpi, K, g, ( )
K
1
g p⋅
2 π⋅ fpi⋅
+
g








1
p
2 π⋅ fpi⋅
+






⋅:=
Limit
Int
Hold
