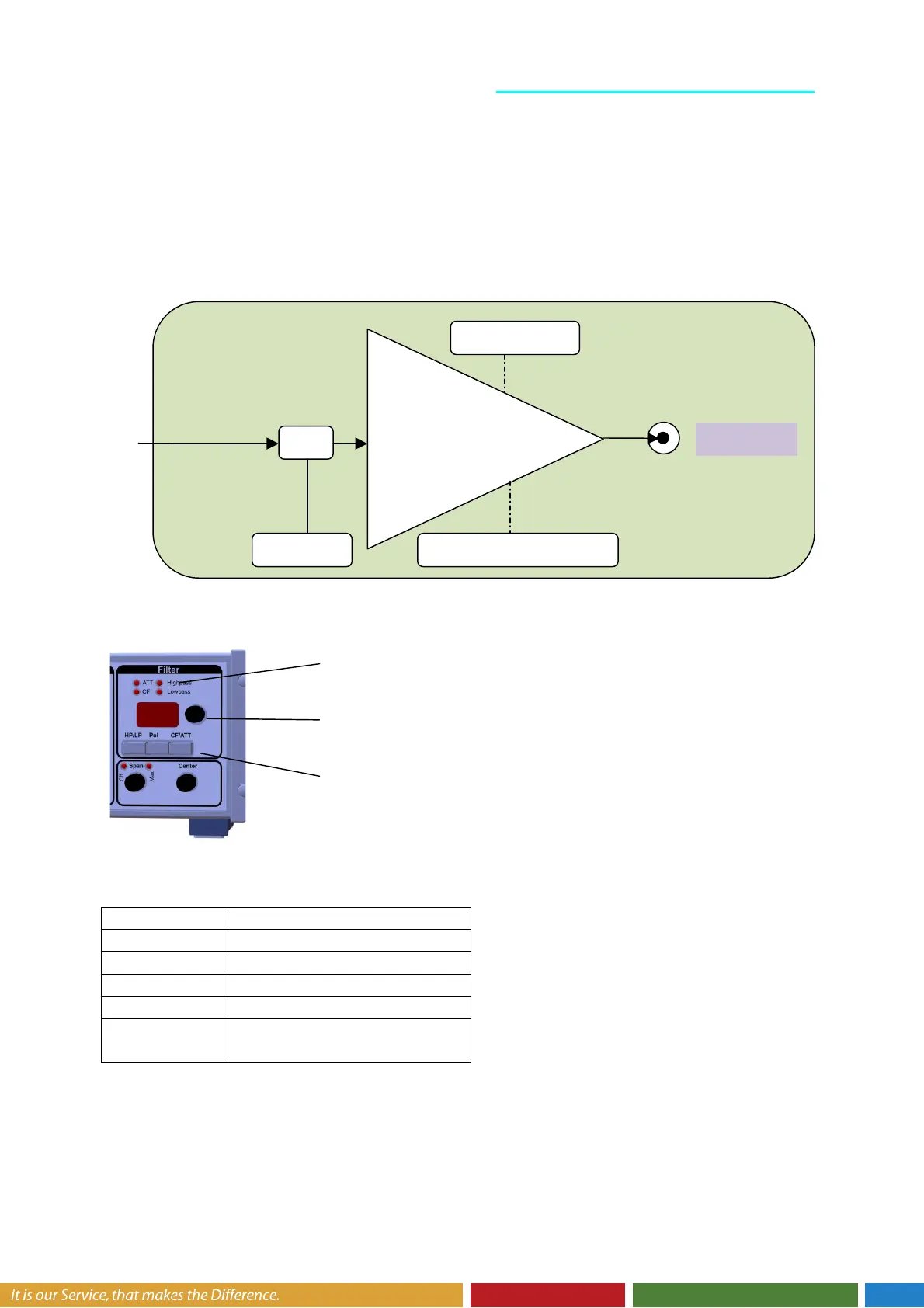

5.4. Post DT1 Filter
This section processed the PI Filter output to a control signal which is given to the Output HP
connector on the rear panel. Front panel controls adjust the corner frequency and attenuation.
A toggle switch is used to invert the polarity. See the next section for more details about the
transfer functions available from this filter.
The DT1 Filter is fully configured on the front panel with the following elements
If one of the parameters needs to be adjusted first the focus switch has to be pressed.
The focus indicator displays the parameter which know now could be adjusted.
Abbreviation Parameter
ATT Attenuation
CF Corner Frequency
HP/LP Highpass /Lowpass
POL Polarity
CF / ATT Corner Frequency /
Attenuation
Output HP
Post DT1 Filter
Polarity
Corner Frequency
A
ttenuation
Filter Focus Indikator
Filter Parameter Adjust rotary Switch
Filter Focus Switch
