6. Remote Interface
6.1. Architecture
The LB2001 is equipped with a USB interface. All settings and information which is of

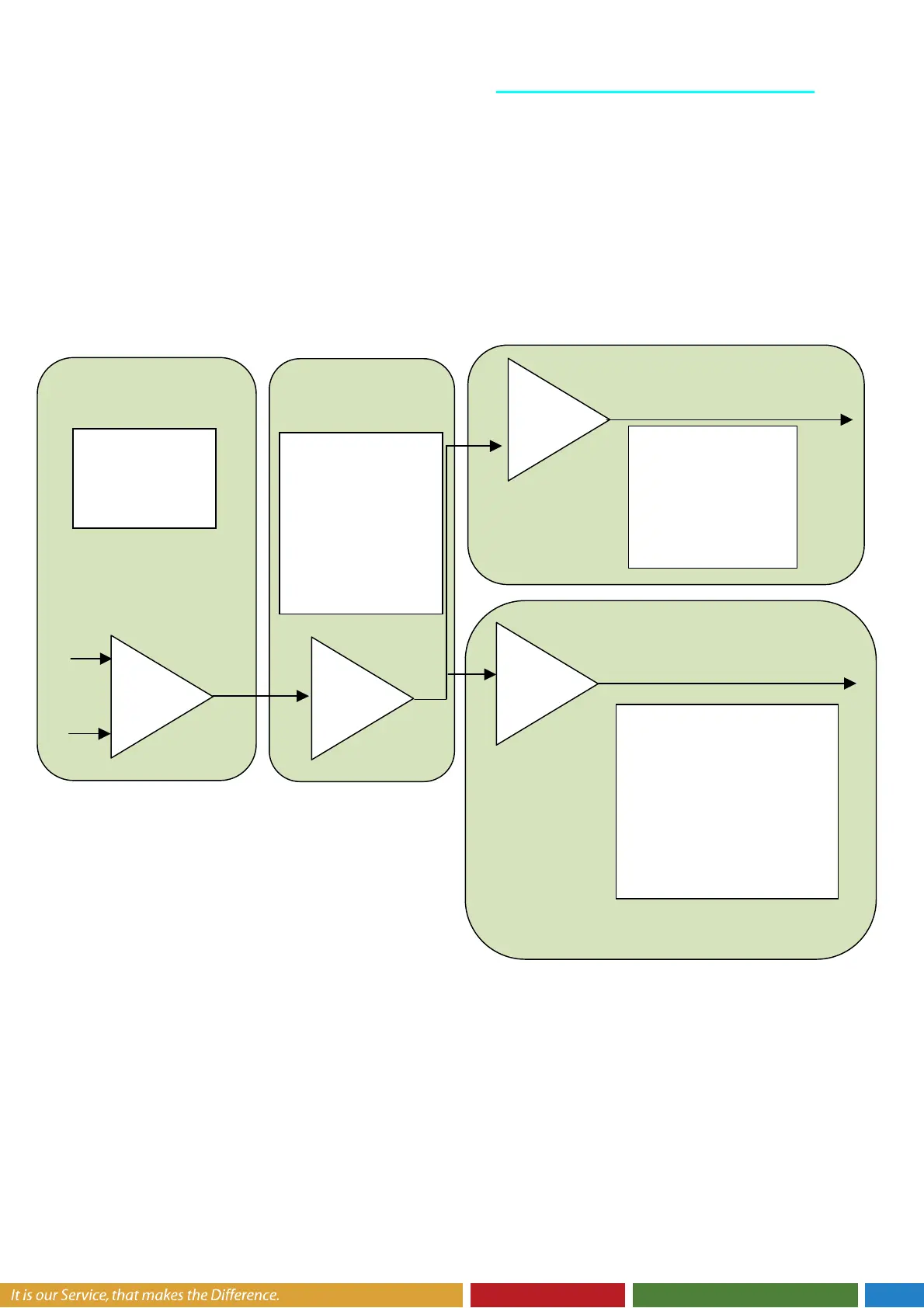

shown on the frontpanel could be reached. The following picture shows the different sections
and how the remote port are placed.
Post PT1 Filter &
Summing Amplifier
Input Section
PI Filter
Post DT1 Filter
Settings:
- Bias Voltage
Readings:
-
Error Voltage
Settings:
- Corner - Frequency
- Low Freq. Limit
- Gain
- Lockstatus
Readings:
- Output Voltage
Settings:
- Corner Frequency
- Attenuation
-Polarity
Readings:
- none
Settings:
- Corner Frequency-
- Attenuation 1
- Attenuation 2
- Polarity
- Scan Factor
- Center Frequency
Readings
- none
