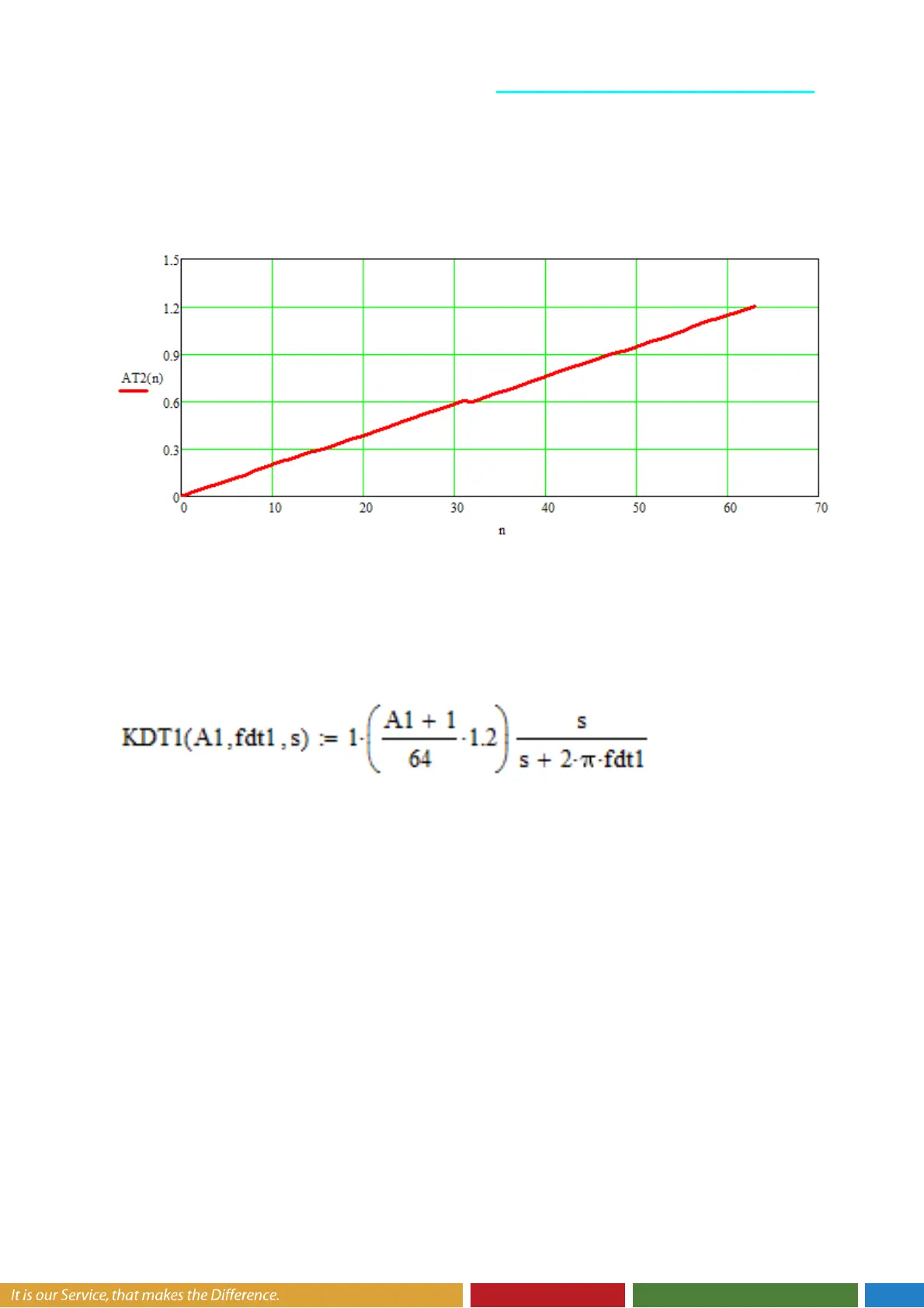

The following graphs showed the relationship between attenuation number and real
attenuation
The attenuator is controlled by a 6 bit number. The range is 0 to 63
The whole frequency response of the DT1 Post filter could be described by following
equation.
