Two attenuators are placed after the filter sections.
The first attenuator (ATT1) is controlled by a 2 bit word.
Possible settings are
0 Attenuation = 0 dB
1 Attenuation = -6 dB
2 Attenuation = -9 dB
3 Attenuation = -20 dB
The second attenuator is controlled by a 6 bit number. The range is 0 to 63

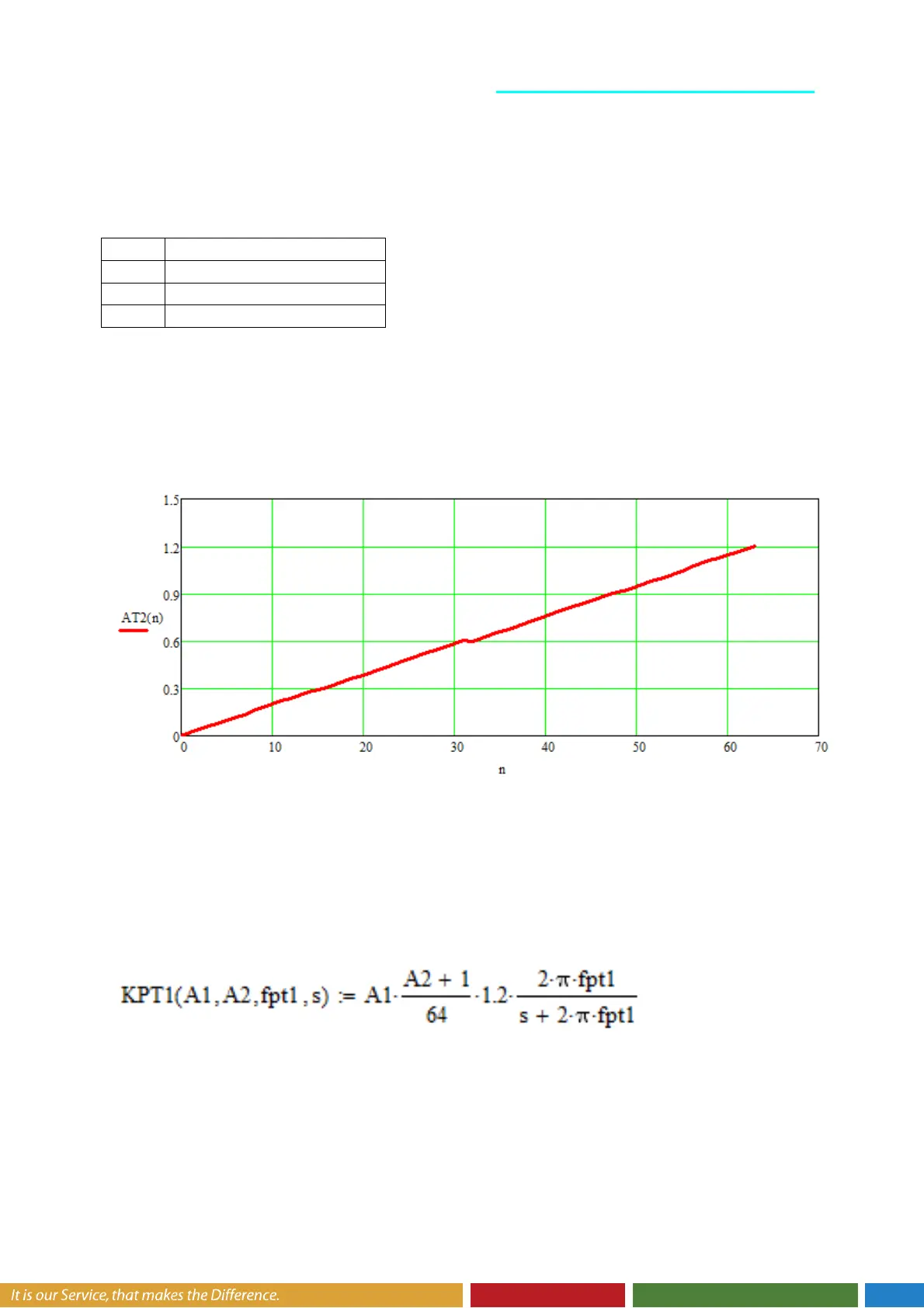

The following graphs showed the relationship between attenuation 2 number and real
attenuation
The whole frequency response of the PT1 Post filter could be described by following
equation.
