Danger
This operation should be carried out by the maintenance
technician.
The "Clock Module" device manages the following functions:
- the times when free dispensing is performed;
- Vending machine start up and shutdown times;
- the times when discounts or price rises should be
applied, and their amount;
- cleaning frequency

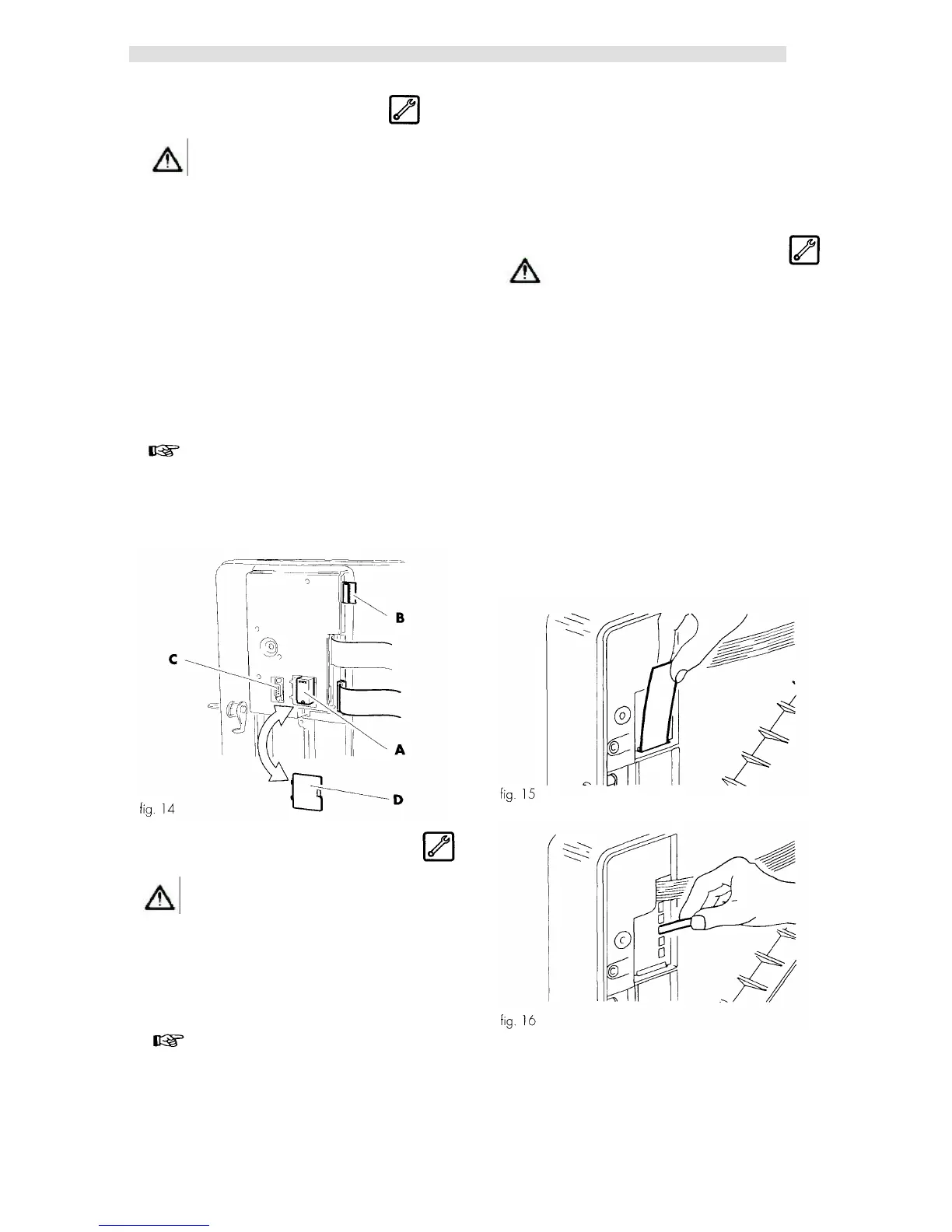

The following operations should be performed to insert the
module:
- disconnect the device from the power supply;
- open the vending machine door (ret. 29, fig. 1) and
remove the small door (ref. D, fig. 14);
- insert the module (ref. A, fig. 14) in the electronic board
connector.
Important
The module (ref. A, fig. 13j is inserted properly when the
reference mark is in the lower part (fig. 14).
- Re-fit the small door (ref. D, fig. 14).
- Re-close the door (ref. 29, fig. 1).
6.6 Insertion of the Nation key
Danger
This operation should be carried out by the maintenance
technician.
The "nation key" contains the following data:
- Language used by the display.
- Software settings connected with the country of
operation.
Important
The vending machine does NOT work without the "nation
key" inserted, it is therefore necessary to insert it.
After having inserted the "nation key", the machine will
refuse the introduction of keys for different countries.
10
To insert the nation key it's necessary to perform the
following operations:
- Disconnect the power supply.
- Open the vending machine internal access door (fig. 14).
- Insert the key (ref. B, fig. 14) in the electronic board
connector.
- Re-close the door.
6.7 Serial port connection
Danger
This operation should be carried out by the maintenance
technician.
A serial port (ref. C, fig. 14) is installed beside the "clock
module" connector.
Through the serial port the vending machine may be
connected to a Personal Computer or to the devices supplied
to the AUTHORIZED SERVICE CENTRES in order to carry
out inspections and programming operations.
6.8 Affixing labels and stickers
Separate the accessory drink labels supplied with the
machine by following the broken line. Apply the adhesive
prices on the drink labels. Insert the tags in the special
housings (fig. 15-16) through the slots located in the internal
part of the door (ref. 29, fig. 1).
6.5 Insertion of the Clock module
