English
6.3 Electrical connection
The vending machine is pre-set for electrical operation with a
single-phase voltage whose value is stated in the
identification tag (Refer to "2.4 Vending machine
identification") (fig. 2).
Danger
The connection point of the electric outlet must be
located in a place that can be easily reached by the
user, so that he can easily disconnect the vending
machine from the power supply when required.
Before connecting, make sure that:
• The mains supply voltage of the outlet the vending machine
is connected to corresponds to the one indicated on the
tag.
• The electric installation of the place where the vending ma-
chine is going to be installed complies with the laws in
force, and has the characteristics enabling it to stand the
required maximum load indicated on the tag.
Check the electric installation's compliance with the safety
rules in force; in case of doubt, require an accurate electric
installation survey by qualified professional staff.
Danger
The use of adapters or patch cords is forbidden.

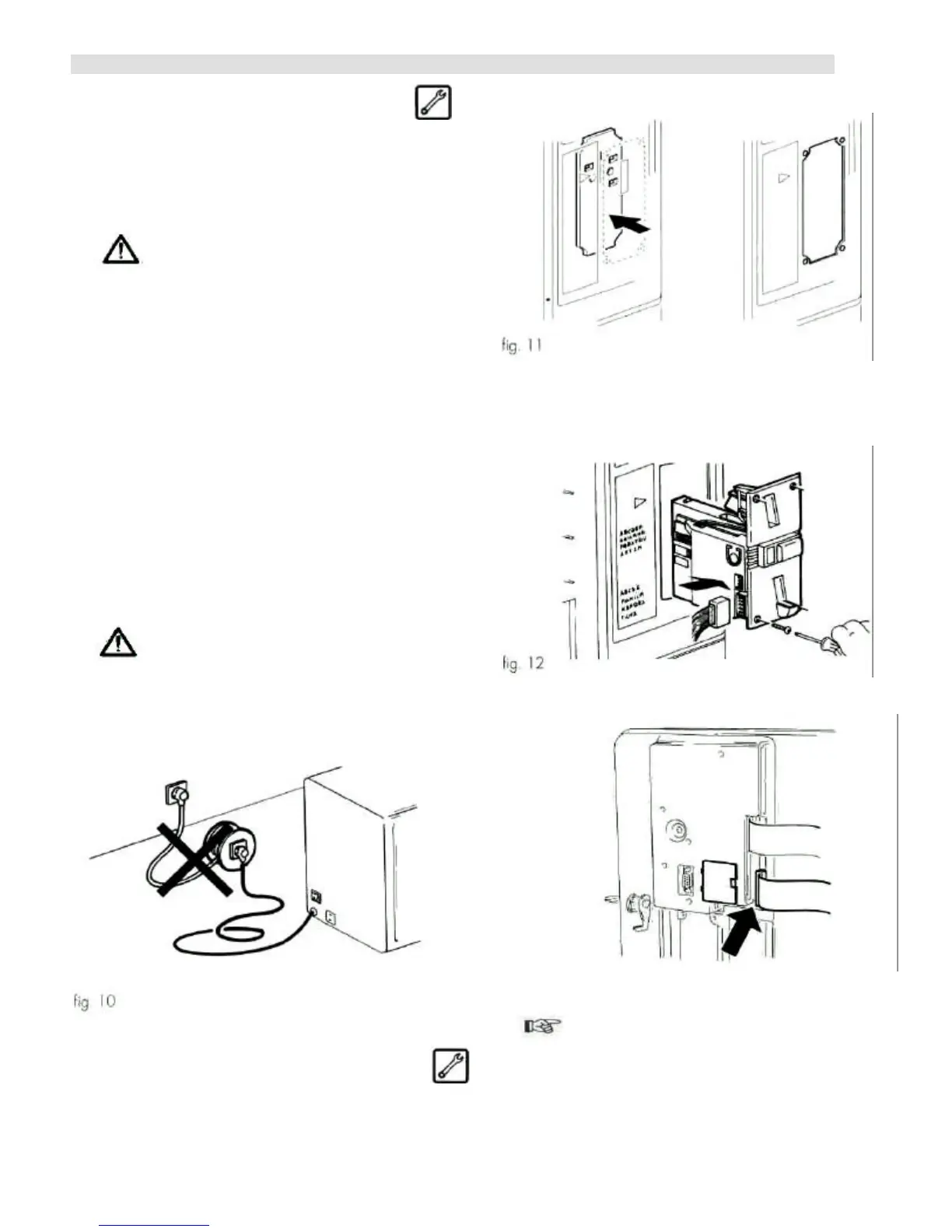

6.4 Fitting the PARALLEL 12 V d.c. coiner
Only 1 2 V d.c. parallel or mechanical coiners may be
used on this vending machine.
- Remove the token accepting device support (fig. 11).
- Drill a hole on the keypad panel (fig. 1 1).
- Insert the coiner and fix it by using the 4 supplied screws
with nuts (fig. 1 2).
- Connect the flat cable to the coiner (fig. 12).
- Connect the flat cable to the electronic board (fig. 1 3).
Important
The Company disclaims all responsibilities for
damages to vending machine, properties and people
arising out of improper installation of the payment
system; this responsibility falls directly on whoever
performed the fitting.
9
fig. 13
