English
5 - COMMAND AND
INSTRUMENT DESCRIPTION
Important
The vending machine is delivered with the dispensing
keys already programmed on standard values.

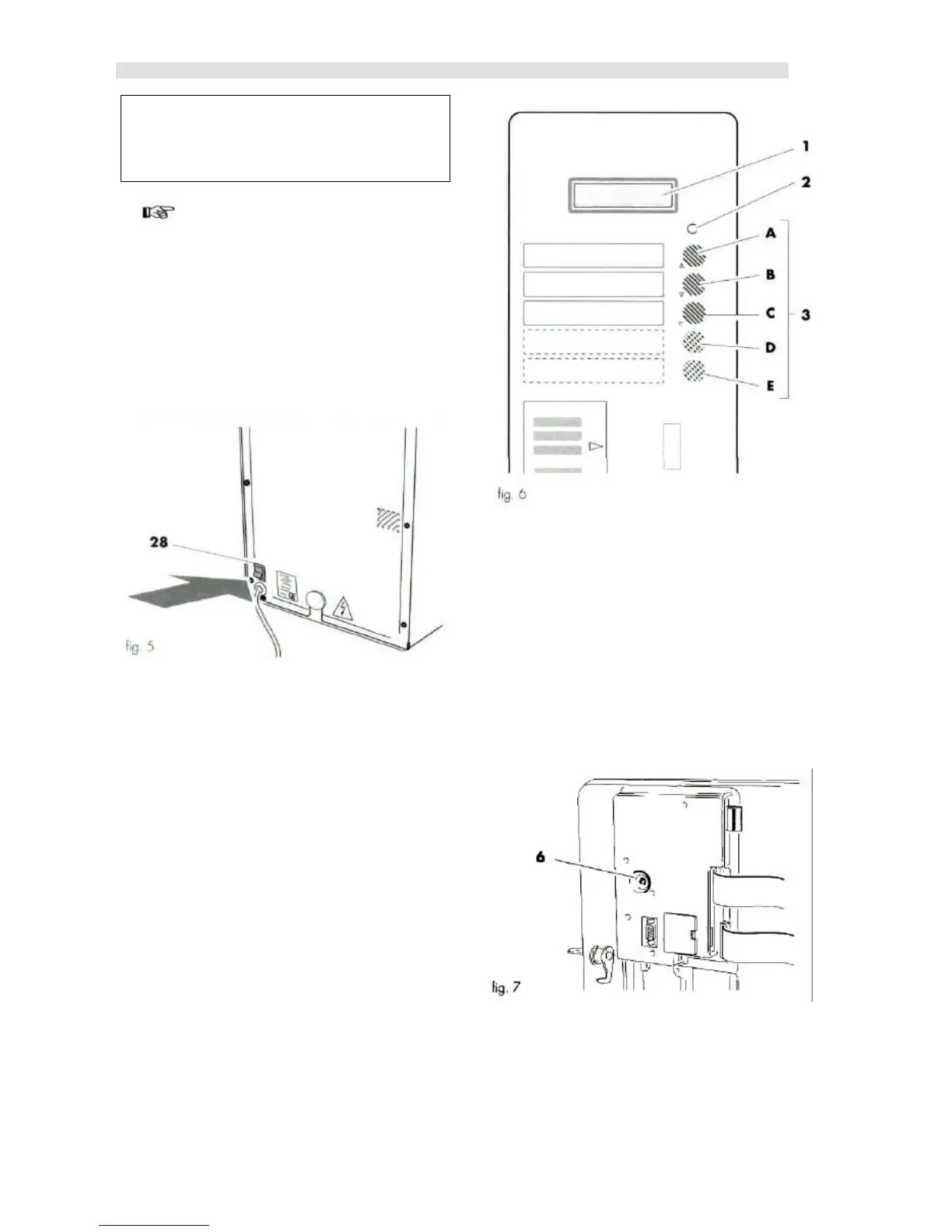

Main switch (ref. 28, fig. 5)
it's located in the lower right back side of the vending ma-
chine.
On the "I" position it turns the vending machine on
(enabling electric functions)
On the "0" position it turns the vending machine off
(disables electric functions)
Keypad D.A. 5P (ref. 3 fig. 6]
It's composed of 5 re-programmable keys that when pressed
control the dispensing of the same number of drinks,
identified from top to bottom as A - B - C - D - E (ref. 3, fig.
6).
The correspondence between key and dispensed drink is at
the User's discretion.
The A - B - C - D - E keys (ref. 3, fig. 6) are also used to
perform maintenance.
(refer to "7 - Programming")
Keypad D.A. 3P (ref. 3 fig. 6)
It's composed of 3 re-programmable keys that when pressed
control the dispensing of the same number of drinks,
identified from top to bottom as A - B - C.
The correspondence between key and dispensed drink is at
the User's discretion.
The A - B - C keys (ref. 3, fig. 6) are also used to perform
maintenance.
(refer to "7 - Programming")
Display (ref. 1, fig. 6]
It's composed of 2 lines with 16 characters each, and has
the duty of displaying the messages relating to the
operations (in progress or to be performed) and the
possible out-of-service conditions.
Red indicator light (ref. 2, fig. 6)
When the light is on it indicates that the vending machine
is not ready for drink dispensing.
In any case the display (ref. 1, fig. 6) supplies the
indications on vending machine operative or out-of-service
status.
Reset key [ref. 6, fig. 7]
It's located on the internal part of the door and may
perform the following functions:
a) Resetting "OUT OF SERVICE" (out -of-service)
indications (refer to " Display messages").
b) Water circuit filling (refer to " 6.2 Water connection").
7
