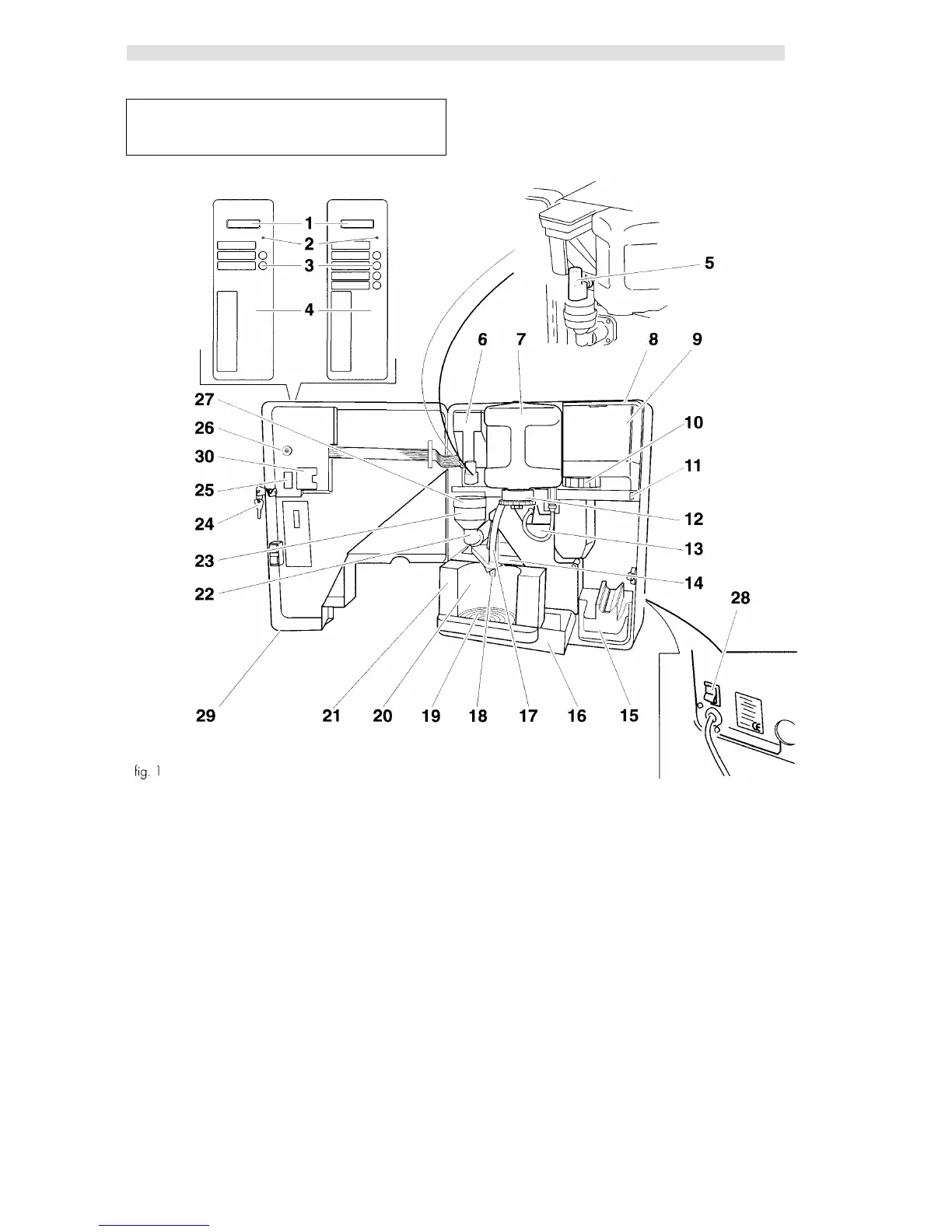

MAIN PARTS
1 Display 16 Drip tray
2 Fault light 17 Hot water nozzle
3 Keys(D.A. 3P-D.A. 5P) 18 Drink dispenser
4 Coin slot 19 Drain grill
5 Silicon bushing (on y D.A. 5P) 20 Dispensing slot
6 Soluble product container (solo D.A. 5P) 21 Grill stand
7 Water tank 22 Mixing chamber (only D.A. 5P)
8 Coffee container cover 23 Instant product funnel (only D.A. 5P)
9 Coffee bean hopper 24 Door key
10
Grinder selecting knob 25 Serial port
11
Opening for safety micro-switch bypassing 26 RESET key
12
Tank cover with valve 27 Instant product funnel cover (only D.A. 5P)
13
Coffee unit 28 Main switch
14
Coffee grounds tray 29 Internal access door
15
Coin/token box 30 Clock module door
3
