Saeco CAP020B - Page 110

English
10
110
Mod. DUO

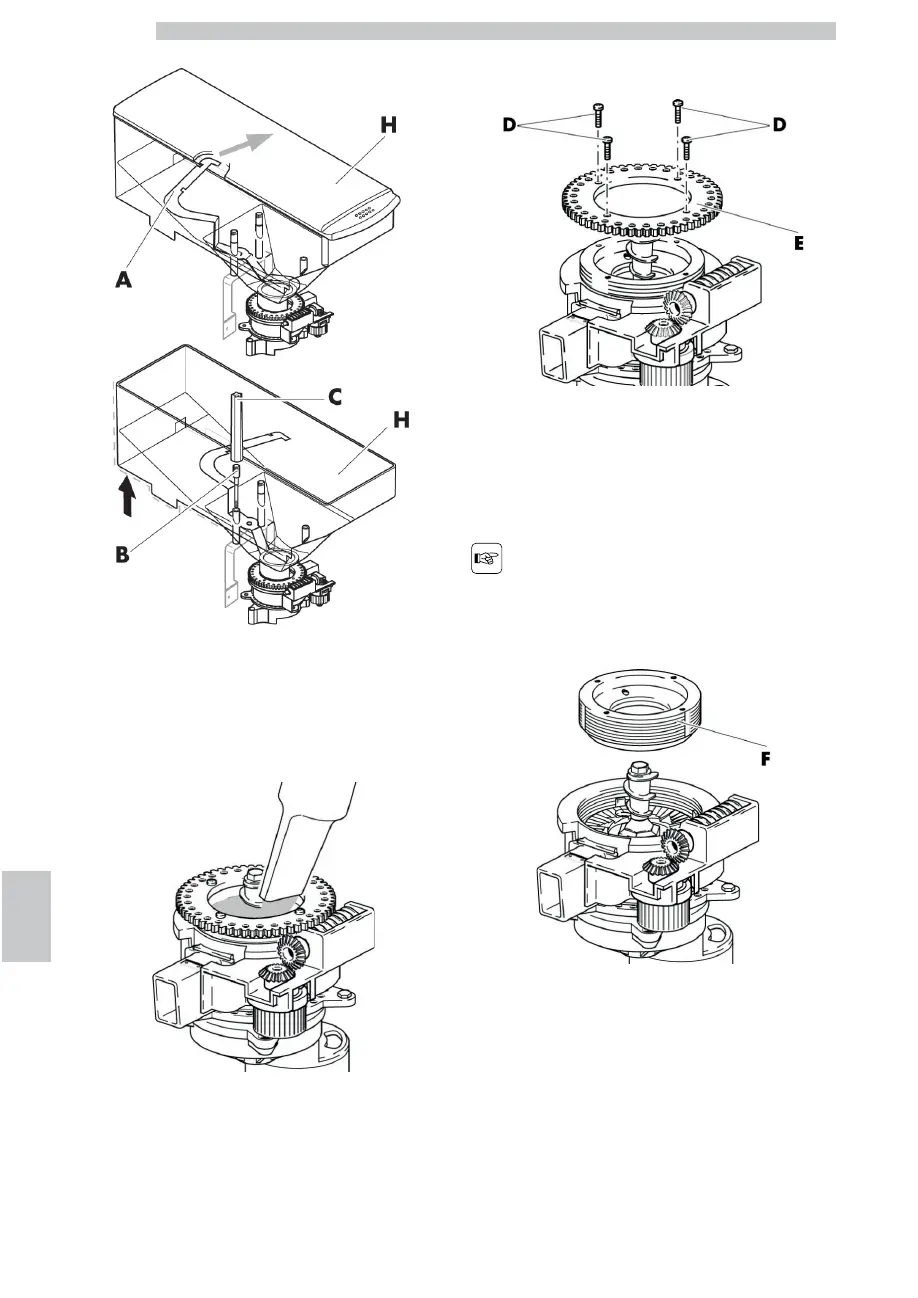

A partition
B screws
C supplied tool
H coffee bean hopper
• Remove the coffee beans on the coffee grinder top with a
vacuum cleaner.
• Remove the screws.
• Remove the gearwheel.
D screws
E gearwheel
• Unscrew and remove the adjustment ring nut and clean
both grinders with a vacuum cleaner and a brush.
Check the grinders wear.
In case of clear damages,
replace them.
F adjustment ring nut
Follow the instructions below, to re-assemble the coffee grinder:
• Screw the adjustment ring nut until the limit stop, then
loosen it by 1/2 turn.
