Make sure that the power
cord plug is easily
reachable after installation.
The electric socket or the
all-pole switch which the
appliance is connected to
must be easily accessible
for the user, so that the
user will easily disconnect
the appliance from the
electric mains when
necessary.
If damaged, the power
cord must be replaced by
the Maintenance
Technician only.
• Insert the electric power cord into the proper hole (see
chapter “Unpacking and Positioning”).
• Connect the appliance to the mains by means of the
power cord.
Check that the electrical
cables of the system are
proportioned to machine
input.

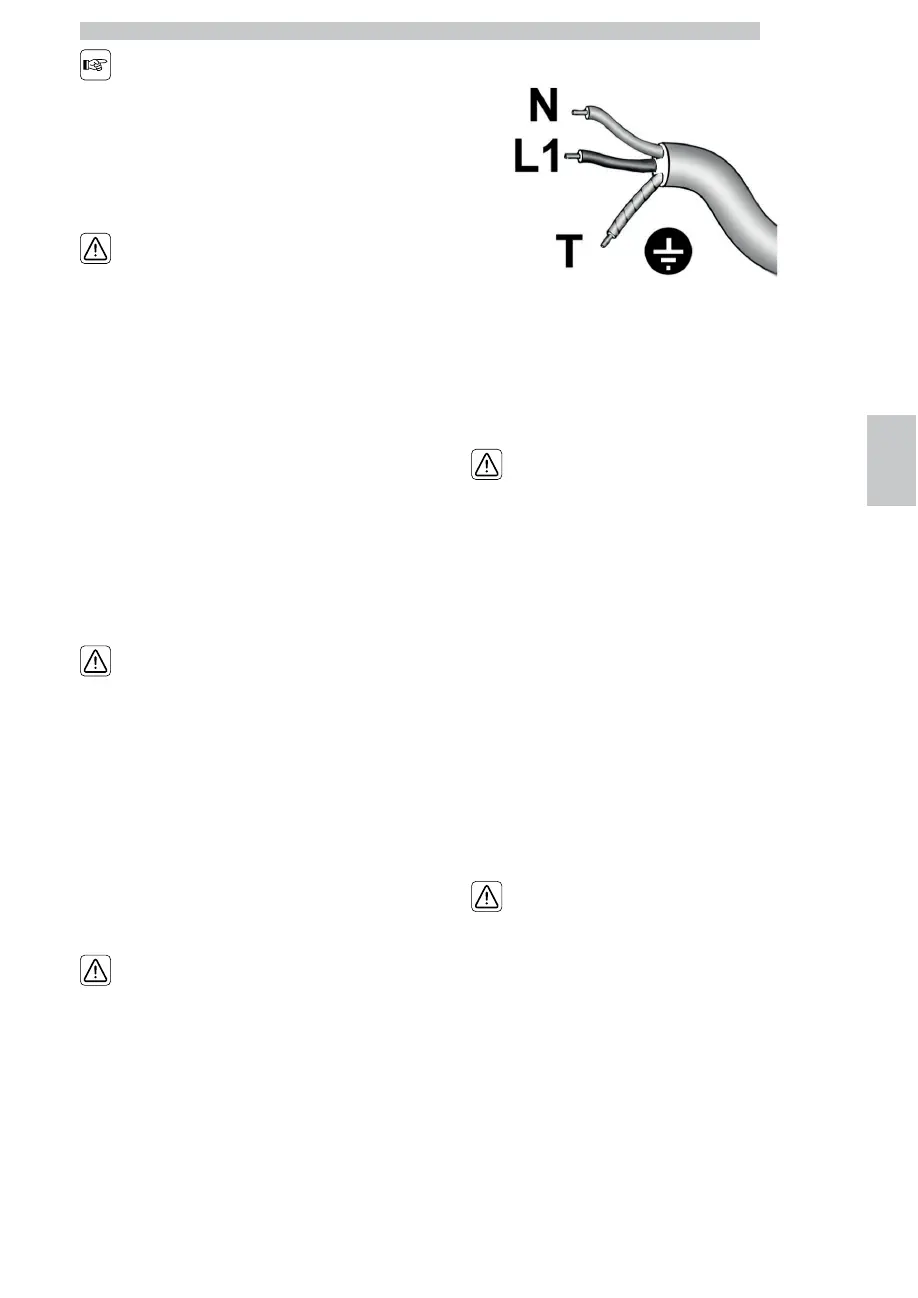

- Power cord type H05VVF section 3x2,5 mm2
N Neutral – Blue
L1 Phase – Brown
T Ground – Yellow/green
- Connection of the two phase power supply plug 400 V 2
N~
Depending on the
regulations in force in the
Country where the machine
is being used, the cable
connecting to the power
supply has to be pre-set or
equipped with an all-pole
switch (with a minimum
contact opening of 3 mm),
or with a plug complying
with the same regulations.
The all-pole switch must
be suitable for machine
input and be able to detect
all voltage polarities.
