Saeco D.A. 10P Plus - Page 3

3
English
15
31
32
33
30

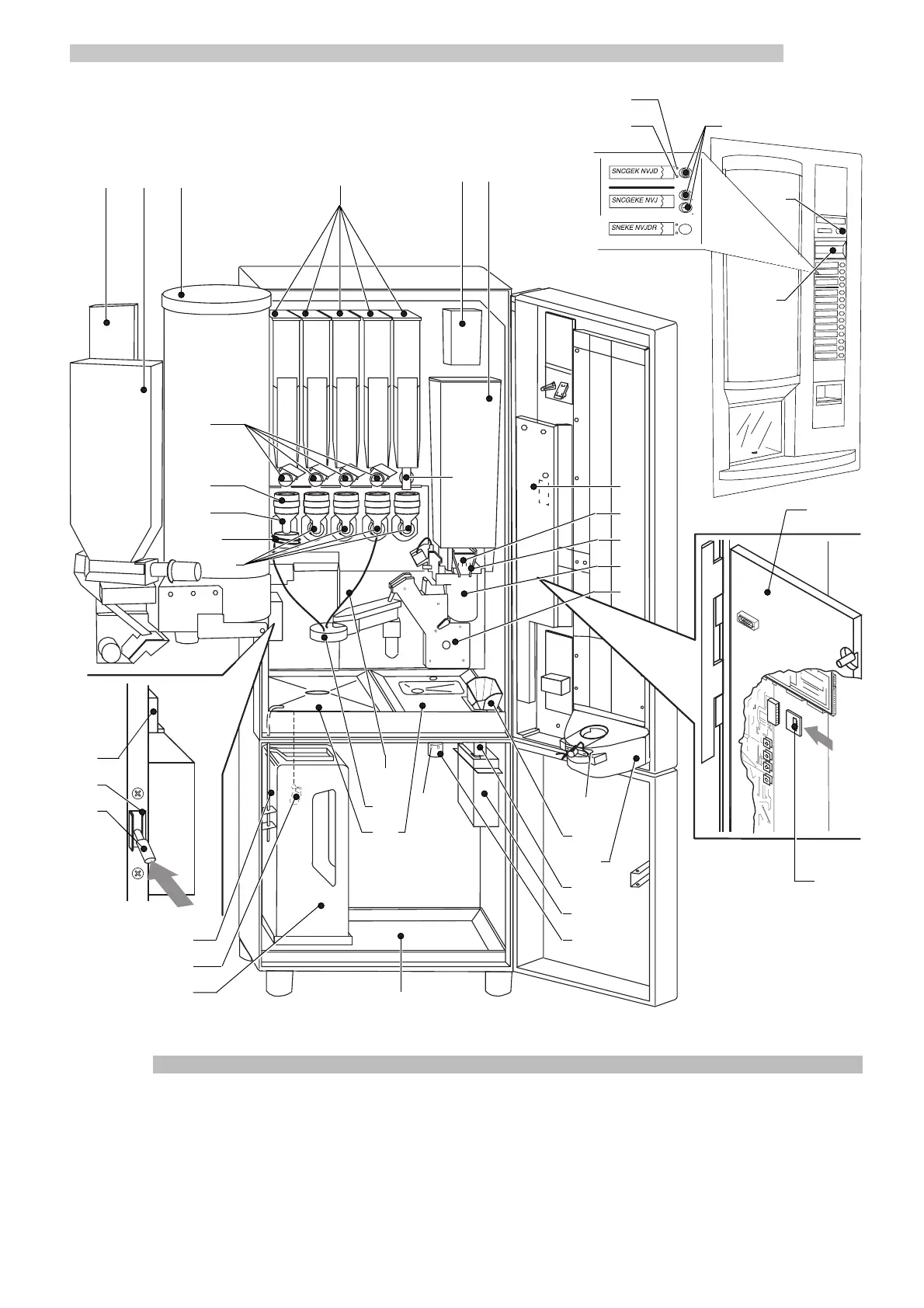

Legend
1. Cup dispenser
2. Stir stick dispenser
3. Sugar bin
4. Soluble product bins
5. Water reservoir
6. Coffee bean hopper
7. Instant product bin latches
7A. Funnel for decaffeinated coffee
8. Whipper caps
9. Whipper bowls
10. Spiral mixer
10A. Whipper funnels
11. Dispensing tubes
12. Beverage dispensing arm
13. Drip tray
14. Drip tank
15. Change button
16. Nation key
17. Grinder setting ring
18. Bean hopper slide gate
19. Grinder
20. Brew group
21. Coin chute
22. Safety disabling micro
23 Safety disabling key
24. Beverage dispensing area
25. Coin box
26. Cabinet drip tray
27. Used grounds bag support tube
28. Used grounds bag spring
29. Counter
30. Display
31. Pre-selection buttons
32. Green LEDs
33. Red LEDs
34. Drip tank level float
35. Coin chute support
36. Coiner panel
37. Dispensing area holding spring
38. Lock rod
39. Panel cover
Fig.0
29
22
23
38
34
14
11
12
13
26
28
37
21
24
35
25
27
16
39
36
17
18
19
20
2 31
4
56
7
8
9
10
10A
7A
