CapaciTorr D1000,
NexTorr D300-5, NexTorr D500-5, NexTorr D1000-10, NexTorr D2000-10

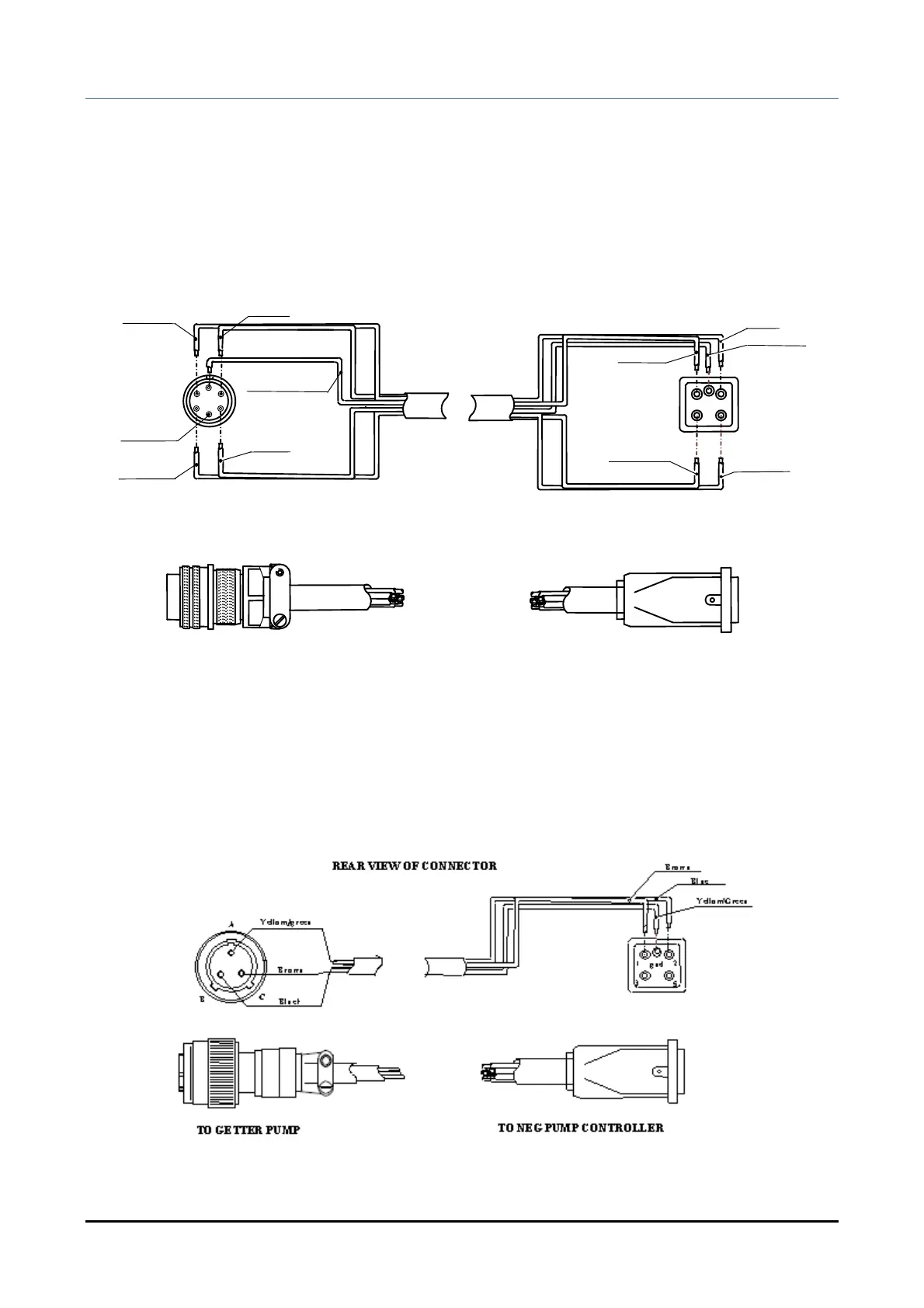

For this pump which are equipped with a dedicated electrical connector, use the output supply
cable shown in figure:
F
C
D
A
E
B
BLUE
BROWN
ALUMEL
CHROMEL
YELLOW/GREEN
2
1 gnd
3
5
YELLOW/GREEN
BLUE
BROWN
ALUMEL
CHROMEL
TO NEG PUMP CONTROLLER
TO GETTER PUMP
REAR VIEW OF CONNECTORS
NOT USED
NexTorr D100-5, NexTorr D200-5
For this pump which are equipped with a dedicated electrical connector, use the output supply
cable shown in figure:
