Sage SIP - Installation Depth Chart

O p e r a t i o n s a n d I n s t r u c t i o n M a n u a l
15
S A G E M E T E R I N G , I N C .
I
NSTALLATION DEPTH CHART

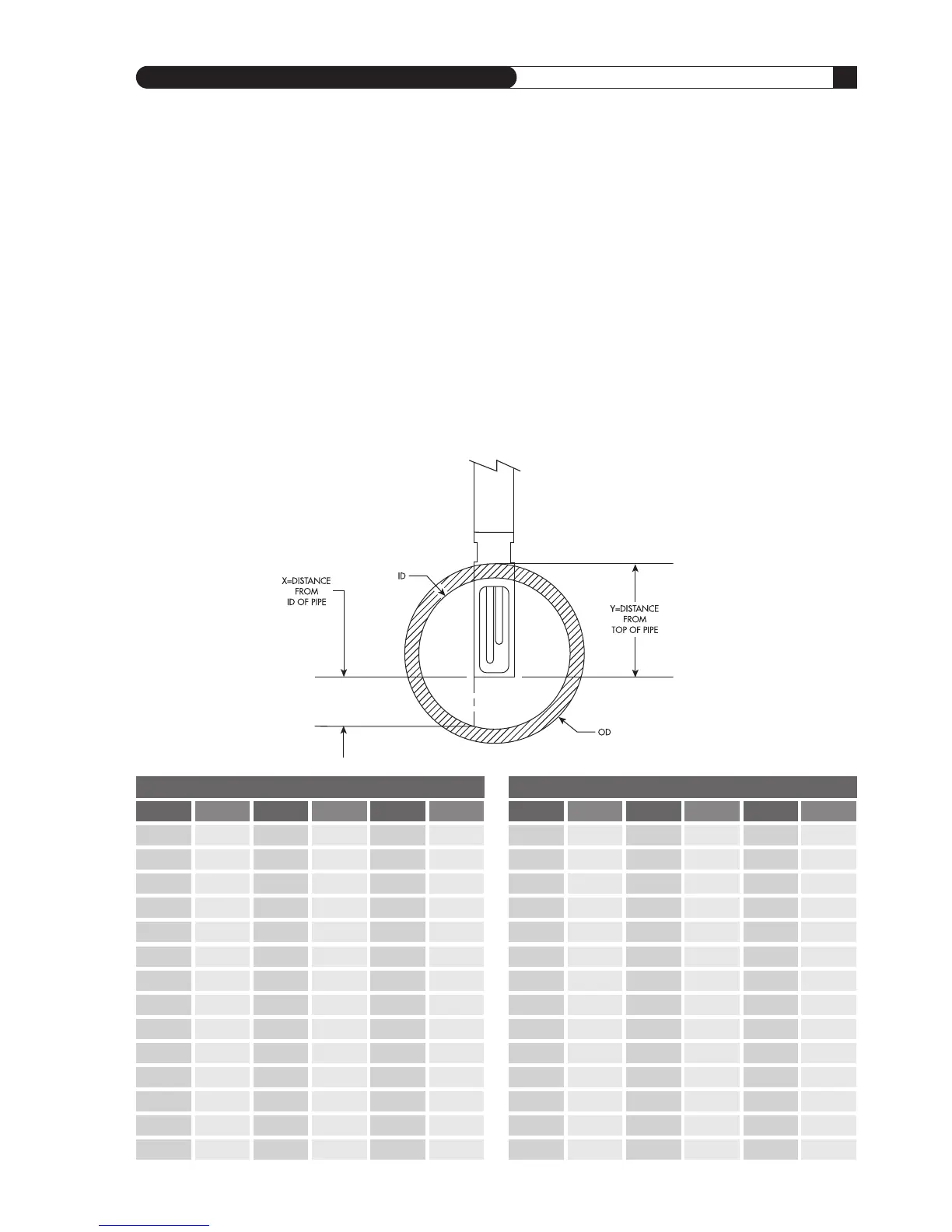

Methods for Probe Insertion to Pipe Center
ME THO D 1
Using charts below, select pipe size (column 1),
determine X. Insert probe until the end touches the
bottom of the pipe (ID), mark probe as it exits top
of fitting. Lift probe distance “X” and tighten com -
pression fitting.
ME THO D 2
Using charts below
1
, select pipe size (column 1),
determine Y. Subtract Y from the factory supplied
probe length. That difference Z (see drawing on page
14) should be outside of the pipe, and is measured
from the bottom of the enclosure of the probe weld
to pipe OD.
PIPE SIZE OD ID XYPIPE AREA
1"
1.5" 1.900 1.500 .15" 1.56" 0.0123
2" 2.375 1.939 .35" 1.82" 0.0205
2.5" 2.875 2.323 .55" 2.07" 0.0294
3" 3.500 2.900 .80" 2.38" 0.0459
4" 4.500 3.826 1.30" 2.86" 0.0798
6" 6.625 5.761 2.25" 3.95" 0.1810
8" 8.625 7.625 3.25" 4.90" 0.3171
10" 10.750 9.750 4.25" 6.00" 0.5185
12" 12.750 11.374 5.13" 7.00" 0.7056
14" 14.000 12.500 5.70" 7.50" 0.8522
16" 16.000 14.312 6.60" 8.60" 1.1172
18" 18.000 16.124 7.50" 9.60" 1.4180
24" 24.000 21.562 10.25" 12.60" 2.5357
S C H E D U L E 4 0 P I P E
2
S C H E D U L E 8 0 P I P E
2
PIPE SIZE OD ID XYPIPE AREA
1"
1.5" 1.900 1.610 .20" 1.56" 0.0141
2" 2.375 2.067 .40" 1.82" 0.0233
2.5" 2.875 2.469 .60" 2.07" 0.0332
3" 3.500 3.068 .90" 2.38" 0.0513
4" 4.500 4.026 1.40" 2.86" 0.0884
6" 6.625 6.065 2.40" 3.95" 0.2006
8" 8.625 7.981 3.40" 4.90" 0.3474
10" 10.750 10.020 4.40" 6.00" 0.5476
12" 12.750 11.938 5.50" 7.00" 0.7773
14" 14.000 13.124 6.00" 7.50" 0.9394
16" 16.000 15.000 7.00" 8.60" 1.2272
18" 18.000 16.876 8.00" 9.60" 1.5533
24" 24.000 22.625 10.75" 12.60" 2.7919
C O N S U L T F A C T O R Y
C O N S U L T F A C T O R Y
1
For other Pipe Schedules, such as Schedule 10, contact Sage, however the Y dimension will
be the same for any Schedule Pipe
2
The 1" Pipe Size needs to have the Probe “Bottomed Out” (option “BOT"); the calibration
method for the 1
1
⁄2 " Pipe is either as shown below, or with option “BOT”
