Sage SIP - Remote Bracket Layout

O p e r a t i o n s a n d I n s t r u c t i o n M a n u a l
37
S A G E M E T E R I N G , I N C .
REV. 16-SIP/SRP

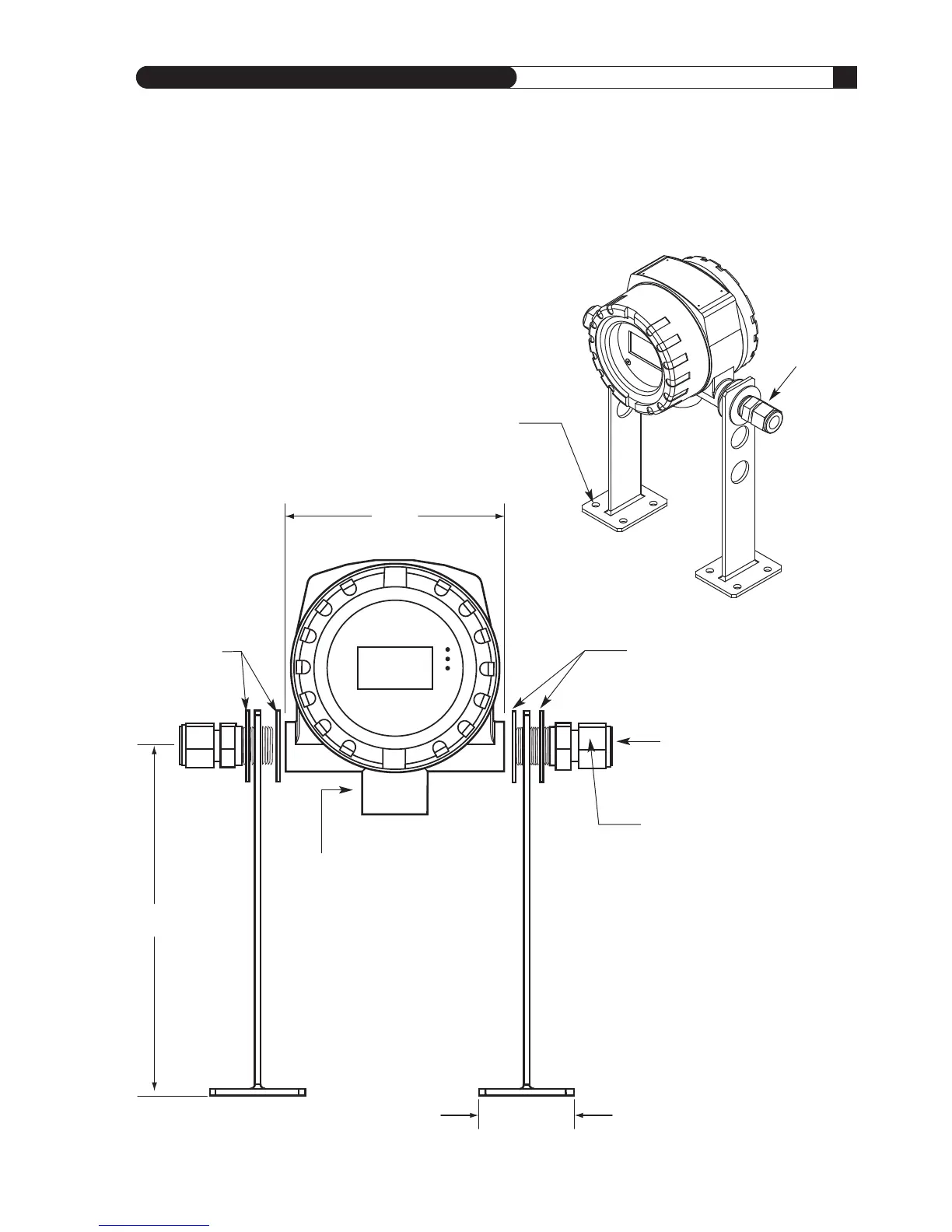

Sage Prime Remote Bracket Layout
MOUNTING OPTIONS
1
. Overhead with U-bolts (customer supplied) across
pipe on each leg
2. Vertically, as shown
3
. Horizontally
4.61
7.38
2.00
CORD GRIP or
NPT PLUG (as req’d)
BOTH SIDES
WAVE
WASHER
WAVE
WASHER
.266 DIA
HOLES
1/2" NPT
User Entry
for Wiring (2)
3/4" NPT for
Remote Cable
1/2" NPT User Entry
for Wiring (2)
