S A G E M E T E R I N G , I N C .
O p e r a t i o n s a n d I n s t r u c t i o n M a n u a l
36
REV. 16-SIP/SRP

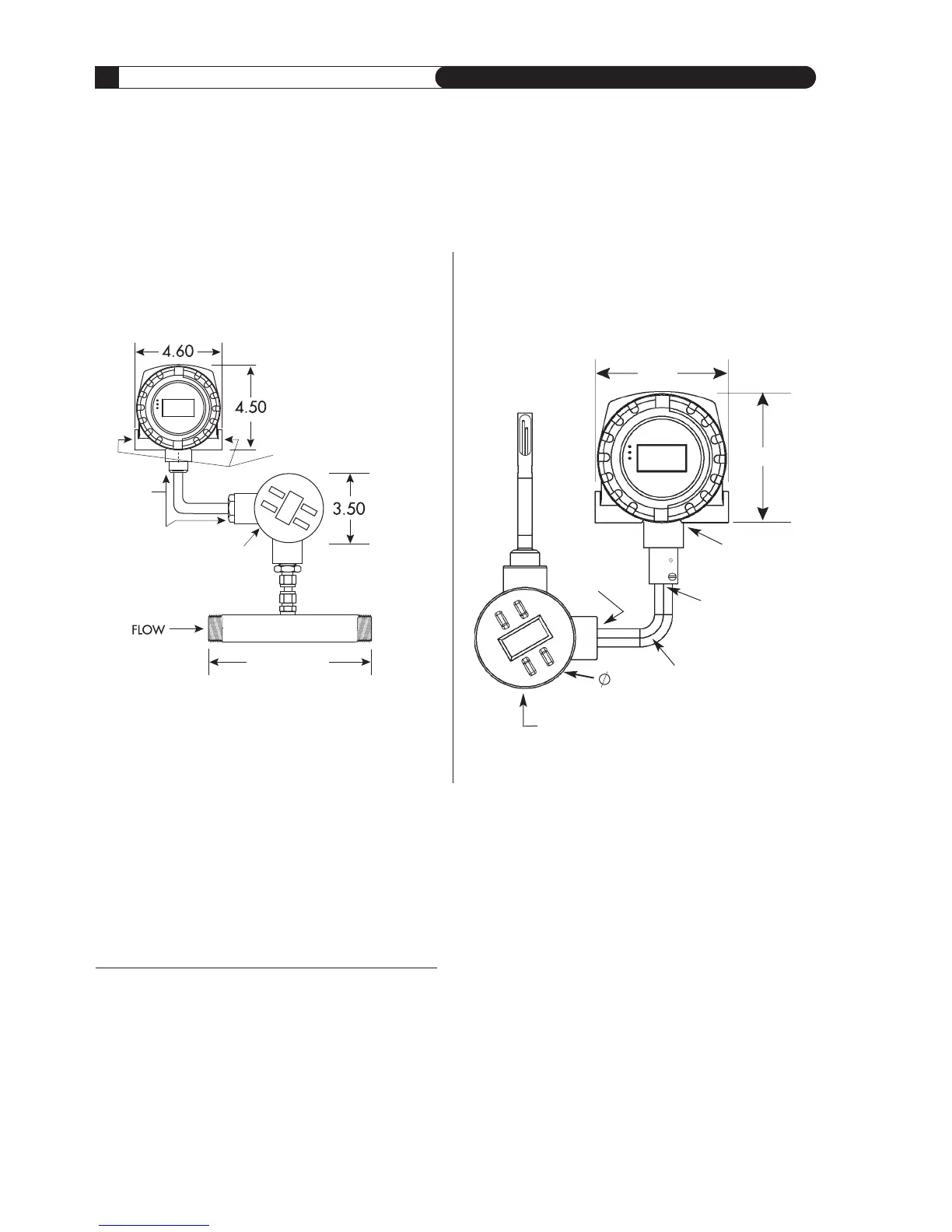

SRP Series Remote Style Mass Flow Meters
INSERTION STYLE
2
150#, 300#, or 600# flanged mounting is optionally avail-
able. Available probe lengths (C) are 6", 12", 15", 18", 24",
30", 36" or 48".
IN-LINE STYLE
1,3,4
150#, 300#, or 600# flanged ends are optionally available.
(150# flange recommended on 3" and 4" Flow Bodies)
1 NPT Fittings standard
2 Flanged Mounting available for high pressure operation
3 Flow Conditioning built in to Flow Meter Pipe Sizes 1/2" and up. Contact Sage for optional
1/4" tube flow body.
4 See Chart on page 35.
5 Junction Box has the following certifications: Class I, Groups B,C,D; Class II, Groups E,F,G; Class III;
4X, 7BCD, 9EFG; FM Standard 3615; UL Standard 1203; CSA Standard C22.2 No. 30; and NEMA
Compliance
4.60
4.50
3.50
Junction Box is Explosion
Proof, Class 1, Div. 1 & 2,
Group B, C, D
(
NO ELECTRONICS)
3/4" NPT
for Remote
Cable
1/2" NPT User
Entry for Wiring
3/4" NPT for
Remote Cable
3/4" NPT for
Remote Cable
1/2" CORD GRIP
SUPPLIED ON
ELECTRONICS
END
25' CABLE SUPPLIED
Can be shortened or
lengthened in the field
by up to 1000 ft. without
affecting calibration.
Junction Box is
Explosion Proof,
Class 1, Division 1 & 2,
Group B, C, D
(NO ELECTRONICS)
5
CAUTION: Do not rotate the Junction Box of In-Line Style
Meters relative to the Flow Tube, or the calibration may be
effected since the sensors may become misaligned.
