Sage SIP - Terminal Hookup Prime Remote (Series SRP)

O p e r a t i o n s a n d I n s t r u c t i o n M a n u a l
21
S A G E M E T E R I N G , I N C .
REV. 16-SIP/SRP

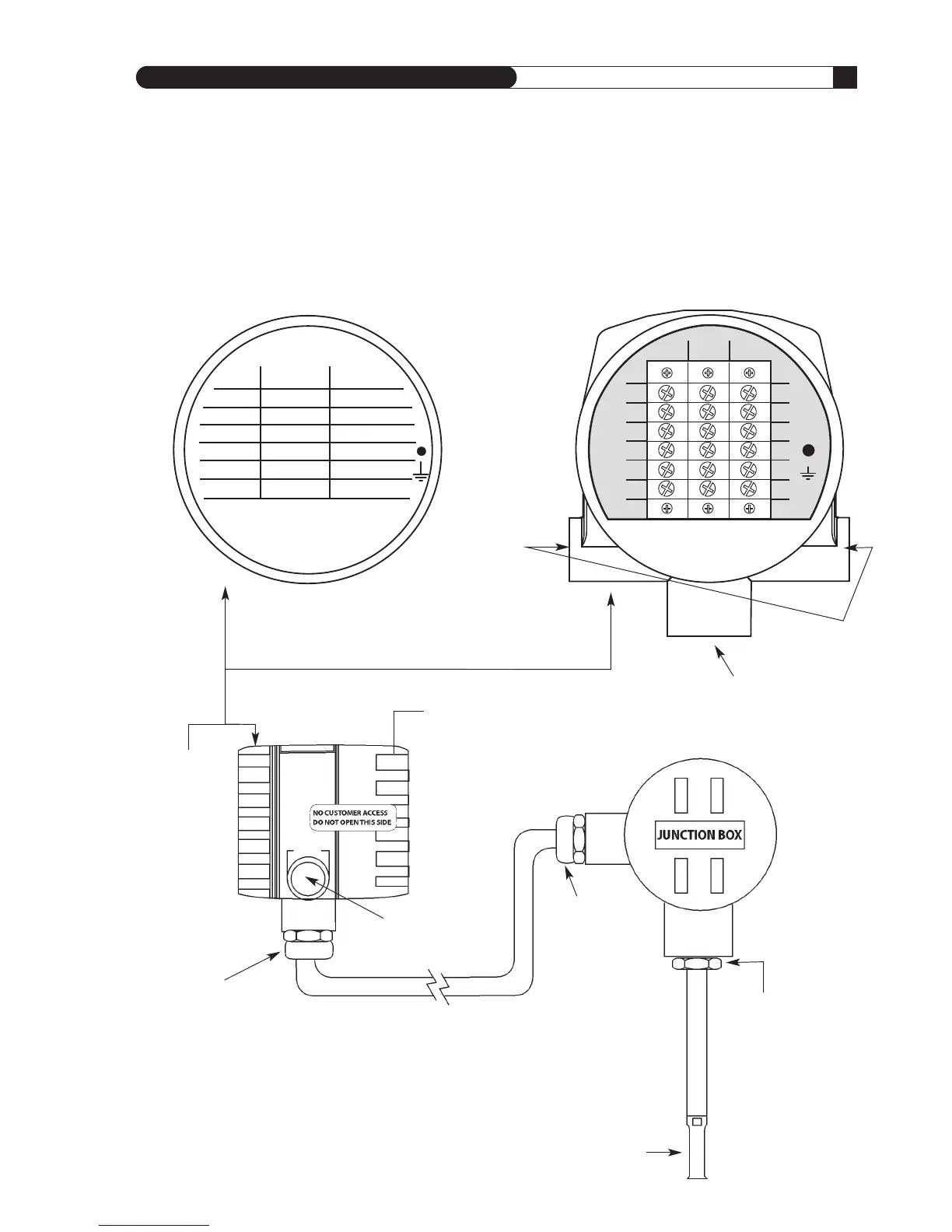

Prime Remote (Series SRP)
SEE “WIRING” ON PAGE 10 FOR INSTRUCTIONS ON HOW TO REMOVE REAR LID;
SEE FOLLOWING PAGES FOR TERMINAL HOOKUP
REMOTE
1 RED AC1 COM 1
2
GREEN AC2 B + 2
3 BLUE SPARE A – 3
4
WHITE 4-20mA PWR 24 VDC PULSE 4
5
BLACK VDC IN 4-20mA 5
6
ORANGE VDC GND VDC GND 6
A B C
1
2
3
4
5
6
1
2
3
4
5
6
A B C
INSIDE COVER VIEW INSIDE BODY VIEW
DISPLAY SIDE
1/2" NPT
User Entry
for Wiring
3/4" NPT for
Remote Cable
(ON REMOTE STYLE SRP)
3/4" NPT for
Remote Cable
3/4" NPT for
Probe Support
Junction Box
contains no
electronics,
just terminals
1/2" NPT
User Entry for Wiring
(ONE ON EACH SIDE)
FLOW
TERMINAL
BLOCK SIDE
3/4" NPT for
Remote Cable
