Sailor 6004 - Key Features and Functions; System Configuration Example

Chapter 1: Introduction
2 The SAILOR 6004 Control Panel
1.1.2 Key features and functions
The Control Panel has the following key features:
• 7 inch display with touch-screen functionality
• Dual LAN (2 Ethernet connectors)
• ThraneLINK compatible
• Handling of multiple applications
• Amplifier for external speaker, e.g. SAILOR 6270 Loudspeaker
• Rear mounted USB (x2, e.g. for external keyboard)
• Connector for SAILOR 6201 Handset or similar
1.1.3 System configuration example

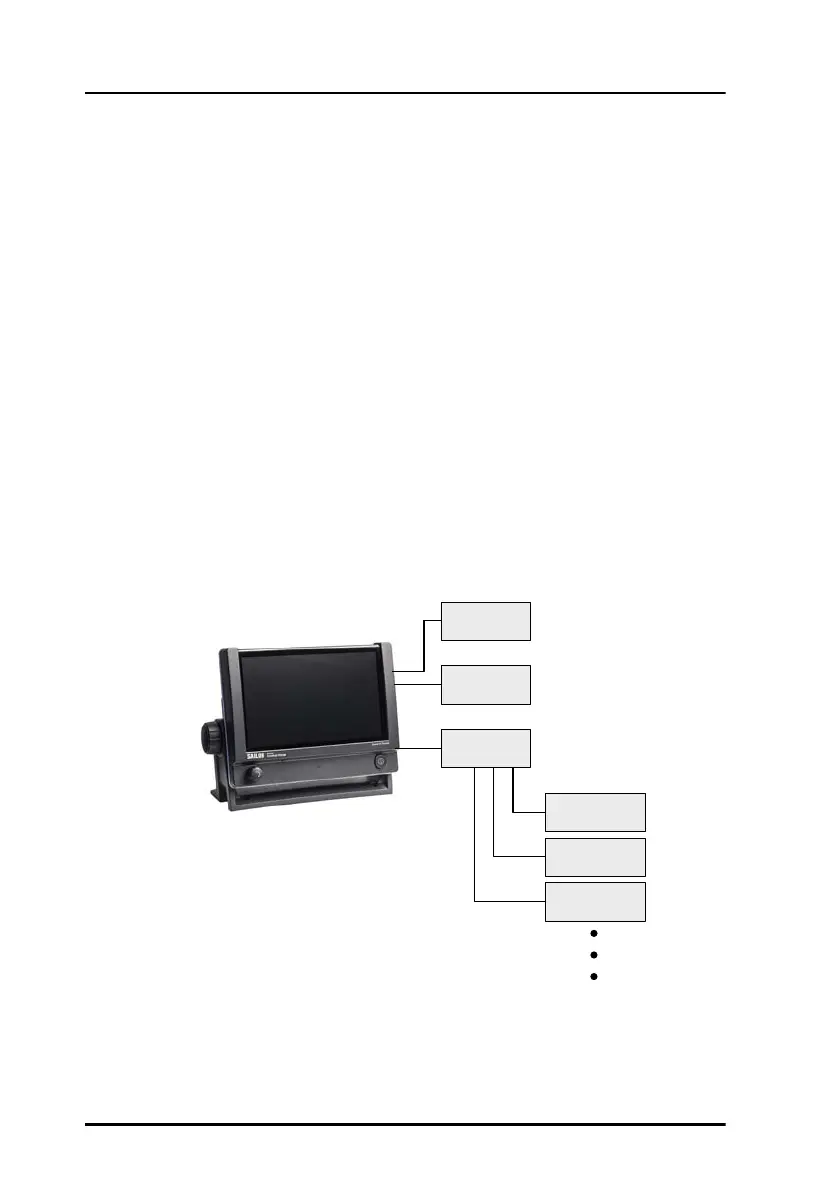

The following drawing shows an example of how to connect other systems to a
SAILOR 6004 Control Panel.
86%KRVW
(WKHUQHW
VZLWFK
6$,/25[
$,6
6$,/25
6DWHOOLWH79
6$,/25
1DYWH[5HFHLYHU
6$,/25
+DQGVHW
