Chapter 2: Installation
10 Installing the Control Panel

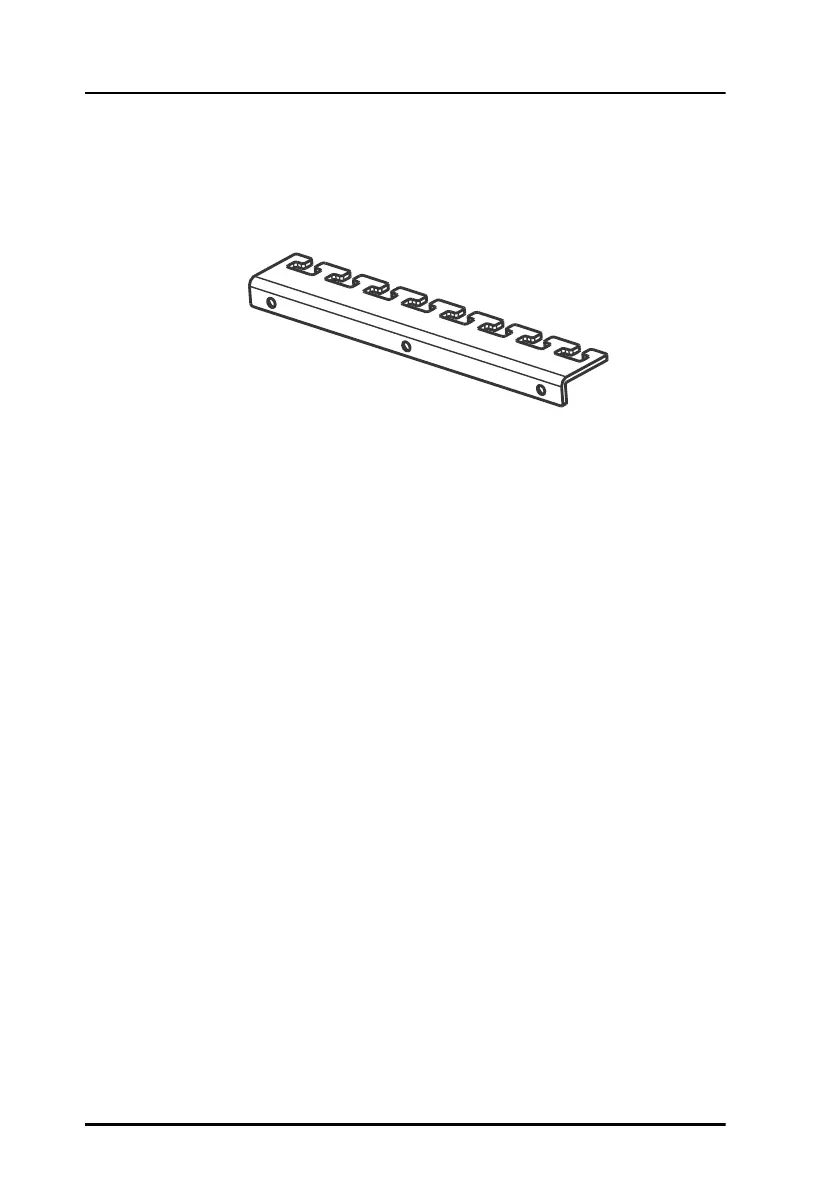

2.2.3 Mounting the cable relief bracket
A cable relief bracket is included in the delivery. You can fasten it to the rear
panel.
See the previous section for an example how to mount the cable relief bracket.
ControlPanel.book Page 10 Thursday, January 3, 2013 12:28 PM
