Chapter 3: Connectors & controls
16 Connectors
3.1.5 LAN connector
There are 2 LAN (10/100 Mbit/s Ethernet) connectors on the rear panel of the
Control Panel, used for communication with connected equipment that is
designed to be operated by the Control Panel.

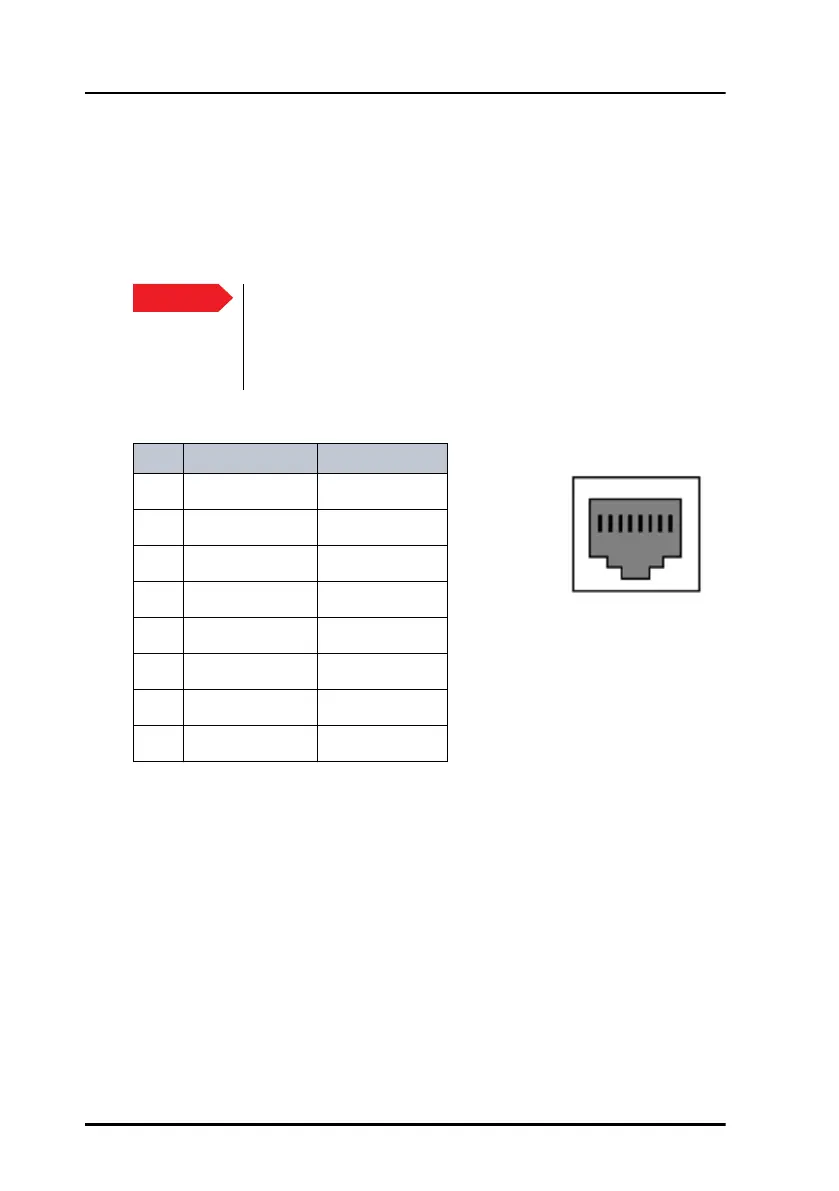

The figure and table below show the connector outline and pin assignments.
Important
For GMDSS installations: Only connect units that are part of the
system. For safety and compliance reasons, the Ethernet
interface is restricted to internal communication in an isolated
system.
Pin Pin function Wire colour
1 Tx+ White/Orange
2 Tx- Orange
3 Rx+ White/Green
4 Not connected Blue
5 Not connected White/Blue
6 Rx- Green
7 Not connected White/Brown
8 Not connected Brown
RJ-45 female
1 2 3 4 5 6 7 8
