Sailor 6004 - Auxiliary Connector (AUX); Accessories Connector (ACC)

Chapter 3: Connectors & controls
12 Connectors

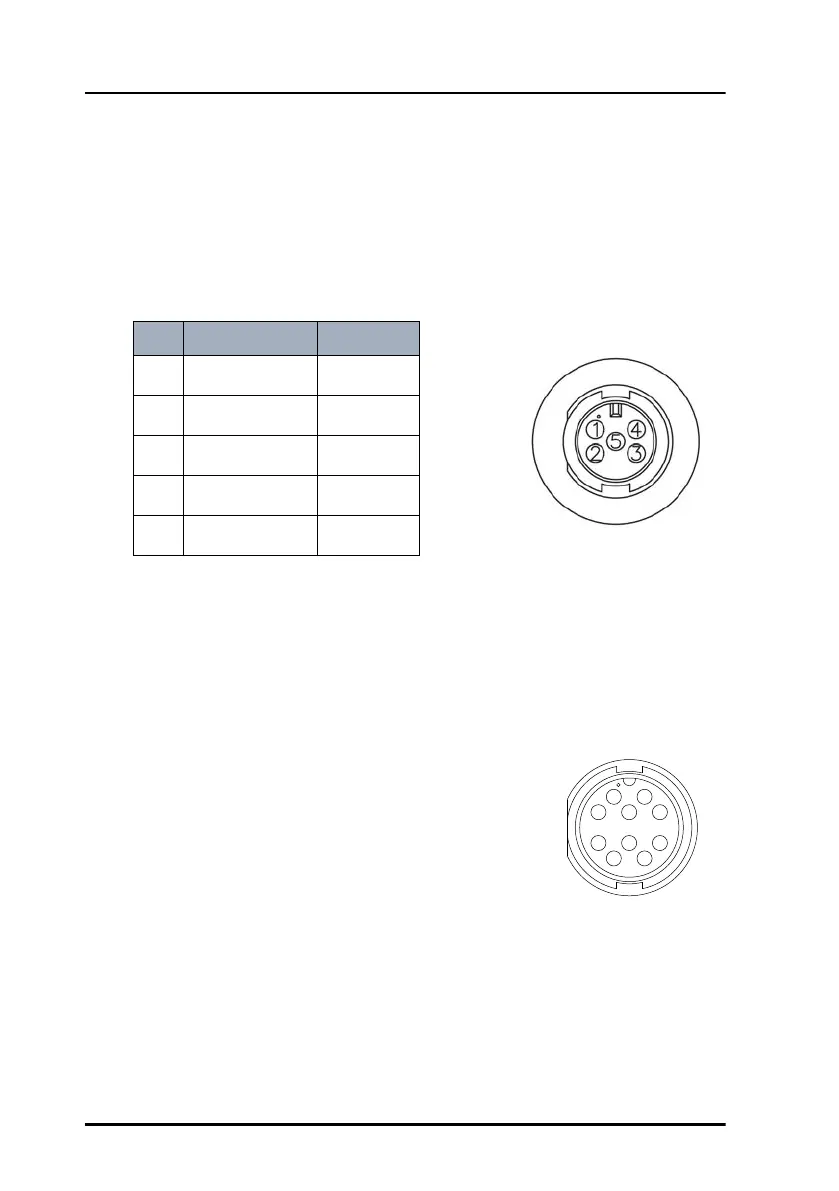

3.1.1 Auxiliary connector (AUX)
Pin 1 & 2 are for output to an external 8 Ohm loudspeaker, e.g. a SAILOR 6270
Loudspeaker. The internal audio amplifier can deliver up to 6 W.
Pin 4 & 5 are for alarm output. Both outputs are open collector (OC) and can
sink up to 100 mA.
3.1.2 Accessories connector (ACC)
Use the connector marked ACC to connect a SAILOR 6201 Handset or a
SAILOR 6202 Handmicrophone.
Connector type: Circular connector, 10 pin, male.
Connection cable with plug, part number 406209-
941 or a SAILOR 6209 Connection Box.
Pin Description Wire color
1 Speaker N Green
2 Speaker P Brown
3 GND Red
4 Alarm 1 (OC) White
5 Alarm 2 (OC) Yellow
Mini Panel lock, 5 pin male
1
2
3
4
10
5
6
7
8
9
Panel lock, 10 pin male
